RFM900 Series micro flowcell UNF 28

  • SKU: 19-91
Request a Quote
  • Description

    Flowcell accessories from Bellingham + Stanley provide your refractometer processes with a means of semi or fully automated sample application and prism washing, creating more efficient workflows for your laboratory or factory.

    • Semi and fully automated means of sample application and removal
    • Provides inline multi-instrument configuration within flavours, fragrances, essences & more
    • Auto-sampler connectivity
    • Eliminates evaporation - minimises risk of exposure to volatile samples

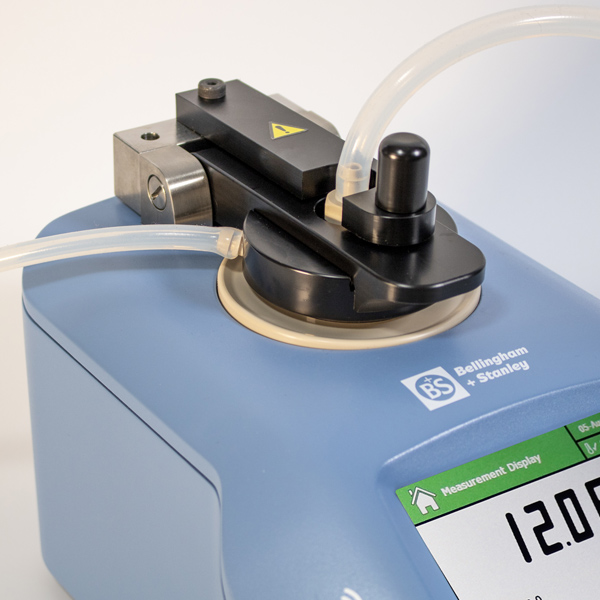

    Micro flowcell accessory for RFM900-T Series digital Refractometers, from Bellingham + Stanley.

    Micro flowcells are used to transfer volatile, or limited volume, low viscosity liquids as part of a single or multiple instrument analysis, often incorporating an autosampler and pump within the beverage, brewing, flavours, fragrance or essential oil industries.

    This flowcell accessory is designed for the RFM900-T Series digital benchtop refractometers.

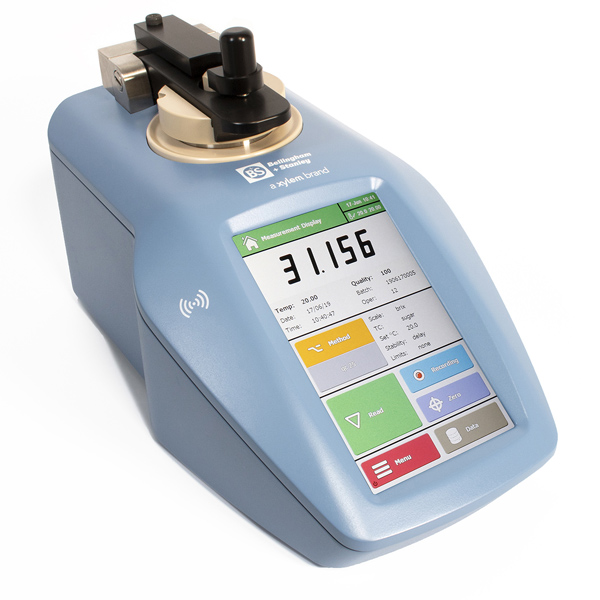

    The RFM900 Series refractometers from Bellingham + Stanley are a line of high precision Peltier temperature controlled benchtop refractometers. Featuring wide beam optics and a 7” touchscreen user interface.

    Within the pharmaceutical industry or where aromatic and corrosive samples are prevalent, Bellingham + Stanley recommends RFM900-T Series Refractometers in conjunction with Flowcell Accessories. The RFM900-T with Flowcell is built with a PEEK spill barrier that surrounds the shallow, easy-clean stainless steel prism dish. A Chemraz® gasket seals the prism, chosen due to its almost impermeable nature to most chemicals.

    Thanks to secure onboard software offering encrypted data logs, audit trails, and the ability to be compliant without the need of an intermediate PC, RFM900-T Series refractometers are ideal instruments in order to comply with FDA Regulation 21 CFR Part 11.

    To learn more about Bellingham + Stanley's flow-through refractometry solutions click here.

  • Specifications

    Description



    Micro

    Macro

    Cell Volume (chamber only)

    ml

    <0.4

    <1.0

    Cell Volume (including nozzle adaptors)

    ml

    1.0

    <2.0

    Flushing Volume

    ml

    -

    -

    Sample Inlet Tubing Bore

    mm

    2

    4

    Sample Inlet/Waste Nozzle Outer Diameter

    mm

    3

    6

    Sample Waste Tubing Bore

    mm

    2

    6

    Sample Pressure (max.)

    bar

    0.5

    0.5

    Cell Material

    PEEK
    (FDA/USP Class VI compliant)

    Sealing Ring

    Chemraz®
    (FDA/USP Class VI compliant)

    Order Codes

    Type

    Code

    Description

    Micro

    19-91

    RFM900 micro flowcell, UNF 28/nozzle

    Macro

    19-92

    RFM900 macro flowcell, UNF 28/nozzle

    Certificate

    75-600

    Material Certificate
    for wetted components

    Spare Parts

    Code

    Description

    19-140

    UNF 28 to micro serrated nozzle, PEEK, pack of 2

    19-141

    UNF 28 to macro serrated nozzle, PEEK, pack of 2

    19-144

    RFM900 Mirco Flowcell Gasket, Chemraz®, pack of 1

    19-145

    RFM900 Macro Flowcell Gasket, Chemraz®, pack of 1

    PEEK/Chemraz® flowcell and spare part materiel are FDA/USP Class VI compliant.  Chemraz® is a registered trademark of Greene, Tweed and Co.
