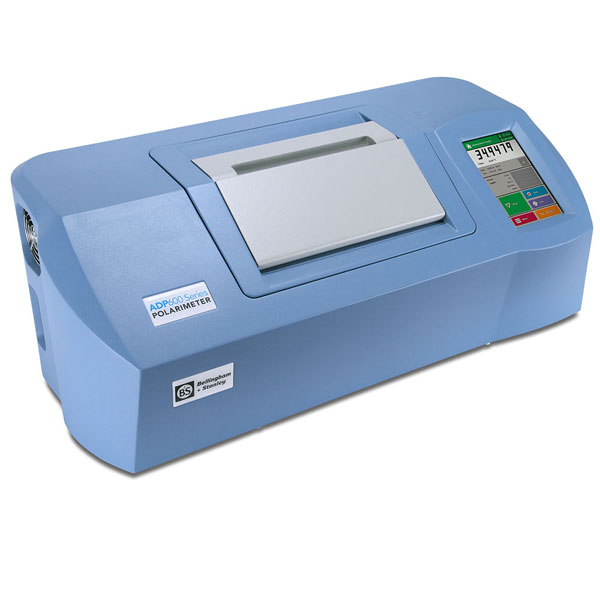

Bellingham + Stanley Single/Dual/Multiple Wavelength Polarimeter ADP600 Series with Temperature Control

Bellingham + Stanley Single/Dual/Multiple Wavelength Polarimeter ADP600 Series with Temperature Control

  • SKU: 37-67
Request a Quote
  • Description

    Bellingham + Stanley Single/Dual/Multiple Wavelength Polarimeter ADP600 Series with temperature control are designed for measuring optical rotation. They are especially suited for use by scientists wishing to measure chiral compounds and other optically active substances in the chemical, pharmaceutical and food sectors as well as for use in academic research.

    • XPC Peltier temperature controlled
    • Four decimal place resolution
    • Conforms to USP/EP/BP/JP
    • RFID user clearance
    • High Definition touchscreen

    Digital Polarimeters with Temperature Control

    The ADP600 Series of polarimeters are available as multiple, dual, or single wavelength models, and with the ability to measure optical rotation to 4 decimal places across the visible spectrum as well as in the highly sensitive ultra-violet region. The series is split between 325, 365, 405, 436, 546, 589 & 633nm wavelengths depending on the model. Other wavelengths available on request, subject to interference filter availability.

    The line of digital polarimeters features Xylem’s XPC temperature control technology. XPC technology replaces air temperature systems seen in previous models, providing for faster temperature stabilisation that is more representative of the sample than the air surrounding it.

    The wide range of measuring capabilities, excellent temperature stability and high precision makes the ADP600 Series an excellent choice for laboratories within chemical, pharmaceutical and food sectors.

    ADP600 Series Polarimeters accept standard size (30mm collar) XPC or special low volume leur taper polarimeter tubes facilitating measurement across optical path lengths between 5 and 200mm with tube diameters from 5 to 8mm being readable. Optional lids may be easily fitted to the ADP600 Series Polarimeters, facilitating sample tube entry and exit.

    Polarimeters in line with Pharmacopoeia

    The ADP600 Series Polarimeters have two pre-set operating temperatures being 20 and 25 °C in accordance with European and United States Pharmacopoeia respectively and other user temperatures between 20 and 30°C may be configured via the instrument user interface.

    Peltier technology is intelligently applied to the sample tube of the new polarimeters so that measurement can be accurately made without the need of an external device such as a waterbath to control sample temperature.

    Simple to use METHOD system

    Integral to operational simplicity is the full colour, high definition, touchscreen graphical user interface. A menu structure featuring a METHODS system makes for one-touch calibration and instrument configuration; especially where the specific rotation of a number of samples is being analysed over a wide range of concentrations, path lengths, temperatures and wavelengths. A “Mean Method” is also available, allowing a number of readings to be taken from a production batch with the mean being calculated and recorded once the experiment has been completed. The Mean Method is ideal for pharmaceutical applications where compliance with pharmacopoeia is required.

    RFID user clearance is standard in the ADP600 Series Polarimeters. The radio frequency technology first appeared in ADP400 Series Polarimeters, allowing users to sign in, personalise settings and help facilitate auditability all at the tap of a small fob key.

    The ADP600 Series Polarimeters feature a secure “print to PDF” function that may be configured to operate in secure environments in accordance with FDA regulation 21 CFR Part 11 and importantly, the ADP600 Series polarimeters meet all of the requirements, including wavelength directives of British, United States, European and Japanese Pharmacopoeia.

    You can learn more about the ADP600 Series' ability to comply with 21 CFR Part 11 in the following video.

  • Specifications
    Specifications - ADP670 Polarimeter
    Wavelength(s) 325, 365, 405, 436, 546, 589 & 633nm
    Range (°A) ± 89 (-355 to +355 via Method selection)
    Resolution (°A) 0.0001
    Accuracy (°A) ± 0.003 (@546, 589 & 633nm) / ± 0.005 (@325, 365, 405 & 436nm)
    Scales/Methods Primary:  Angular degrees (°A)
    Other:  I.S.S (z), Specific Rotation, Concentration (g/cm3), Purity, % Invert sucrose, % change (Inversion A-B) and Specific Rotation (concentration, moisture content, length)
    Batch MEAN Method for Pharmacopoeia and GLP.
    Optical Density Range 0.0 to 3.0 OD
    Temperature Range 15-35°C
    Temperature Control  Peltier (Xylem's patented XPC Technology)
    Temperature Accuracy  ± 0.2°C (0.5°C for faster response time in accordance with pharmacopeia)
    Temperature Compensation None, sugar, quartz, user defined
    Temperature Set Points 20 & 25 °C (variable between 20-30 °C via Method)
    Reading Time 15-60 seconds @ 546/589nm and 20/20°C (instrument/sample)
    Tube Types XPC (stainless steel), Low Volume, Flow-through, PEEK (Glass)*
    Tube Length 5-200mm
    Tube Diameter 5-8mm
    User Interface  High Definition 7.4” touch-screen colour display
    Light Source UV/Vis lamp (6V, 2A >1000hrs) and narrow band pass filter(s)
    Interfaces  3 x USB (A), 1 x Ethernet, 1 x RS232
    Power Supply  100-250V~, 50-60 Hz. <2A
