The IDS system: Secure - Fast - Flexible

What does IDS mean?


IDS Logo

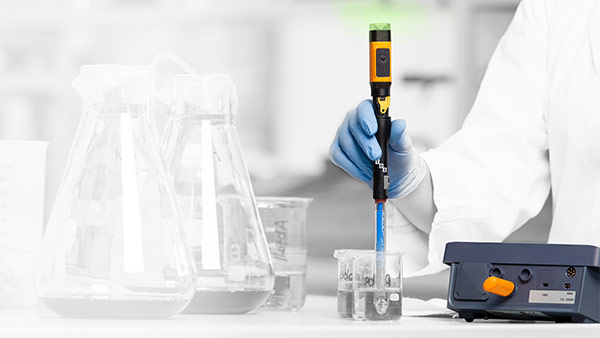

IDS stands for “Intelligent Digital Sensors”. Our IDS sensors do not transmit the measured analog values to a measuring device, but convert the analog signals directly in the sensor into digital values. This is done by a miniaturized measuring device located in the sensor head. Direct conversion in the sensor prevents interference and guarantees fail-safe data transmission. The subsequent digital transmission of the measured values means that cables with a length of up to 100 meters are possible. Our IDS sensors are available either with a fixed cable or with a plug-in head. Either various cables can be connected to an IDS plug-in head electrode or radio modules, which enable wireless measurement. This allows you to eliminate interfering cables on the measuring table or to measure freely under fume cupboards. The range of the wireless modules is up to 10 meters and they offer a secure 1:1 connection via Bluetooth.

In addition to the measured data, the sensor name, sensor serial number, calibration status and additional data such as cell constants and temperature compensation (for conductivity cells) and correction data for the membrane (for optical oxygen sensors) are transmitted to the measuring device and GxP-compliant data acquisition is fully supported.

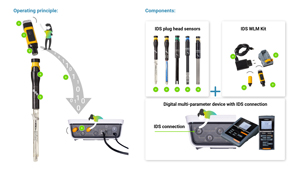

How can I measure wireless?


Operating principle:

Components:


Digital IDS products


Wired IDS sensors

Wired IDS sensors

Our digital IDS sensors convert the analog measured values directly in the sensor into digital values. Wired IDS sensors are connected directly to a digital measuring device by cable. A wide range of wired IDS sensors are available for all parameters



All wired IDS sensors

Plug-head IDS sensors

Plug-head IDS sensors

Our digital IDS sensors convert the analog measured values directly in the sensor into digital values. IDS sensors with plug-in head can be connected to a digital measuring device either with a plug-in cable or with a radio module. A wide range of IDS sensors with plug-in head are available for all parameters.


All plug-head IDS sensors

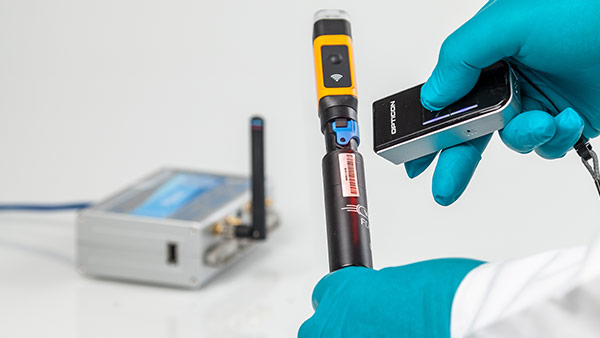

IDS wireless modules

IDS wireless modules

Our wireless modules for wireless measurement consist of a module for the plug-in head sensor, a module for the measuring device, a charging module and a USB power supply unit. The charging modules can be conveniently connected to each other and attached to the wall.



To our wireless modules

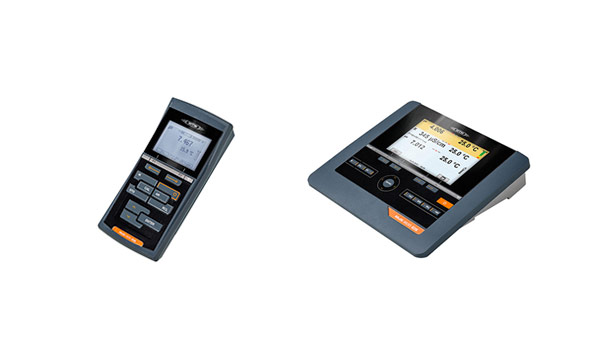

IDS measuring devices

IDS measuring devices

As parameter-specific data is stored in the IDS sensor head, there is only one multi-device, as the sensor passes on all the data relevant to the parameter when communicating with the device. The measuring device thus becomes a multi-parameter device that can manage up to three sensors, depending on the number of input channels.

All IDS devices



The new solution for your drinking water monitoring

A combination of proven technology
IQ Sensor Net + IDS (Intelligent Digital Sensors) = WTW Drinking Water Panel

  • Digital communication
  • Modern & clear panel design
  • Low flow rate


Learn more
