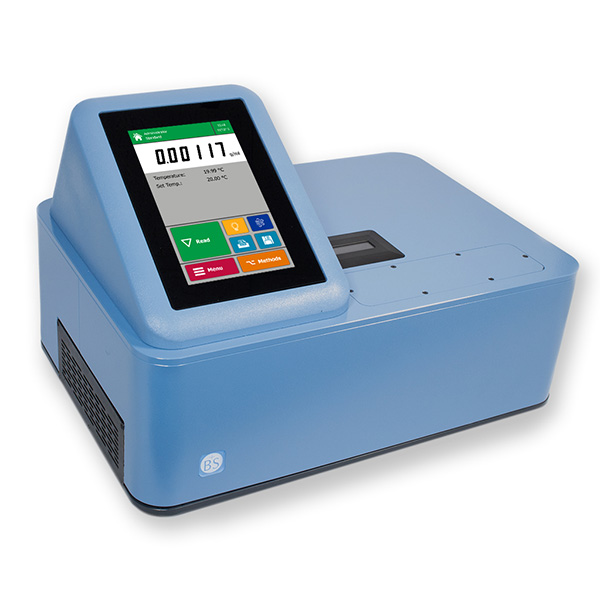

Bellingham + Stanley Density Meter DSG Series with Temperature Control

Bellingham + Stanley Density Meter DSG Series with Temperature Control

  • SKU: 43-40
Request a Quote
  • Description

    The DSG Density Meter Series from Bellingham + Stanley answers a call from customers looking for highly reliable, premium quality instruments to complete a suite of instrumentation from a brand they trust. DSG Series density meters from Bellingham + Stanley are available in 2 unique models offering great flexibility as well as ease of use.

    • FDA 21 CFR Part 11 compatible
    • Peltier Temperature Control
    • Excellent reproducibility
    • 20 second read time
    • Strong air pump for thorough cleaning
    • Standard Leur connectors
    • METHODS based
    • Easy to clean

    Simple to use. Easy to clean. Accurate Results.

    DSG Series Density Meters from Bellingham + Stanley are available in 2 models, offering users the choice to hone in the precision, accuracy, and resolution depending on application.

    Having an accurate density meter that produces reliable results is only part of the equation. Your instrumentation also needs to be simple to use, easy to clean and offer superior traceability. The DSG Series features a large and vibrant capacitive touchscreen, and intuitive GUI from the makers of ADP Polarimeters and RFM Refractometers. This colour coded interface guides users through common tasks and administrative setup procedures with ease.

    A powerful internal air pump and integrated desiccant means the DSG Series has no need for external devices for venting after cleaning, so your precious bench space isn’t taken up by needless peripherals.

    Peltier Temperature Control and precision ventilation ports give rapid temperature stabilisation, whilst synergy between hardware and software give accurate results in as little as 15 seconds.

    Certified Reference Materials for Density Meters

    Certified Reference Fluid used for verifying the performance of digital density meters such as the DSG Series Density Meter from Bellingham + Stanley. For more information click here.

    We provide 3 years warranty

  • Specifications

    Physical Specifications

    Measuring System

    Oscillating U-tube with reference oscillator for enhanced drift protection

    Temperature Control

    Intelligent Peltier temperature control system

    Wetted Parts

    Borosilicate glass, PTFE


    0 – 10 bar (0 – 145 PSI)

    Sample Size

    Approx. 2ml

    Air Drying

    Integrated air pump and humidity sensor

    User Interface

    Full colour, 7”, capacitive touchscreen with optional mouse & keyboard support


    100,000+ Readings (4GB expandable memory)


    Serial Interface, USB, LAN

    Application Compliance

    European & American Pharmacopoeia & various ASTM & ISO standards. Electronic Signatures


    90-265 VAC; 50/60 Hz; 150 VA max


    < 85% not condensing

    Ambient Temp

    Temperature 10 °C — 35 °C


    8.8kg + 0.3kg dry air cartridge  (approximate)


    430 x 290 x 300mm (WxDxH)


    Conformity or optional Certificate of Calibration on request

    Measurement Specifications


    0 – 3 g/cm3


    Density (g/cm3), Specific Gravity, Sucrose %w/w (°Brix), Ethanol (%w/w, %v/v), API, user request

    Reading Type

    Single shot (discreet)

    Reading Time

    15 seconds (not including temperature stabilization time)


    0.0001 g/cm3


    0.0001 g/cm3

    Precision (Reproducibility)

    0.0001 g/cm3

    Temperature Accuracy

    ±0.05 °C

    Temp. Reproducibility

    ±0.02 °C

    Temperature Range

    10 – 95 °C

    Temperature Resolution

    ±0.01 °C

    Temp. Stabilisation Time

    Smart stabilisation based on sample detected
