IQ SENSOR NET LogoOn this page we collect and reference all information that will help you

The System

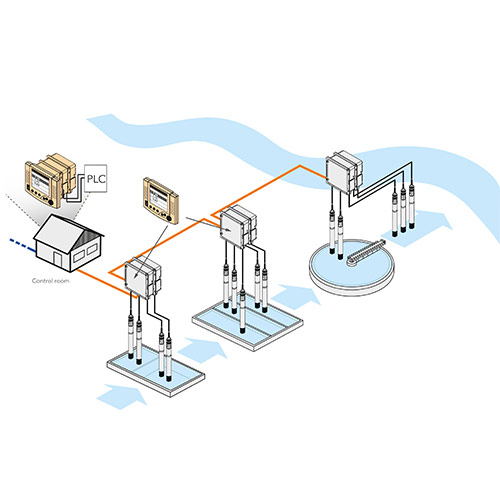

IQ Sensor Network: System 2020 3G

IQ Sensor Network: System 2020 3G

  • For up to 20 digital IQ sensors in any order
  • Measuring network for large plants, BackUp controller function for higher operational safety
  • Ethernet/LAN interface and integrated webserver for easy network connection
  • Fast and easy software update and saving of logbook data, measured values and configurations for additional safety on a USB stick
  • Up to 3 portable and clear displays even in direct sun light


Download Brochure"System 2020 3G"

Outstanding among the Compact: System 282/284

Outstanding among the Compact: System 282/284

  • Multi-channel controller for up to 4 IQ sensors provides easy and low-cost expansion
  • Up to 20 parameters can be visualized at the same time
  • Perfectly suited to replace or add a single measuring point
  • Simple Data transfer and download with USB stick at every controller
  • Optional: Ethernet and RS 485 interface for network connection and fieldbus communication


Download Brochure "System 282/284"

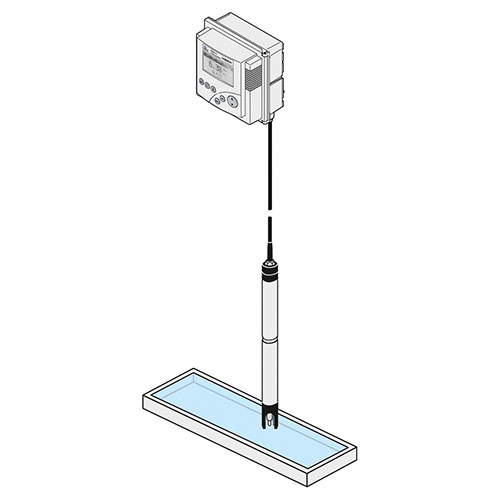

The Single Parameter Measuring Point: System 281

The Single Parameter Measuring Point: System 281

  • Low-cost entrance into the digital measuring technique
  • For the parameters pH/ORP, D.O., Turb, Cond, TS or Sludge Level
  • Stable, robust and reliable measuring technique


Download Flyer "System 281"



Comparison of the IQ Sensor Net systems

To support you, we offer a tabular comparison overview of our systems. This overview is currently available as a PDF document.

Download

With the modular IQ Sensor Net of the brand WTW, Xylem has set standards in the field of continuous on-line measurement. Meanwhile, Xylem can look back on a 20-year success history with ten thousands of systems and sensors sold. The development of the system has progressed steadily. The list of available parameter measured and the technologies for communication continue to grow. Based on instrument and sensor technology that has been field-proven many times over, IQ Sensor Net offers an impressive level of performance and flexibility that is unique in this form.

The system can be optimally adapted to any conceivable measurement task, even under special on-site conditions. The IQ Sensor Net communication system allows the easy integration of multiple measurement locations. This results in a significant reduction in costs while maintaining full functionality.

View all IQ Sensor Net products

Sensors and Analyzers for many measurement Parameters

Oxygen

Oxygen

Dissolved oxygen is determined digitally and – depending on the requirements – optically or electrochemically

View products

pH/ORP

pH/ORP

The pH value – one of the most common measurement parameters – and the redox potential are determined digitally

View products

Conductivity

Conductivity

The electrical conductivity is reliably determined with digital measuring cells in many areas of application

View products

Turbidity/Suspended Solids

Turbidity/Suspended Solids

Both the turbidity and the solids content are determined digitally using optical measuring methods

View products

Nitrogen

Nitrogen

The nutrient parameters ammonium, nitrate and nitrite are measured with ISE, spectral sensors or wet chemical analyzers – we have the right solution for every application

View products

Carbon

Carbon

The organic load is spectrally determined and monitored using the parameters COD, BOD, TOC, DOC, SAC

View products

Phosphate

Phosphate

The concentration of phosphate is reliably monitored with wet chemical analyzers

View products

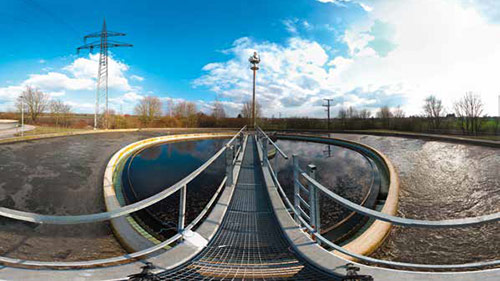

Sludge level

Sludge level

The boundary between settled sludge to the projecting turbid or clear water is determined digitally and optically

View products



Color

Sensors to continuously monitor color at wastewater treatment plant outlet and in surface waters

View products



Planning aids for plant constructors and engineering offices

Product overview, technical data, tender texts etc.

To the page

SOFTWARE AND UPDATES FOR THE IQ Sensor Net

Download the latest version of software for the multi-parameter measuring system IQ Sensor Net:Xylem Analytics: IQ SENSOR NET Software Update (Logo)

Softwareupdate IQ Sensor Net "Update Pack (L1)", V2.26

Version history – innovations:

  • V2.26 (28.07.2023)
    • Alyza: Monitoring waste collector
    • Dutch language added for MIQ/C6, MIQ/CR3, MIQ/R6, MIQ/CHV
    • Dutch language added for DIQ/S 28X, MIQ/MC3, MIQ/TC 20203G, MIQ/MC2, MIQ/TC 2020 XT
  • V2.25 (28.06.2023)
    • Dutch language added for FDO® 700 IQ, IFL 700 IQ, spectral sensors
  • V2.24 Alyza IQ Update (20.06.2023)
    • MPV history
    • Software history
    • Extending calibration history from 30 to 180 entries
    • Dutch language added
  • V2.23
    • Minor general improvements for ISE sensors (update is needed for the controller/terminal software,
      new version: 3.97)
  • V2.22
    • Freeze measured value output at fieldbus level (during maintenance and calibration)
    • Minor general improvements
  •  V2.21
    • Alyza IQ - Drain single ChemBag tube
    • Alyza IQ - Optimized cooling unit
    • IQ SENSOR NET - MIQ/CR3 and MIQ/C6 for System 281
    • Spectral sensors - Update relevant for production
    • Minor general improvements
  • V2.20
    • IQ SENSOR NET - Troubleshooting of Profinet communication in the controller software 3.94
  •  V2.19
    • Alyza IQ – Manual emptying can be stored in the system
    • Alyza IQ – Fast access to last 50 actions
  •  V2.18
    • Minor general improvements
    • Spectral sensor – Text changes or additions for Swedish, English, Portuguese, Czech, Hungarian, Japanese and Korean
  • V2.17
    • Minor general improvements for cooling unit Alyza
    • DIQ/S 281 – Extension by ViSolid® 700 IQ (total suspended solids)
    • DIQ/S 281 – Extension by IFL 700 IQ (sludge level)
  •  V2.16
    • Continuous tightness control of MPV
    • Dosing control after filling
    • Additional text during download of service files
    • Minor general improvements

Download ZIP file

Files for PLC

EtherNet/IPTM EDS file, Version 1.2

File is needed on PLC to detect the IQ Sensor Net module MIQ/MC3 and of System 282/284

Download EDS file

PROFIBUS GSD file (for current IQSN Software), Version 1.24

File is needed on PLC to detect the IQ Sensor Net with software version ≥3.50:

  • DIQ/S 282-PR(/24V)
  • DIQ/S 284-PR(/24V)
  • MIQ/MC2-PR
  • MIQ/MC3-PR
  • MIQ/2-PR
  • MIQ/3-PR
  • DIQ/S 182-PR(/24V)
  • DIQ/S 182 XT-4-PR(/24V)

Download GSD file

PROFIBUS GSD file (for older IQSN software and controller), Version 1.22

File is needed on PLC to detect IQ Sensor Net with software version <3.50:

  • MIQ/MC2-PR
  • MIQ/2-PR
  • DIQ/S 182-PR
  • DIQ/S 182 XT-4-PR

as well as for the older controller modules:

  • MIQ/MC-(A)-PR
  • MIQ/(-A)-PR

Download GSD file

PROFINET GSDML file, version 2.1
File is needed on PLC to detect the IQ Sensor Net System 282/284 and the MIQ/MC3.
Required until PNIO version 2.0

Download GSDML file, version 2.1

PROFINET GSDML file, version 2.41
File is needed on PLC to detect the IQ Sensor Net System 282/284 and the MIQ/MC3.
Required until PNIO version 2.2

Download GSDML file, version 2.41

PC software for remote control

IQ Software Pack Connect, Version 1.00

For network connection. Only for the MIQ/MC2 controller.

Includes the following programs for remote access to the IQ Sensor Net:

  • IQS PC Terminal Connect for remote access to the IQ Sensor Net
  • IQS Datalog Transfer Connect for data transfer from IQ Sensor Net to the PC
  • IQS ConvigSafeLoad Connect to backup and reverse backup the configuration data of the IQ Sensor Net

Download ZIP file







REMOTE ACCESS TO THE IQ Sensor Net

When using MIQ/MC2, MIQ/MC3 or the System 282/284 (with Ethernet interface), remote access is available via our integrated web server IQ Web Connect. The remote access provides:

  • total control of the IQ Sensor Net
  • any time and worldwide
  • troubleshooting and remote assistance – without on-site visit
  • access protected by password
  • no licence, no extra cost

To connect the IQ Sensor Net to a local network or the internet, please reffer to the respective manuals, chapter 6:
