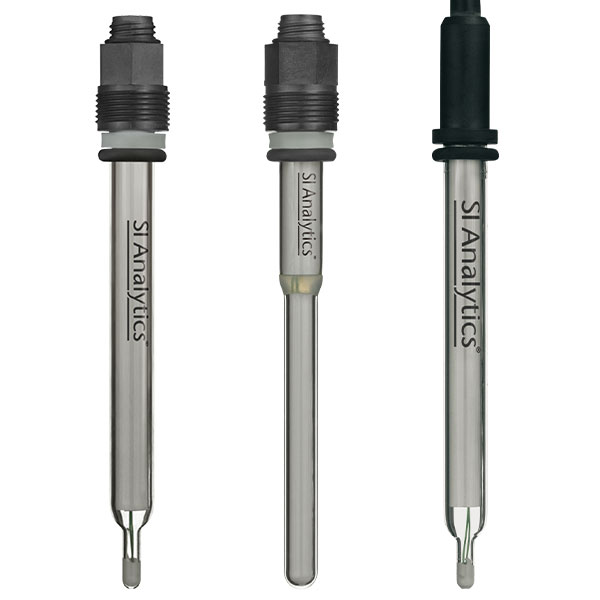

Resistance thermometers (RTDs)

Resistance thermometers are needed if pH electrodes are used, which have no temperature measurement on board.

All resistance thermometers have a shaft length of 120 mm (4.72 in), a diameter of 12 mm (0.47 in), and a temperature measurement range of -30 to +135 °C (-22 to +275 °F).

Models:

Resistance thermometers with screw plug head

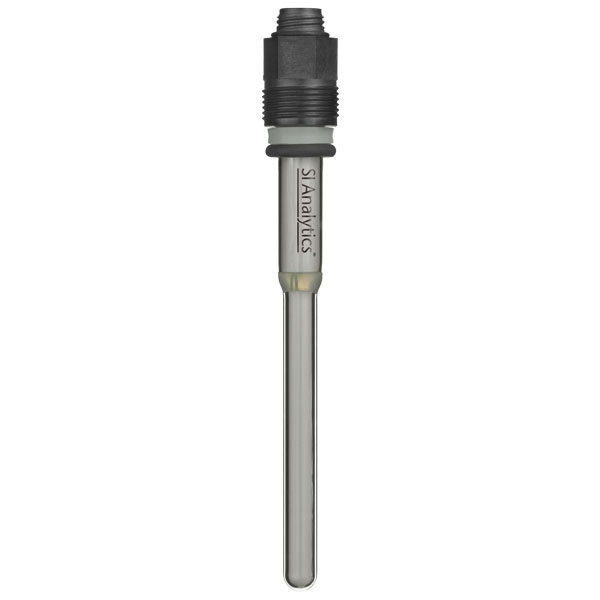

• W 2041 resistance thermometers with glass shaft, sensor Pt 100, 10 bar
• W 2021 resistance thermometers with stainless steel shaft (1.4571), sensor Pt 100, 12 bar
• W 2081 resistance thermometers with glass shaft, sensor Pt 100, 12 bar
• W 2121 resistance thermometers with stainless steel shaft (1.4571), sensor Pt 1000, 10 bar
• W 4081 resistance thermometers with glass shaft, sensor 2x Pt 100, 10 bar

Resistance thermometer with fixed cable

• 9010/85 resistance thermometers with glass shaft, flange cap, 5 m fixed cable with free end, sensor Pt 100, 10 bar
