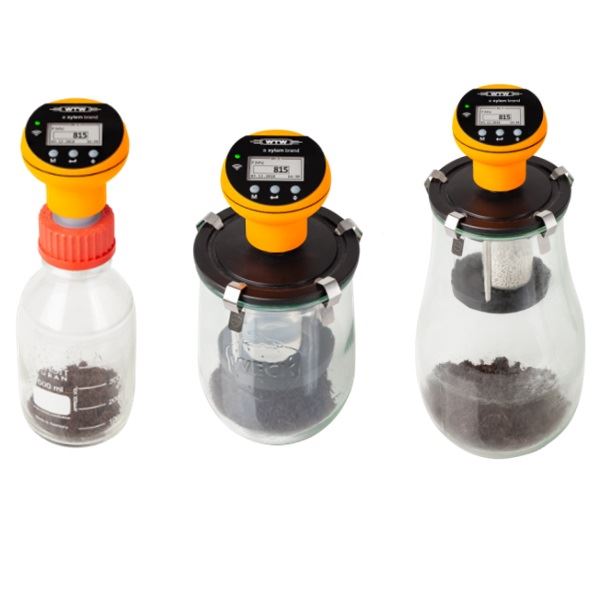

OxiTop®-IDS B 6 Measurement System for Soil Respiration - WTW

OxiTop®-IDS B 6 Measurement System for Soil Respiration - WTW

  • SKU: 209729
Request a Quote
  • Description
    OxiTop®-IDS measurement system for soil respiration – lab procedure to determine the microbial soil respiration according to DIN ISO 16072
    - Different vessels for optimized adaptation to the application
    - Measurements for up to 180 days for special applications
    - Also suitable for AT4 measurements
    Measuring system for determination of soil respiration (aerobic), 6 measuring units, requires Multi 3620 IDS SET WL or Multi 3630 IDS SET WL, please order separately. Incl. 6 bottles PF45/500 of 500 ml each and 6 OxiTop® AD/SK adapters and accessories. OxiTop®-IDS wireless measuring heads with Bluetooth® LE technology for operation with Multi 3620 IDS or Multi 3630 IDS, memory for 360 measuring points, with backlit graphic LCD and control LED, for routine BOD also operable without IDS multiparameter instrument.
  • Specifications

Downloads

AT4 Respirometric Activity - Application report - English

Biodegradability of the dry residue of the original substance

Firmware for wireless update of a OxiTop®-IDS resp. OxiTop®-IDS/B head - V1.03

Software / Firmware

Please see the corresponding chapter of the current instruction manual of Multi 3620 IDS/Multi3630 IDS for use with OxiTop®-ID.

Version history:

V1.03:

  • No loss of measured data when battery failure or reset
  • Optimized LowBat-warning
  • Introduction of Eco-Mode: During availability the LED flashes magenta

Low respiraton activities in soils - Application report

English

OxiTop®-IDS (/B) Multi 3630/3620 IDS (DE)

German Manual for the wireless operation of OXITOP®-IDS (/B) measuring heads

OxiTop®-IDS (/B) Multi 3630/3620 IDS (EN)

English Manual for the wireless operation of OXITOP®-IDS (/B) measuring heads
