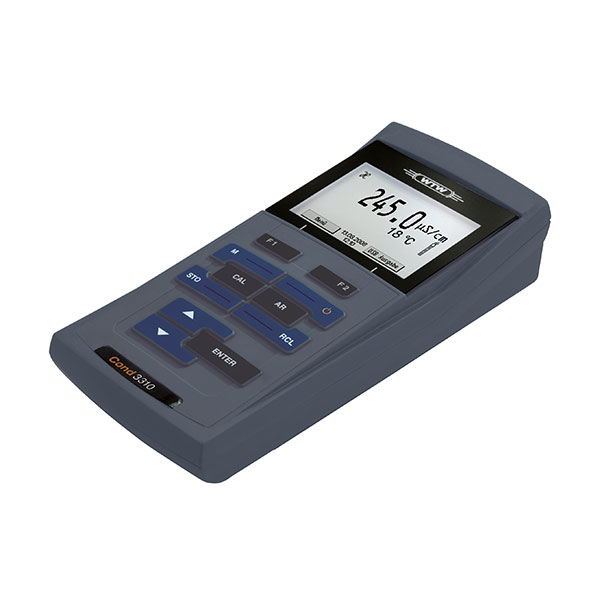

WTW - Portable conductivity meter ProfiLine Cond 3310

WTW - Portable conductivity meter ProfiLine Cond 3310

  • SKU: 2CA300
Request a Quote
  • Description

    ProfiLine Cond 3310 analog portable meter

    ProfiLine Cond 3310: Professional conductivity handheld meter

    Variants
    Art.-No. Name Description
    2CA300 ProfiLine Cond 3310 Single unit in field case with 0,01 mol/l KCl conductivity standard, short overview manual, CD-ROM and batteries, driver software for USB, cable
    2CA301 ProfiLine Cond 3310 Set 1 Single unit in field case with 4-pol conductivity measuring cell TetraCon® 325 with 0,01 mol/l KCl conductivity standard, stand, beaker, short overview manual, CD-ROM and batteries, driver software for USB, cable


    Highlights:

    • Covers all standard and special measurements
    • Pure water measurement according to pharmacopeia
    • With built-in memory and data logger
    • Robust and waterproof (IP 67)

    A combination of robust conductivity pocket meter and data logger for all who want to automatically capture and evaluate measured data with the help of a computer.

    The versatile Cond 3310 is designed for conductivity measurements in changing media with different 2 and 4 pole measuring cells. With its large memory and its waterproof USB interface, this meter is ideal for the capture of large data volumes, e.g. for groundwater pumping tests including date, time and ID number. Via the interface, the data can be transferred to the computer and processed as needed.

    The scope of delivery includes the MultiLab® Importer to collect data via Excel®.

      Overview-page portable meters

  • Specifications
    ProfiLine Cond 3310 Cond 3310 Set 1
    Art.-No. 2CA300 2CA301
    Parameters Leitfähigkeit/Salinität/spez. Widerstand, TDS
    Measurement range SAL 0,0 ... 70,0 according to IOT table
    Measurement range Cond. 0,001 µS/cm ... 1000 mS
    Resolution Cond. up to 0,001 µS/cm
    Accuracy measurements +/- 1 digit +/- 0,5 %
    Measurement range Temperature -5,0 ... 105 °C
    Accuracy Temperature +/- 1 digit 0,1 K
    TDS 0 ... 199,9 g/l
    Specific resistance 0,00 ... 199 MOhm cm
    Operating temperature -10 °C ... + 55 °C
    Protection class IP 67
    Data storage Manuell: 200, Automatisch: 5000
    Content Single unit in field case with 0,01 mol/l KCl conductivity standard, short overview manual, CD-ROM and batteries, driver software for USB, cable Single unit in field case with 4-pol conductivity measuring cell TetraCon® 325 with 0,01 mol/l KCl conductivity standard, stand, beaker, short overview manual, CD-ROM and batteries, driver software for USB, cable

Downloads

  • Manual

    Cond 3310 (English)

    Handheld meter,
    Operating Manual

    Cond 3310 (French)

    Handheld meter,
    Operating Manual

    Cond 3310 (Spanish)

    Handheld meter,
    Operating Manual

  • handbook

    pH Handbook (English)

    A guide with helpful practical tips

    pH HandbookContents:

      • Basic concepts of potentiometry and pH measurement
      • Structure of pH electrodes
      • Potentiometry of the pH electrode
      • Buffer solutions and safety in pH measurement
      • Measuring equipment and measuring set-up
      • Practical pH measurement
      • Recommendations for use, maintenance and care of electrode

    Conductivity handbook (English)

    A guide with helpful practical tips

    Content:

    • Fundamentals - conductivity
    • Calibration and analytical quality assurance
    • Measurement and analytical quality assurance
    • New measurement technologies and specific applications
    • Optical oxygen measurement and more...
