Terminal(/controller) MIQ/TC 2020 3G and Terminal IQ - WTW

  • SKU: 470020
Request a Quote
  • Description

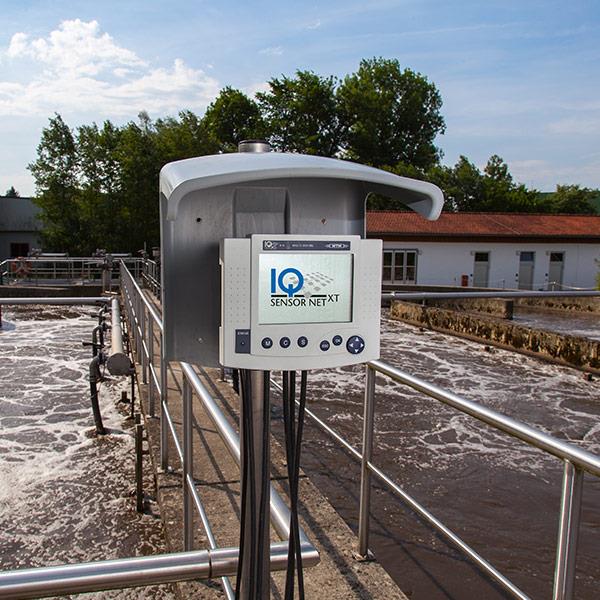

    Digital and modular network system for wastewater treatment plant monitoring to connect up to 20 sensors.

    The heart of every IQ Sensor Net system 2020 – multi-parameter system for up to 20 sensors with USB interface, remote maintenance and remote communication:

    • Access from remote by integrated webserver IQ WEB CONNECT
    • A solution for every application - up to 20 sensors can be connected, all IQ parameters are measurable
    • Flexible and ready for the future – the IQ Sensor Net can be expanded as needed thanks to its modular design
    • NEW: Terminal IQ - cost-effective supplement without Controller(-BackUp) function

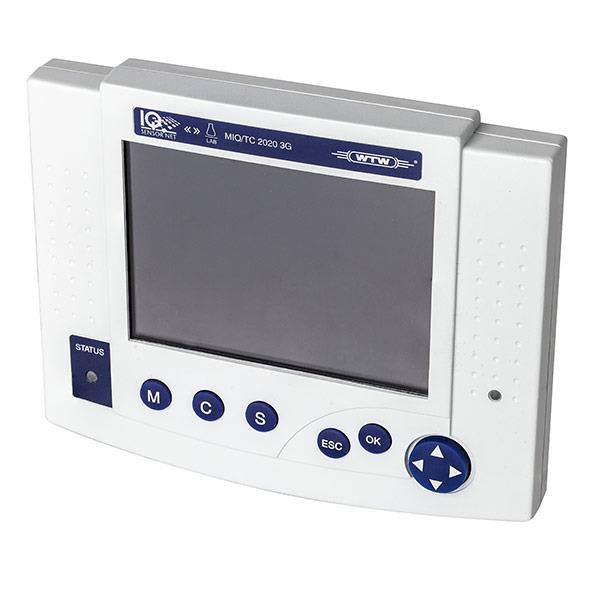

    The high-performance processor of the terminal/controller MIQ/TC 2020 3G coordinates all tasks inside the network. The USB interface allows quick data exchange via USB stick or directly to external systems. The system status LED provides reliable and quick information about the function and the system status.

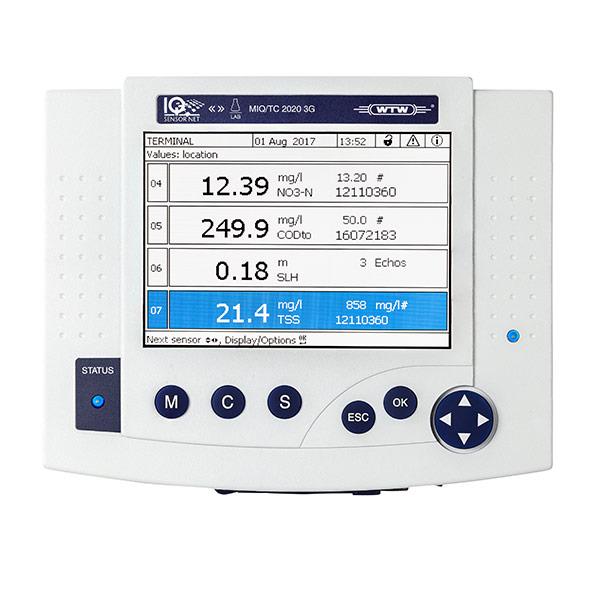

    The system stores the measured values of a new connected sensor and all configuration data automatically. The large, colored display and the large buttons ensure a clear and customer friendly operation at any conditions.

    When integrating two MIQ/TC 2020 3G into system, the system security and therefore the availability of the total system is ensured by the controller-redundancy-function. This lets you use one MIQ/TC 2020 3G as a terminal and a controller (fixed installation), and a second one as a mobile terminal. By including this into the network, you can have remote communcation as well as remote maintenance.

    For the remote maintenance from a PC, you need to install the software IQ Software Pack CONNECT. This setting can be made via a user interface according to the MIQ/TC 2020 3G terminal. In addition, you have the option to transfer measuring and configuration data of the system to a computer. For the control with the IQ Web Connect the MIQ/MC3 is required.

    The MIQ/TC 2020 3G Terminal/Controller is available as different versions.

    MIQ/TC 2020 3G:
    A single Terminal with Controller(BackUp) function
    MIQ/TC 2020 3G-CR3:
    Pre-configured and ready-to-use starter set incl. Terminal/Controller (MIQ/TC 2020 3G), a power supply module (MIQ/PS) and an output module (MIQ/CR3) with 3 current outputs and 3 relays
    MIQ/TC 2020 3G-C6:
    Pre-configured and ready-to-use starter set incl. Terminal/Controller (MIQ/TC 2020 3G), a power supply module (MIQ/PS) and an output module (MIQ/C6) with 6 current outputs
    MIQ/TC 2020 3G-EF:
    Pre-configured and ready-to-use starter set incl. Terminal/Controller (MIQ/TC 2020 3G), a power supply module (MIQ/PS) and an controller module (MIQ/MC3) with ethernet interface for Ethernet/IP, Modbus TCP and Profinet

    NEW: Terminal IQ
    The new Terminal IQ serves as an additional display and operating unit for the 2020 system. Like the MIQ/TC 2020 3G, it can be docked onto any module and offers all the usual setting options. For its intended use as a second or third terminal, it is necessary that at least one MIQ/TC 2020 3G or MIQ/TC 2020 XT is already in the system. This also applies if an MIQ/MC3 or MIQ/MC2 controller module is installed.

  • Specifications

    MIQ Module Coupling at Rear

    Combined mechanical and electrical connection, for rapid coupling to MIQ modules

    USB interface

    USB-A (host)

    Display

    Graphic display; resolution: 320 x 240 pixel; visible area: 4.49 x 3.39 in. (114 x 86 mm), black/white, backlit

    Control Functions/Function Keys

    5 operating keys: 3 master keys for functions: Measurement (M), calibration (C), set/system settings (S),
    2 keys for: confirmation/switching menu O.K. (OK), Escape (ESC)
    4-directional button for rapid selection of software functions and input of alphanumeric values

    Datalogger

    Data memory for up to 525,600 data sets

    Electric Supply

    Directly via the IQ Sensor Net when coupled to MIQ module

    Ambient Conditions

    Operating temperature: -4 °F … 131 °F (-20 °C … +55 °C)
    Storage temperature: -13 °F … 149 °F (-25 °C … +65 °C)

    Housing Material

    ASA (Acrylonitrile-Styrene-Acryloesterpolymer)

    Protection Rating

    IP 66 / corresponding to NEMA 4X (not for direct conduit connections). Conduits need to be connected with flexible adapters (CC-Box), respectively with adapters CC-PM..

    Dimensions (W x H x D)

    8.27 x 6.69 x 1.57 in. (210 x 170 x 40 mm)

    Weight

    Approx. 1.98 pounds (0.9 kg)

    Certifications

    ETL, cETL (conforms with relevant UL and Canadian standards), CE

    Electromagnetic Compatibility

    EN 61326-1, Class B; FCC Class A

    Integrated Overvoltage Protection

    According to EN 61326-1 enhanced overvoltage protection for the entire system, implemented in each component

    Connection Characteristics

    Comprehensive EMC shield control; cable topology within IQ Sensor Net system as required, e.g. in the form of a line, tree, star, multiple star; Total cable length: max. 1000 m/1094 yds (without signal amplifying), with signal amplifying module MIQ/JBR ­additional 1000 m/1094 yds (max 3000 m/3282 yds)

    Warranty

    3 years for defects of quality
