Mounting Hardware for 60 mm Sensors

Mounting Hardware for 60 mm Sensors

  • SKU: 109362
Request a Quote

Sign In or Register to view prices and add to cart

  • Description

    Sensor-, wall- und rail holders for UV-VIS spectral sensors and sludge level sensor IFL 700 IQ

    Spectral sensors - sensor mounting
    VIS Set-F: Supplement kit for horizontal mounting of a UV-VIS/UV sensor. For use in variable water levels with the S 200 float

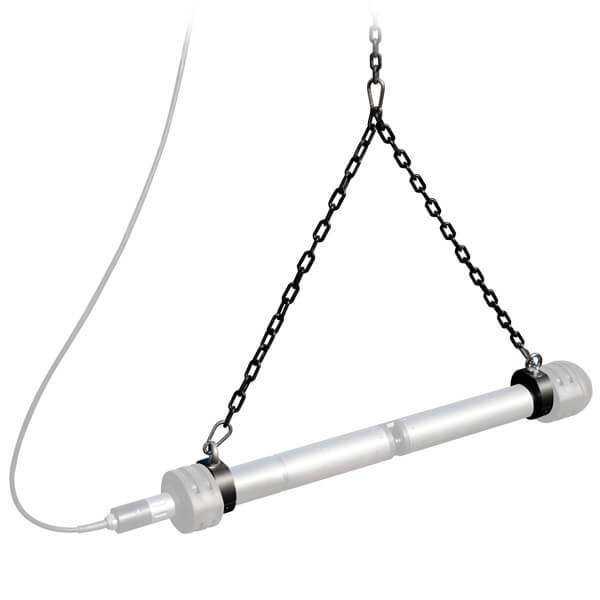

    VIS Set/EH: Supplement kit for spectral sensors for horizontal mounting of a UV/VIS sensor, with the EH/F 170 swing mounting assembly for use in basins or open channels
    EH/U 170: Sensor holder (also frequently used for sludge level sensor)
    EH/SW: Sensor holder
    EH/F 170-1,5: Swing holder
    S 200: Swimmer

    Spectral sensors - flrow through vessel
    VIS FT-1: Flow through vessel spectral sensor
    VIS FT-1/RS: Flow through vessel spectral sensor spare part set

    Sludge level sensor - Sensor holders an mounting pipe
    EH/WT D30: Pipe D30 x 2600 mm. Adaptable to EH/W 171, EH/W 172, IFL-RM, IFL-E
    EH/WB: Sensor holder for attachment to pipes with 30 mm (1.18 in) diameter
    EH/WB 40: Sensor holder for attachment to pipes with 40 mm (1.57 in) diameter

    Sludge level sensor - wall mounting for sensor holders
    EH/W 171: Pivot wall mount with 42 cm side arm for IQ sensors to pipes with 30 mm (1.18 in) diameter (EH/WT-D30, EH/WB please order separately)
    EH/W 172: Fixed wall mount for IQ sensors to pipes with 30 mm (1.18 in) diameter (EH/WT-D30, EH/WB please order separately)
    EH/W 173: Fixed wall mount with side arm for IQ sensors to pipes with 30 mm (1.18 in) diameter in combination with deflector armature IFL-E or sensor holder EH/WB (EH/WT-D30, IFL-E or EH/WB please order separately)

    Sludge level sensor - rail mounting
    EH/W RM: Rail connection for wall mount EH/W 170 to EH/W 173
    IFL-RM: Rail mount for sludge level sensors IFL 700 IQ and IFL 701 IQ in combination with deflector armature IFL-E. (EH/WT-D30, IFL-E please order separately)
    IFL-E: Deflector armature for IFL 700 IQ and IFL 701 IQ for application with surface skimmers
