    Cables to connect analog sensors to the controllers of series 298 - for pH/ORP, O2 and Cond

    Cables to connect analog sensors to the controllers of series 298

    Cables for pH/ORP electrodes
    VP 6-19/10: VP 6-pole electrode socket, 10 m cable KA 19 (1 coaxial + 3 cords), up to 266 °F (130 °C), free end
    K 5 S: Coaxial electrode plug, 5 m coaxial cable, S plug (extension cable)
    AS 9-HI-6,0: Connecting cable with exposed cable ends for direct connection (high impedance) of pH electrodes to analogue monitors.Cable length 6 m (19 ft)

    Cables for pH aramtures and oxygen sensors
    ADA/AMPH: Adapter for direct connection of D.O./pH sensors of series TriOxmatic® and SensoLyt® 700/690 to analogue monitors of Oxi/pH 29X series

    Cables for conductivity measruign cells

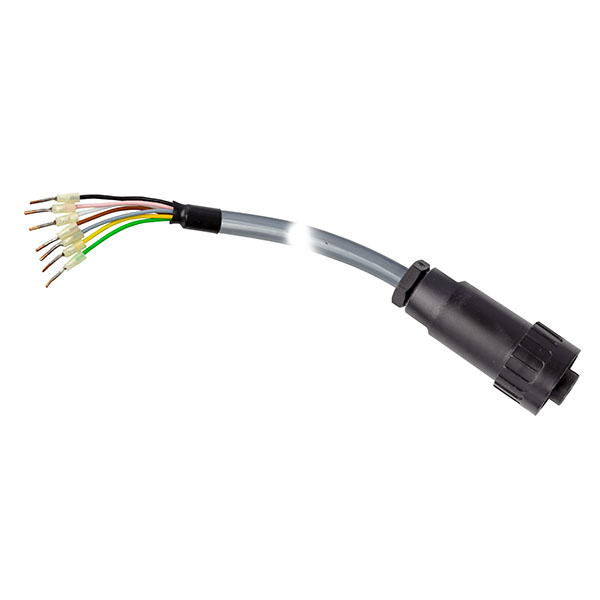

    ADA/AMPH-LF: Adapter for direct mounting of conductivity cells series TetraCon® 700 and LRD to analogue monitors of series LF 29X
    ADA/LAB-LF: Adapter for mounting of laboratory conductivity cells to analogue monitors of series LF 29X

    Pipe mounting for consuctivity measuring cells
    ADA-G 1”: V4A-stainless steel (1.4571) muffle ½ inch NPT to G1 inch thread
    ADA-LF-DN 20: PVC glue-in socket with ½ inch thread for installation of LRD 01/LRD 325 in DN 20 pipes
    EST-LRD: V4A-stainless steel (1.4571) weld-in socket ½ inch NPT for installation of LRD 01 or LRD 325 conductivity sensor in pipes.
