Chlorine drinking water panel - WTW

Chlorine drinking water panel - WTW

  • SKU: 801260
Request a Quote
  • Description
    Ready-to-use chlorine measurement, panel mounted, incl. Pipes
    CL 298/P - single parameter system ready to operate to measure free or total chlorine, environmentally friendly, sanitary and reliable:
    •sanitary and well-structured – premounted on specially coated panel
    •environmentally friendly - no use of chemicals
    •reliable - membrane protects from contamination of electrodes

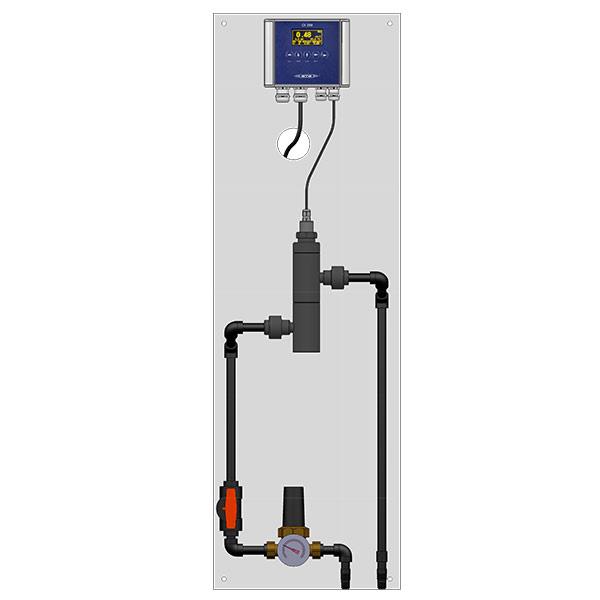

    The drinking water panel CL 298/P is a system that is ready to operate, with monitor Cl 298, integrated PID regulator, premounted piping and special freely selectable probes to measure free and total chlorine. Therefore, nothing is stopping you from measuring drinking water or pool water.
  • Specifications
    Panel
    Dimensions 1100 mm x 350 mm x 13 mm (HxWxD)
    Material PVC hard foam, foamed, white
    Monitor
    Temperature measurement Pt1000 (integrated in sensor)
    Temperatur compensation -10 °C ... +130 °C
    Analog outputs 2 x 0(4) … 20 mA
    2 x Relays
    Housing Aluminium housing for wall mounting, protection IP 65
    Dimensions 160 x 130 x 70 mm (WxHxD)
    Power supply 100 … 240 V AC
    or 18 … 36 V DC
    Sensors
    Measuring range FCML 412 N 0.00 … 2.00 mg/l
    Conditions of use FCML 412 N 0 … 45 °C, 4 … 9 pH
    Measuring range FCML 68 0.00 … 2.00 mg/l
    Conditions of use FCML 68 0 … 45 °C, 6 … 8 pH
    Measuring range TCML N 0.00 … 2.00 mg/l
    Conditions of use TCML N 0 … 45 °C, 4 … 12 pH
