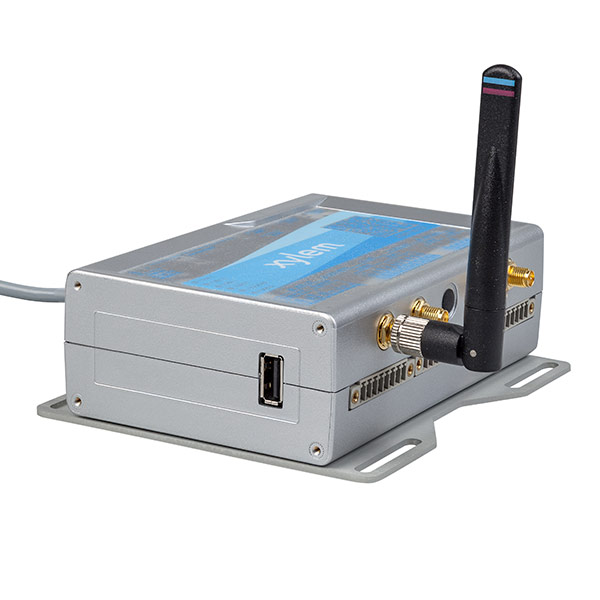

IDS Gate – WTW

IDS Gate – WTW

  • SKU: 1FD680
Request a Quote
  • Description

    Gateway with REST API interface for the allocation of data records. Suitable for the parameters pH, ORP, conductivity and dissolved oxygen of IDS wireless sensors.

    • Safe, automated measurement data collection
    • Manipulation-proof, GxP-compliant additional data (metadata)
    • Future-proof data format (JSON)

    The IDS Gate is a software interface (API) that can be used to integrate IDS wireless sensors into an existing network. Via the interface, measured data and meta data can be automatically transferred to a database system (e.g. LIMS) or a spreadsheet program (e.g. Microsoft Excel). Data is transmitted wirelessly via a barcode reader or the IDS wireless sensors. The IDS Gate provides the data in JSON format. JSON is a data format that ensures that the data can be read very easily both by machine evaluation systems, such as LIMS or Excel, and by humans. The data transfer is encrypted via HTTPS. For digital long-term archiving, the data can also be provided as PDF/A in addition to JSON. The browser-based visualization makes it possible to display data in real time on networked hardware such as smartphones, tablets or monitors, independent of operating systems.

    Power supply and antenna for WiFi/BT in scope of supply.

  • Specifications

    Interfaces



    Ethernet

    2x 10/100Mbps - RJ45

    USB

    3x Host 2.0 (noise and surge protected) - Type A

    Radio transmission





    Wi-Fi

    WI-FI a/b/g/n,

    Bluetooth

    BLE 4.2

    Antenna (external)

    2x RP-SMA Wi-Fi/BT

    Clock

    Real-time clock

    Yes (user settable)

    Power supply



    Input

    6-36VDC, transient protected

    Consumption

    2 W typical (15 W Max.)

    Environmental conditions





    Operation temperature

    - 40 to +70 °C

    Storage temperature

    - 40 to +85 °C

    Relative humidity

    5 to 95 % (non-condensing) at 40 °C

    Certificates







    Compliance

    CE

    Safety

    EN 62368-1: 2014 + A11: 2017

    Environment

    RoHS3

    Protection class

    IP30

    Mechanical Design

    Housing

    Material: ABS



    Dimensions

    ca. 139 x 90 x 45 mm (W x D x H)

    ca. 139 x 100 x 45 mm (W x D x H) (including antenna connectors)

       Weight

     210 g (without DIN rail mounting clip / holder)

       Battery Type

    BR1225 Lithium button cell

Downloads

IDS Gate - Operation Manual

Interactive Operation Manual for the IDS Gate the following topics:

  1. First setup
  2. Connection/Integration into the Network
  3. IDS Status Viewer
  4. IDS Gate API
  5. Setting date and time
  6. Setting air pressure required to calculate the oxygen saturation
  7. Measurement values
  8. Working with the barcode reader
  9. Software update
  10. Import of tagged measurement values into Excel
