Optical Handheld Refractometer, Eclipse Ze (ABV), Bellingham + Stanley

  • SKU: 45-22
Request a Quote
  • Description

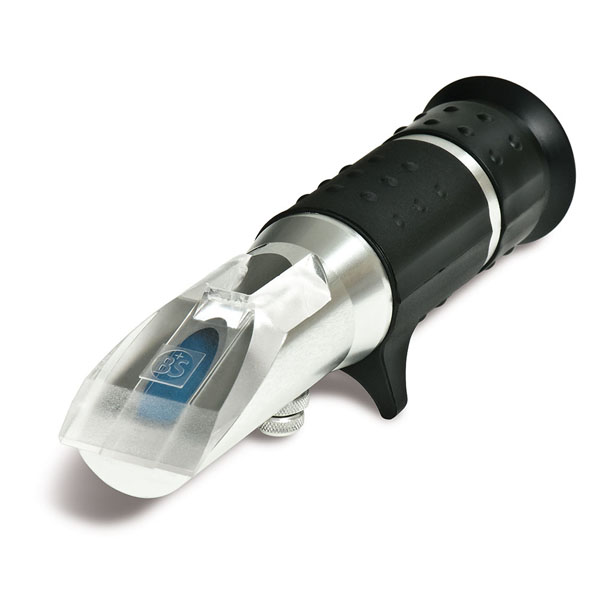

    Robust, IP65, all-metal, professional grade Optical Handheld Refractometer, Eclipse Ze (ABV) from Bellingham + Stanley.

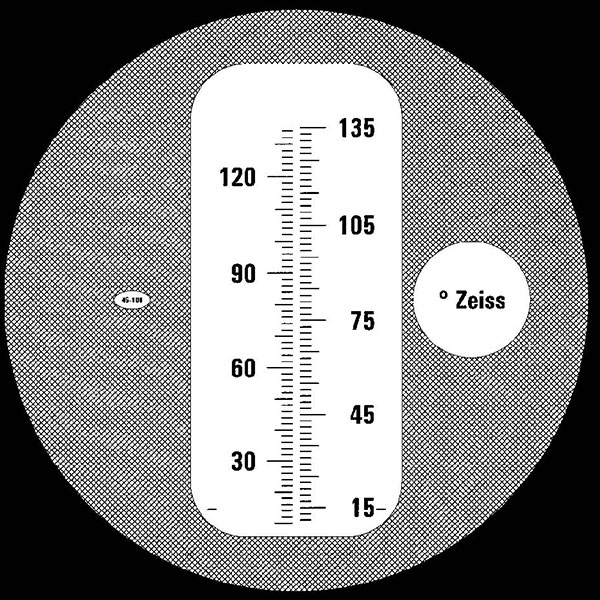

    Professional grade  optical handheld refractometer with clear field of view and large rubber handgrip for easy measurement in harsh environments. A durable refractometer with a linear Zeiss scale for precise measurement of finished beer, wine or cider when compared to a standard "non-linear" Brix model.  The advantage of the Zeiss scale is that the graticles lines (or scale lines) are evenly spaced across the whole range making it easier for the user to interpret the borderline position when compared to using the more compressed lines at the lower end of the Brix scale.

    This instrument can be used in conjunction with a hydrometer to calculate the alcohol content of finished or fermenting beer, wine or cider to a typical accuracy of +/- 0.5 % by volume.  Thick barrel for easy handling in cold or wet environments such when working in the brewery or winery.

    Made in UK. IP65 rated against moisture ingress.

    This high quality handheld refractometer is great for beer, wine and cider makers, as well as trading standards organisations looking for ABV estimations when comparing actual versus labelled alcohol contents of beers, wines and ciders at point of sale.

    Find a local dealer or request a quote today by contacting us, or buy direct from Bellingham + Stanley's online Refractometer Shop.

  • Specifications
    Alcohol Calculation Specifications
    Range    0-20 % v/v (Volume/Volume)
    Accuracy    +/- 0.5 % v/v (Volume/Volume)

    To learn how to measure and calculate the alcohol contnet (ABV) of beer, wine or cider, please refer to our ABV blog page.

    General Specifications
    Code 45-22
    Scale Brix
    Scale Range 10-135 Zeiss
    Resolution 1
    Prism Material Glass
    Prism Housing Aluminium
    Body Material Aluminium
    Eyepiece Material Aluminium
    Body Covering Rubber (3mm thickness)
    Body Diameter 35mm
    Ingress Protection  IP65
    Certificate of Calibration Included
    Carry Case Included
    Country of Manufacture UK

    Spare Parts
    Illuminator Flap 45-003 (pack of 5)
    Hydrometer for ABV use 44-839
    Hydrometer Jar 44-838

    To calculate ABV of beer, wine or cider, please refer to our ABV blog page.

Downloads

Eclipse Optical Handheld Refractometer (English)

Eclipse Refraktometer German Eclipse Optical Handheld Refractometer literature (English)

Eclipse Refractometer - Alcohol by Volume User Guide

Eclipse Refractometer User Guide ABV Eclipse Refractometer - Alcohol by Volume User Guide (English Manual)
