• ProcessLine-Einstabmesskette mit Schraubsteckkopf (ATEX II 1/2G), Polymerelektrolyt, 2 Lochdiaphragma, Pt1000, VP-Kopf
  • ProcessLine-Einstabmesskette mit Schraubsteckkopf (ATEX II 1/2G), Polymerelektrolyt, 2 Lochdiaphragma, Pt1000, VP-Kopf

PL 81 ProcessLine comb. electrode with screw plug head (ATEX II 1/2G), polymer electrolyte, 2 hole junction, Pt1000, VP head

  • SKU: 285113550
Request a Quote
  • Description

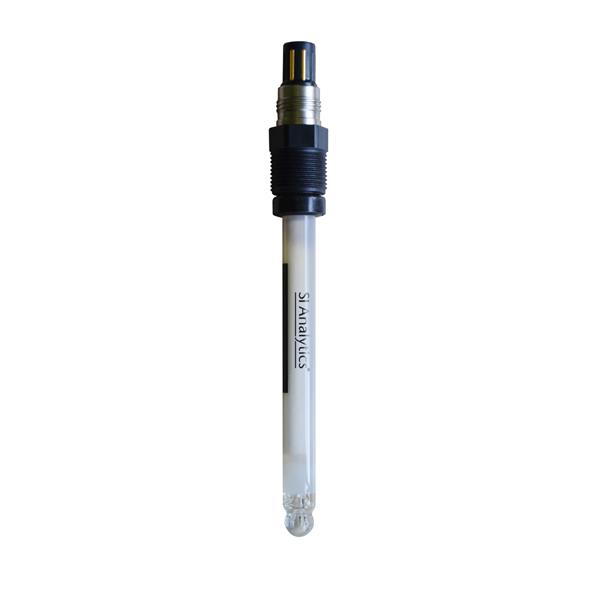

    PL 81-120pHT VP
    Low-maintenance pH combination electrode with Pt 1000, glass shaft, SILAMID® reference, 2 hole junction, DuraLid reference system, sphere membrane, H glass, VP screw plug head, length 120 mm, 12 mm Ø, 0...14 pH, 0...130 °C
    PL 81-325pHT VP
    Low-maintenance pH combination electrode with Pt 1000, glass shaft, SILAMID® reference, 2 hole junction, DuraLid reference system, sphere membrane, H glass, VP screw plug head, length 325 mm, 12 mm Ø, 0...14 pH, 0...130 °C
    PL 81-360pHT VP
    Low-maintenance pH combination electrode with Pt 1000, glass shaft, SILAMID® reference, 2 hole junction, DuraLid reference system, sphere membrane, H glass, VP screw plug head, length 360 mm, 12 mm Ø, 0...14 pH, 0...130 °C
    PL 81-225pHT VP
    Low-maintenance pH combination electrode with Pt 1000, glass shaft, SILAMID® reference, 2 hole junction, DuraLid reference system, sphere membrane, H glass, VP screw plug head, length 225 mm, 12 mm Ø, 0...14 pH, 0...130 °C
    PL 81-425pHT VP
    Low-maintenance pH combination electrode with Pt 1000, glass shaft, SILAMID® reference, 2 hole junction, DuraLid reference system, sphere membrane, H glass, VP screw plug head, length 425 mm, 12 mm Ø, 0...14 pH, 0...130 °C
    ATEX II 1/2G pH-combination electrode PL 81-120 pHT VP
  • Specifications

Downloads

PL 81-225pHT VP; PL 82-225pHT VP (English)

pH electrodes
Operating manual+connection cable wiring table

PL 81-225pHT VP; PL 82-225pHT VP (French)

pH electrodes,
Operating manual+connection cable wiring table

PL 81-225pHT VP; PL 82-225pHT VP (German)

pH-Messketten,
Bedienungsanleitung+Verdrahtungstabelle Anschlusskabel

PL 81-225pHT VP; PL 82-225pHT VP (Spanish)

pH electrodes,
Operating manual+connection cable wiring table
