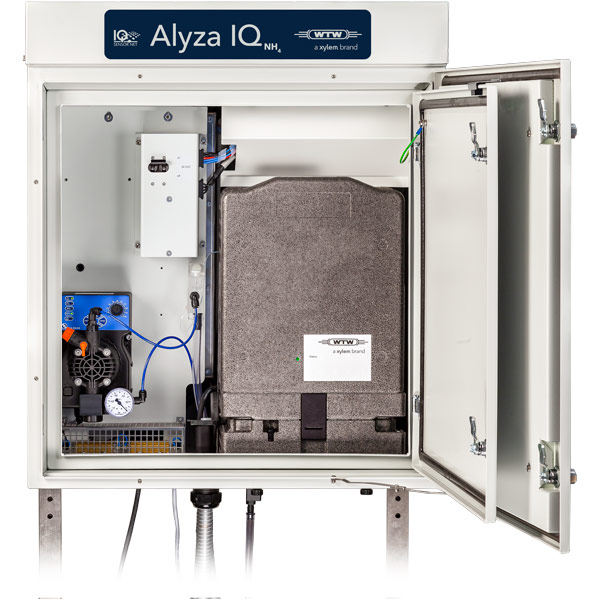

  • IQ Analyzer (product image) Alyza IQ NH4 (1 channel version) frontal view, closed photometer unit

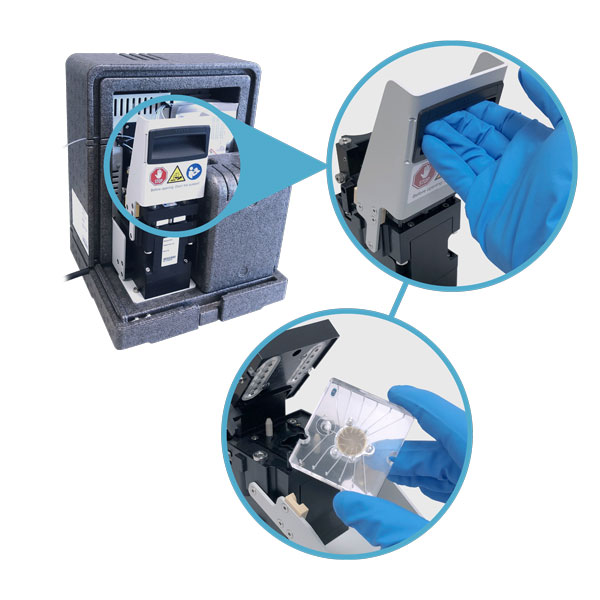

  • Ammonium Analyzer of WTW's Alyza Family: multi valve port handling

IQ Analyzer for Ammonium - WTW Alyza IQ NH4

  • SKU: 825011
Request a Quote
  • Description

    The perfect solution for monitoring ammonium in the treatment plant effluent as well as surface water bodies – on-site analyzer for ammonium measurement in the IQ SensorNet

    Ammonium Analyzer for the IQ SensorNet:

    • Minimized reagent consumption and waste
    • Reliable results even at very low NH4 concentrations
    • Minimum maintenance
    • Easy to operate
    • Compatible with IQ SensorNet

    The Alyza IQ NH4 ammonium analyzer is another addition to the IQ SensorNet. It can be easily integrated into new and existing systems just as simple as a sensor. The measuring principle is based on the photometric indophenol method according to DIN 38 406, which has been a proven detection method for ammonium. Thanks to the wet chemical measurement directly in the process, Alyza IQ is the perfect solution for monitoring the treatment plant effluent as well as surface water bodies.

    Highlights:

    • Minimized reagent consumption and waste
      Alyza IQ boasts an extremely low use of reagents – an advantage that significantly reduces operating costs and waste generation
    • Simple Service
      Regular maintenance takes only 10 minutes every 2-3 months.
    • Reliable results from low to high measuring levels
      Thanks to the new technology, Alyza IQ provides an accurate and reliable measurement over the whole range of 0.02–5.00 mg/l and 0.10–20.00 mg/l NH4-N.
    • Automatic cleaning and calibration with standards
      The fully automated cleaning as well as 2-point calibration with selectable intervals ensures an exceptional degree of operational safety.
    • On-site installation
      Alyza IQ NH4 can be installed directly at the basin. This guarantees short transport distances and promptly measured values. Thanks to the climate package, the analyzer is perfectly suited for all weathers.

    Models:

    Alyza IQ NH4-110 NH4 analyzer, 2 measurement ranges, 1 channel
    Alyza IQ NH4-111 NH4 analyzer, 2 measurement ranges, 1 channel, incl. pump
    Alyza IQ NH4-112 NH4 analyzer, 2 measurement ranges, 2 channels, incl. 2 pumps

    Applications:

    • Wastewater treatment plant effluent monitoring
    • River monitoring
  • Specifications
    Icon: CE Product Certification for Xylem Analytics Products   Icon: Xylem Analytics Products that is cETLus listed by Intertek   Icon: Technical Data Sheet of Xylem Analytics WTW Products detailed technical data see data sheet D2.24
    Model Alyza IQ NH4-110 Alyza IQ NH4-111 Alyza IQ-NH4-112
    Order No. 825010 825011 825012
    Measurement method Berthelot method (Indophenol method)
    Measurement range Two measuring ranges:
    MR1:
    Displayed:
    Resolution:
    Accuracy:
    0.02 … 5.00 mg/l NH4-N
    0.00 … 5.00 mg/l NH4-N
    0.01 mg/l NH4-N
    ± 2 % ± 0.02 mg/l
    MR2:
    Displayed:
    Resolution:
    Accuracy:
    0.10 … 20.00 mg/l NH4-N
    0.00 … 20.00 mg/l NH4-N
    0.01 mg/l NH4-N
    ± 3 % ± 0.10 mg/l
    Sample streams/channels 1 1 2
    Cleaning Automatic cleaning with cleaning solutions
    Calibration Automatic 1- and 2-point calibrations
    Operational temperature -4 ... 104 °F (-20 … +40) °C
  • Accessories
    Consumables Alyza IQ

    Consumables Alyza IQ

    Consumables for the Alyza IQ
    Chemicals Alyza IQ NH4

    Chemicals Alyza IQ NH4

    Calibration standards, reagents and cleaning solutions for Alyza IQ NH4 Analyzers
  • Video

    WTW Presents the Alyza IQ - wet chemistry

    With WTW designed disruptive technology at the heart of the new Alyza IQ range, extremely accurate and reliable measurement results have been realized with extremely low reagent use, maintainance and downtime.
