OPTi Digital Handheld Refractometer

  • SKU: 38-01
Request a Quote
  • Description

    All the accuracy you need in an easy-to-use handheld device

    OPTi® Digital Handheld Refractometer - A high performance refractometer with a vast choice of scales for a wide range of applications – all in the palm of your hand. For more information contact our Customer Care team now.

    Software

    • Quick 2 second read time of sample
    • Onboard library of 50 scales
    • Up to 3 active scales on a single device
    • High Ambient Light (HAL) sensor detects and warns of too much light entering the sensor
    • Unique “AG Test Mode” that allows the use of long-life non sucrose based certified reference materials
    • Programmable read delay for sample temperature stabilisation

    Hardware

    • Clear digital LCD display
    • Ergonomic & durable handheld design
    • IP65 rated
    • Easy-clean, stainless steel prism dish
    • Rapid temperature stabilisation

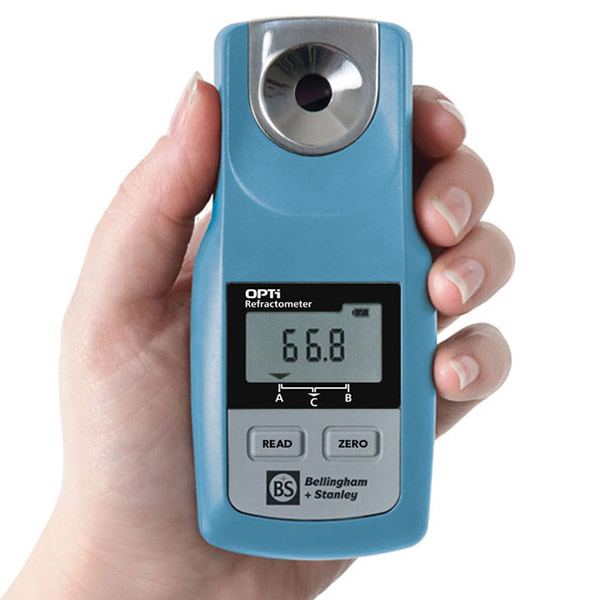

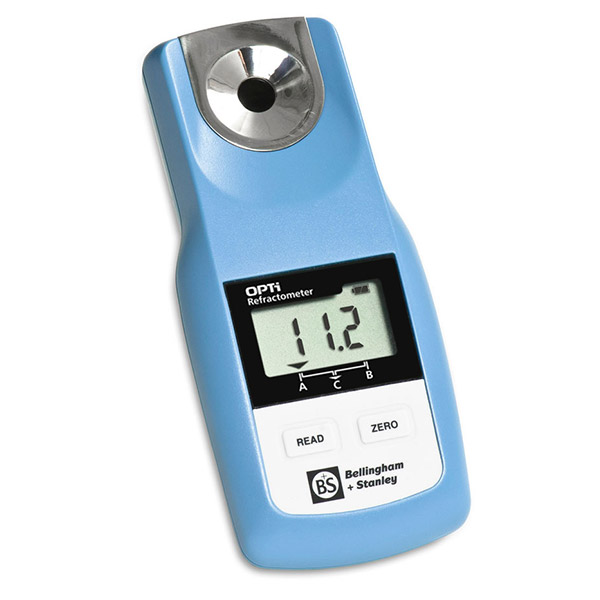

    The OPTi® Digital Handheld Refractometer is a high quality, UK made, simple-to-use, accurate, pocket sized refractometer offering measurement between 0-95 Brix and over 40 other scales.

    The OPTi refractometer is constructed using the latest manufacturing techniques. Stainless steel injection moulding to form the easy clean prism dish and ultrasonic welding to bond the housing. Each OPTi displays information to the user via and easy-to-read LCD display, helping to make readings even easier than using a standard optical handheld refractometer.

    Full 0-95 Brix Scale

    The Brix scale is the most common scale used in refractometry, yet many refractometers cover only a small portion of it. OPTi gives you more, with coverage of the full Brix range (0-95) at no extra cost.

    50 Common Refractometer Scales

    Each OPTi comes with 3 interchangeable scales pre-loaded from an onboard library of 50 individual choices - meaning there are over 9880 possible OPTi combinations.

    A Durable Design For Versatile Use

    Thanks to its durable design and vast range of scales, the OPTi is suitable for a wide range of applications; from the clinical laboratory to the harshest of environments. OPTi is the refractometer that fits in your pocket. With a long battery life, true portability, and durable design: OPTi refractometers are ready when you are. Readings from an OPTi refractometer are clear and defined thanks to the bold digital LCD display.

    All OPTi refractometers feature a four decimal place LCD display, Temperature Compensation (ATC), robust design with IP65 rating, a choice of three scales in a single device.

    Typical Specifications

    Typical Specifications

    Sucrose
    (Brix)

    Refractive Index

    Specific
    Gravity (SG)

    Concentration
    %

    Range

    0-95

    1.33-1.53

    1.000-1.050

    0-95

    Resolution

    0.1

    0.0001

    0.001

    0.1

    Accuracy

    0.2

    0.0003

    0.003

    0.2

    Temperature Compensation (ATC)

    Brix (ICUMSA)

    Application Specific or Brix

    Ambient Temperature Range

    5-40°C (Ambient)

    5-95°C (Sample)


    For a full list of scales, see our specifications tab.

    For more information contact our Customer Care team now.

    Watch our OPTi video to see how easy it is to select and load scales.

  • Specifications

    Scale List

    Complete list of OPTi scales selectable through the onboard library.

    Application

    Scale

    Units

    Range

    Resolution

    Accuracy

    ATC

    Primary

    °Brix (ATC)

    0–95

    0.1

    ±0.2

    °Brix

    Primary

    °Brix

    0–95

    0.1

    ±0.2

    None

    Primary

    Refractive Index (ATC)

    1.33–1.53

    0.0001

    ±0.0003

    °Brix

    Primary

    Refractive Index

    1.33–1.53

    0.0001

    ±0.0003

    None

    Automotive

    AdBlue®/DEF (NOx reduction)

    % Weight / Weight

    0–40

    0.1

    ±0.2

    AUS32

    Automotive

    Ethylene Glycol

    °C Freezing Point

    0 to -50

    1

    ±1

    EG

    Automotive

    Ethylene Glycol

    °F Freezing Point

    30 to -40

    1

    ±1

    EG

    Automotive

    Propylene Glycol

    °C Freezing Point

    0 to -50

    1

    ±1

    PG

    Automotive

    Propylene Glycol

    °F Freezing Point

    30 to -40

    1

    ±1

    PG

    Food & Beverage

    °Butyro

    0–100

    0.1

    ±0.5

    Butyro

    Food & Beverage

    42 HFCS (High Fructose Corn Syrup)

    % Weight / Weight

    0–95

    0.1

    ±0.2

    °Brix

    Food & Beverage

    55 HFCS (High Fructose Corn Syrup)

    % Weight / Weight

    0–95

    0.1

    ±0.2

    °Brix

    Food & Beverage

    90 HFCS (High Fructose Corn Syrup)

    % Weight / Weight

    0–95

    0.1

    ±0.2

    °Brix

    Food & Beverage

    Fructose

    % Weight / Weight

    0–85

    0.1

    ±0.2

    °Brix

    Food & Beverage

    Glucose

    % Weight / Weight

    0–85

    0.1

    ±0.2

    °Brix

    Food & Beverage

    Invert Sugar

    % Weight / Weight

    0–85

    0.1

    ±0.2

    °Brix

    Food & Beverage

    Maltose

    % Weight / Weight

    0–60

    0.1

    ±0.2

    °Brix

    Food & Beverage

    Salinity (NaCl)

    % Weight / Volume

    0–28

    0.1

    ±0.2

    NaCl

    Food & Beverage

    Total Solids of Waste Milk

    5–15

    0.1

    ±0.5

    °Brix

    Food & Beverage

    Water in Honey

    % Weight / Weight

    10–30

    0.1

    ±0.2

    Honey

    Industrial

    Arbitrary

    0-95

    0.1

    ±0.2

    Industrial

    Calcium Chloride

    % Weight / Weight

    0–40

    0.1

    ±0.2

    CaCl2

    Industrial

    Ethanol

    % Volume / Volume

    0–20

    0.5

    ±1

    Ethanol

    Industrial

    Ethylene Glycol

    % Volume / Volume

    0–60

    0.1

    ±0.4

    EG

    Industrial

    Ethylene Glycol

    % Weight / Weight

    0–60

    0.1

    ±0.4

    EG

    Industrial

    FSII DiEGME (ASTM D 5006)

    % Volume / Volume

    0.0–0.25

    0.01

    ±0.02

    °Brix

    Industrial

    Hydrogen Peroxide

    % Weight / Weight

    0–50

    0.2

    ±0.5

    °Brix

    Industrial

    Methanol

    % Weight / Weight

    0–40

    1

    ±0.2

    Meth

    Industrial

    Propylene Glycol

    % Volume / Volume

    0–60

    0.1

    ±0.4

    PG

    Industrial

    Sodium Sulphate

    % Weight / Weight

    0–22

    0.1

    ±0.2

    Na2SO4

    Industrial

    Starch

    %

    0–30

    0.1

    ±0.2

    °Brix

    Industrial

    Sulphuric Acid (Battery Acid)

    Specific Gravity (d20/20)

    1.000–1.501

    0.001

    ±0.003

    SA

    Industrial

    Urea (CRC data)

    % Weight / Weight

    0–40

    0.1

    ±0.2

    AUS32

    Life Science

    Colostral Quality

    Poor / PASS

    Poor / PASS

    ±0.2

    °Brix

    Life Science

    Seawater (Practical Salt Units)

    Part Per Thousand

    0–180

    1

    ±1

    NaCl

    Life Science

    Seawater (Practical Salt Units)

    Specific Gravity (d20/20)

    1.000–1.090

    0.0005

    ±0.001

    NaCl

    Life Science

    Serum Protein

    g/100ml

    0–30

    0.1

    ±0.2

    °Brix

    Life Science

    Urine (SG) Human

    Specific Gravity (d20/20)

    1.000–1.050

    0.0005

    ±0.0010

    °Brix

    Life Science

    Urine (SG) Large Mammal

    Specific Gravity (d20/20)

    1.000–1.050

    0.0001

    ±0.0010

    °Brix

    Life Science

    Urine (SG) Small Mammal

    Specific Gravity (d20/20)

    1.000–1.050

    0.0005

    ±0.0010

    °Brix

    Wine & Beer

    °Baumé

    0–50

    0.1

    ±0.2

    °Brix

    Wine & Beer

     °Zeiss (ABV)

    % Volume / Volume

    10–135

    0.1

    ±0.5

    °Brix

    Wine & Beer

    Alcohol Probable (AP)

    0–22

    0.1

    ±0.2

    °Brix

    Wine & Beer

    KMW (Babo)

    0–25

    1

    ±1

    °Brix

    Wine & Beer

    Oechsle (German)

    30–130

    1

    ±1

    °Brix

    Wine & Beer

    Oechsle (Swiss)

    0–130

    1

    ±1

    °Brix

    Wine & Beer

    °Plato

    0–30

    0.1

    ±0.2

    °Brix

    Wine & Beer

    Mass Sugar (°Brix) (ATC)

    % Weight / Weight

    0–95

    0.1

    ±0.2

    °Brix

    Wine & Beer

    Mass Sugar (°Brix)

    % Weight / Weight

    0–95

    0.1

    ±0.2

    None

    Wine & Beer

    Wort (Sucrose Equivalent)

    Specific Gravity (d20/20)

    1.000–1.120

    0.0005

    ±0.001

    °Brix

    Typical Specifications

    Sucrose
    (Brix)

    Refractive Index

    Specific
    Gravity (SG)

    Concentration
    %

    Range

    0-95

    1.33-1.53

    1.000-1.050

    0-95

    Resolution

    0.1

    0.0001

    0.001

    0.1

    Accuracy

    0.2

    0.0003

    0.003

    0.2

    Temperature Compensation (ATC)

    Brix (ICUMSA)

    Application Specific or Brix

    Ambient Temperature Range

    5-40°C (Ambient)

    5-95°C (Sample)

    Special Features

    -HAL- High Ambient Light detection, Error messaging, Battery life indicator, AG Test Mode, Scale library, Delay before reading, °F/°C switch, Serial & Version No, PIN control

    Prism Dish

    Moulded Stainless Steel

    Prism Seal

    Silicone

    Prism

    8mm optical glass

    Sample Illumination

    LED (yellow)

    Display

    4 1/2 digital LCD

    Key Functions

    READ, ZERO

    Keypad Material

    Silicone rubber

    Case Material

    Acrylonitrile Butadiene Styrene (ABS)

    IP Rating

    IP65

    Humidity

    <95% RH (non-condensing)

    Battery / Battery Life

    3V, 2 x AAA (LR03) / 10,000 readings

    Nett Weight 115 grams (including batteries)
    Gross Weight 295 grams
    Dimensions (instrument) 12 x 5.5 x 3.5cm (L x W x H)
    Dimensions (packed) 25 x 10 x 6.5cm (L x W x H)
    Code No. 38-01
    EAN 5060322030470
