Multiparameter benchtop meter inoLab® Multi 9630 IDS

  • SKU: 1FD570
Request a Quote
  • Description

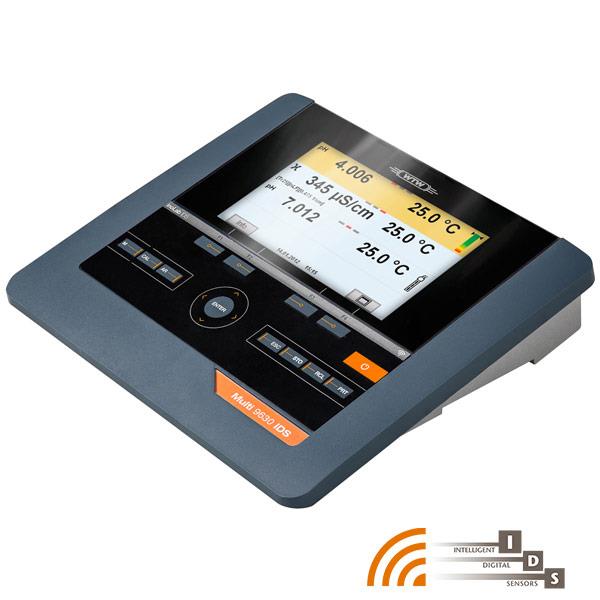

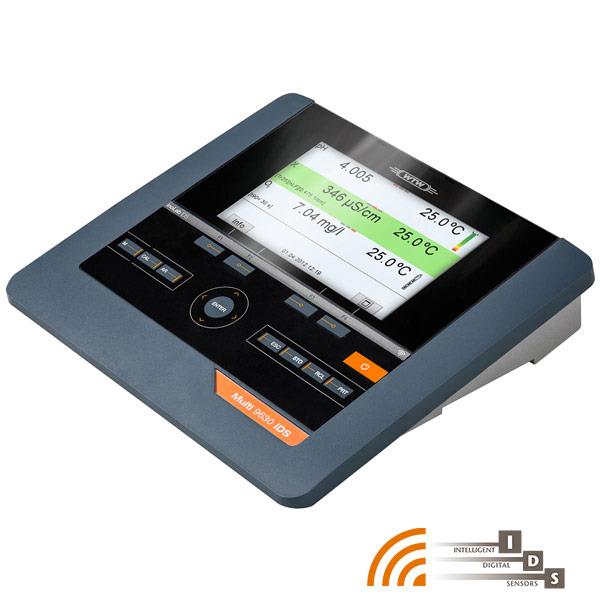

    inoLab® Multi 9630 IDS - Digital Multiparameter Lab Benchtop Meter

    inoLab® Multi 9630 IDS: Digital high-performance multi-parameter device with three inputs for pH, ISE, conductivity and dissolved oxygen and comprehensive GLP functions

    Variants
    Art.-No. Name Description
    1FD570 inoLab® Multi 9630 IDS Single unit with universal power supply, stand, manual, CD-ROM with software, USB cable
    1FD57K inoLab® Multi 9630 SET K Single unit with SenTix® 980, TetraCon® 925, FDO® 925, QSC-Kit (EVE required), Buffer 4, 7 and 10.01, 3 mol/l KCl, 0,01 mol/l KCl,  universal power supply, stand, manual, CD-ROM with software, USB cable


    Highlights:

    • Measures pH, Redox, ISE, dissolved oxygen, conductivity, and turbidity
    • Wireless ready
    • Digital sensor detection
    • Simultaneous measurement with three independent measuring channels
    • Fatigue proof reading on brilliant color display

    Modern high-performance multi-parameter meter with three galvanically isolated measuring channels pH/mV, ISE (including incremental process), conductivity and oxygen measurement. Up to three of the same or different parameters can be measured. With a large 16:9 color graphic display under a hygienic glass shield and antibacterial keyboard for use, even in critical areas. Use the new wireless modules together with the new IDS plug head sensors, be independent from cables and measure i.e. conveniently under laboratory hoods or laminar flow benches. The massive zinc diecasting lower housing adds safety against interference and ensure a safe, stable stand on the lab bench.

    Two USB interfaces to communicate with the computer, printer or USB memory stick allow the transfer of all data. An activatable user administration expands the automatic GLP documentation by additional safety and traceability. Integratable adapter for conventional pH/ORP/ISE electrodes available.

    The scope of delivery includes the MultiLab® Importer to capture data via Excel® as well as the MultiLab® User (user administration).

    Take a look at our field benchtop meter Multi-parameter portable meter MultiLine® Multi 3630 IDS.

      Zur Overview page IDS lab benchtop meters

    Learn more about choosing the right pH sensors:

     Blog: Which pH electrode do I need?

     Blog: What is the pH value?

     Blog: Calibration and adjustment of a pH electrode

  • Specifications
    Parameter pH, mV, ISE, saturation, concentration, partial pressure, conductivity, spec. resistance, salinity, TDS, temperature
    Universal measuring channels 3
    Measuring range Depends on the IDS sensor used
    Display LCD color graphic
    CMC/QSC Yes/Yes
    Data memory manual 500/10000 automatic
    Analog pH/ORP/ISE sensors ADA 94 pH/IDS DIN or ADA 94 pH/IDS BNC
    Logger manual/timer-controlled
    Interface USB A/Mini USB-B
    Printer Three preinstalled drivers (description see Operating Instructions)
    Power supply Universal power supply 100 to 240 V, 50/60 Hz
  • Accessories

Downloads

  • Manuals

    Multi 9630 IDS (German)

    Laborgerät,
    Bedienungsanleitung

    Multi 9630 IDS (English)

    Laboratory meter,
    Operating manual

    Multi 9630 IDS (French)

    Laboratory meter,
    Operating manual

    Multi 9630 IDS (Spanish)

    Laboratory meter,
    Operating manual

    OxiTop®-IDS Multi 3630/3620 IDS (English)

    OxiTop-IDS Multi 3630/3620 IDS,
    Operating Manual

    Multilab User (Manual, DE)

    Multilab User Software
    Bedienungsanleitung

    Multilab User (Manual, EN)

    Multilab User Software
    Manual

    Multilab User (Manual, FR)

    Multlab User Software
    Manual

  • Handbooks / Whitepaper

    ISE-Handbook (English)

    Download ISE Handbook

    Content:

    • Basic information - ISE
    • Description of ion-selective electrodes
    • Sample preparation
    • Measurement methods
    • Maintenance and special information
    • and more...

    pH Handbook (English)

    A guide with helpful practical tips

    Download pH Handbook

    Contents:

    • Basic concepts of potentiometry and pH measurement
    • Structure of pH electrodes
    • Potentiometry of the pH electrode
    • Buffer solutions and safety in pH measurement
    • Measuring equipment and measuring set-up
    • Practical pH measurement
    • Recommendations for use, maintenance and care of electrode

    Conductivity Handbook (English)

    A guide with helpful practical tips

    Download Conductivity Handbook

    Content:

    • Fundamentals - conductivity
    • Calibration and analytical quality assurance
    • Measurement and analytical quality assurance
    • New measurement technologies and specific applications
    • Optical oxygen measurement and more...

    Oxygen Handbook (English)

    Content:

    • Fundamentals - Oxygen sensors
    • Calibration and analytical quality assurance
    • Measurement and analytical quality assurance
    • Optical oxygen measurement
    • and more...
  • Flyers / Brochures / Catalogues
  • Software

    inoLab® Multi 96x0 - Version V2.25

    Because of continuous improvement of internal performance, we always recommend using the latest firmware version.

    Download and installation notes:

    The cable for the serial USB interface is included in the delivery.

    The connection of 800 or 500 Series ISE electrodes requires an ADA 94pH/IDS DIN (order no. 108131) respectively ADA 94pH/IDS BNC (order no. 108132) adapter.

    Existing wireless modules (only IDS WLM-M) have to be updated (V2.00) before operation. Please find the corresponding firmware update below.

    Version history – innovations:

    Version V2.25:

    • The authorizations for MultiLab Users can also be assigned without a connected sensor
    • Correction of the PCB number display

    Version V2.24:

    • Fixed the error in the display in ISE mode (device with ADA 94 pH/ISE... Adapter)

    Version V2.23:

    • Detection of the conductivity measuring cell 4320W (YSI) has been implemented

    Version V2.22:

    • Fixed a bug with manual data saving (missing data).
    • Revision of the AutoRead functionality when saving manually. "Frozen values" (HOLD function) are retained until a new measurement is initiated.
    • AutoSto extension: If desired, the measurement can be resumed automatically if there is a change in the sensor configuration or a temporary sensor failure has been resolved.
    • Implemented an additional function in the system menu to force the output of missing data

    V2.21:

    • Extension of the AutoPrint/automatic logger function: It can be set to continue the function if there is a change to the connected sensor.
    • Bugfix when operating TetraCon® (error message during calibration when switching from manual to calibrated cell constant).
    • Troubleshoot AutoRead issues with FDO® 925 when a second sensor is connected.
    • Backup copy of the memory to USB memory drive possible.
    • Bugfix MultiLab User.
    • Notification when the manual memory is full.


    V2.20:

    Bug fix for display problems

    V2.19:

    • ORP measurement: If desired measured data can be displayed in relation to a hydrogen standard electrode potential. Will be selected by press on M (mode)
    • Enhancements and bug fixes with mixed operation of wireless and tethered IDS sensors
    • Improvements with the data transfer via USB and USB printer from the automatic storage
    • Note: Automatic measurements with an interval of 1 s cannot be printed via USB printers.

    V2.18:
    Solving a problem when doing a continuous automatic printing with connected USB printer
    V2.17:
    Solves a problem when switching the meters on or off: If the meter does not turn on, first perform a reset: Please press simultaneously "Menu – Enter" and "On/Off", this will boot the meter automatically (without losing data)!
    V2.16:
    General optimizations
    V2.15:
    General optimizations
    V2.14:
    General optimizations

    MultiLab Importer-Setup32

    Software

    Version history – innovations

    V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

    • Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

    V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data)

    • New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models
    • General improvements

    V1.23: Enhancements for MultiLab Importer

    • New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)
    • Enhancement at transfer of electrochemical measurement results.

    MultiLab Importer-Setup64

    Software

    Version history – innovations

    V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

    • Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

    V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data))

    • New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models
    • General improvements

    V1.23: Enhancements for MultiLab Importer

    • New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)
    • Enhancement at transfer of electrochemical measurement results.

    MultiLab User - Software Update V2.00

    MultiLab User (PC-Software) for generation of User Administration for following devices: Turb ® 750 Serie and Multi 3630 IDS, Multi 9630 IDS, Multi 3620 IDS, Multi 9620 IDS, Multi 3510 IDS and Multi 9310 IDS.

    No administration rights required.
    Requirements: Win 10, free USB connecion or USB-Hub (USB driver)
    Version: V2_00
    Installation: Unzip "Install_MulitLabUser_V2-00.zip" and install by following on-screen instructions

    Software Update Windows 10 VCP Driver

    VCP Driver,
    MultiLine, inoLab, ProfiLine, HandyLab and Lab,
    Software Update for Windows 10

    MultiLine® Multi 3620 IDS/3630 IDS, inoLab® Multi 9620 IDS/9630 IDS - Firmware Update IDS WLM-M V3.01

    Download and installation notes:

    Before installation please read the instruction manual.
    System Requirements:
    Microsoft Windows 2000, Windows Server 2003, Windows XP, Windows Vista or Windows 7

    Version history – innovations:

    V3.01: Allows the conventional operation of OxiTop®-IDS heads which had been working at an IDS Gate.
    V3.00: Update for connecting OxiTop®-IDS measuring heads
