OxiTop®-IDS: Respirometric BOD measurement system with Bluetooth® LE

SKU: 209700

Option

Request a Quote

Description

BOD measurement and aerobic degradation tests with digital documentation

The OxiTop®-IDS is a respirometric measurement system from WTW® for standard-compliant BOD self-monitoring as well as for aerobic degradation tests in the laboratory. The system combines the proven respirometric measurement principle with modern Bluetooth wireless technology, enabling wireless data transmission to a connected measuring instrument for automatic statistical evaluation.

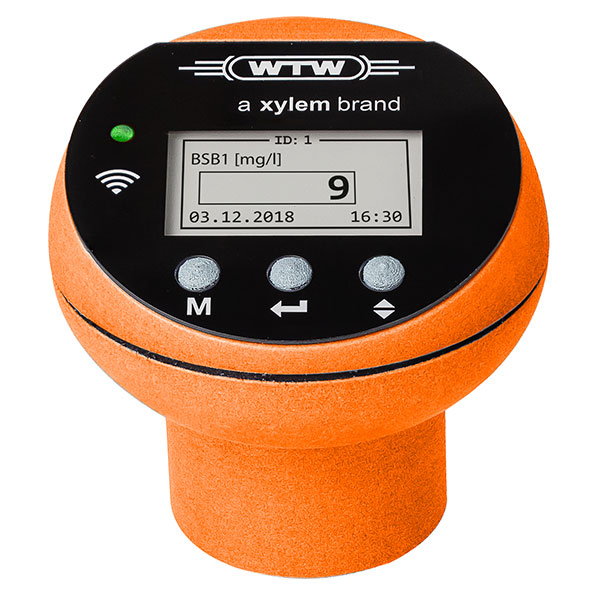

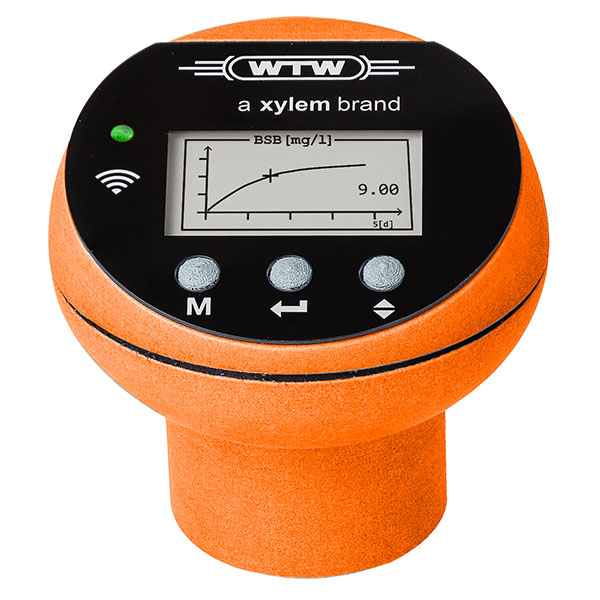

Each measuring head stores up to 360 measurement points per measurement run. For simple BOD measurement, the heads can also be used without an external measuring instrument—the results are then shown directly on the measuring head’s display.

Note on system requirements: For the full range of functions, including PC documentation, automatic evaluation and BOD special mode, a MultiLine® 3620 IDS Set WL (Part No.: 2FD56W) or MultiLine® 3630 IDS Set WL (Part No.: 2FD57W) is required, which must be ordered separately.

For whom is the system suitable?
The OxiTop®-IDS is designed for laboratories and wastewater treatment plants that perform BOD self-monitoring measurements with electronic documentation, as well as for facilities that require aerobic degradation tests with multiple parallel samples and statistical evaluation.

Variants of the OxiTop®-IDS:

Art.-No.	Name	Content
209700	OxiTop®-IDS	1 OxiTop®-IDS wireless sensor with Bluetooth® LE technology, data storage for 360 measurement points, with LCD graphic display and status LED
209702	OxiTop®-IDS 2	2 OxiTop®-IDS wireless sensors with Bluetooth® LE technology, data storage for 360 measurement points, with LCD graphic display and status LED

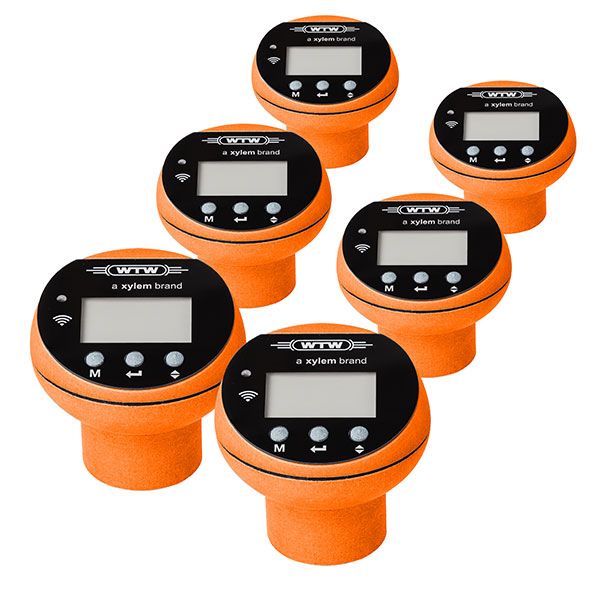

209704	OxiTop®-IDS 6	6 OxiTop®-IDS wireless sensors with Bluetooth® LE technology, data storage for 360 measurement points, with LCD graphic display and status LED

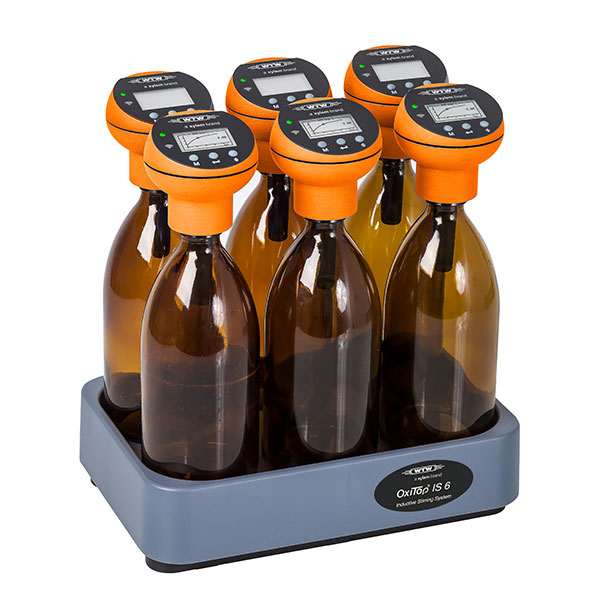

209711	OxiTop®-IDS Set 6	Large set for 6 measurement points: 6 OxiTop®-IDS wireless sensors with Bluetooth® LE technology, IS 6 stirring platform, nitrification inhibitor (25 ml), 2 overflow measuring flasks 164 ml / 432 ml, 6 magnetic stirring rods, 1 stirring rod remover, 6 sample bottles PF600 brown, 6 rubber sleeves, universal AC power adapter, 100–240 VAC, 50/60 Hz, Required: IDS Multi 3620 IDS Set WL or Multi 3630 IDS Set WL multiparameter meter – please order separately. Please order the NHP 600 CO2 absorber separately!
209713	OxiTop®-IDS Set 12	Large set for 12 measurement points: 12 OxiTop®-IDS wireless sensors with Bluetooth® LE technology, IS 12 stirring platform, nitrification inhibitor (25 ml), 2 overflow measuring flasks 164 ml / 432 ml, 12 magnetic stirring rods, 1 stirring rod remover, 12 PF600 brown sample bottles, 12 rubber sleeves, universal AC power adapter, 100–240 VAC, 50/60 Hz, Required: IDS Multi 3620 IDS Set WL or Multi 3630 IDS Set WL multiparameter meter – please order separately. Please order the NHP 600 CO2 absorber separately!
209714	OxiTop®-IDS IS 6	Small set for 6 measurement points: 6 OxiTop®-IDS measuring heads, IS 6 stirring platform for 6 measuring points, 6 sample bottles, 6 rubber sleeves, and 6 magnetic stirring rods, universal AC power supply, 100–240 VAC, 50/60 Hz Excludes NTH 600, NHP 600, and overflow measuring flask.
209716	OxiTop®-IDS IS 12	Small set for 12 measurement points: 12 OxiTop®-IDS measurement heads, IS 12 stirring platform for 12 measurement points, 12 sample bottles, 12 rubber sleeves, and 12 magnetic stirring rods, universal AC power supply, 100–240 VAC, 50/60 Hz Excludes NTH 600, NHP 600, and overflow measuring flask.

Specifications

OxiTop®-IDS
Measurement range (hPa)	500 – 1.250 hPa
Selectable time span (days)	0,5 h – 180 days
Selectable sample volumes (ml)	Fixed and customizable volume targets
BSB range	0 to 400,000 mg/l (BSB special mode)
Display	Backlit LCD display, menu-driven
Control-LED	RGB

Accessories

Check unit OxiTop® PT

Check unit for negative pressure and leakage testing for all OxiTop® measuring heads.

OxiTop® PM calibration tablets

System check of OxiTop® systems with 10 calibration tablets for checking measuring units (long term test of leakage testing and negative pressure).

Stirrer bar RST 600

Stirrer bar, minimum order 3 pcs, price per piece.

Stirrer bar remover REF 600

Stirrer bar remover.

NTH 600

Nitrifikationshemmstoff, lichtgeschützte Flasche mit 25 ml Inhalt, Konzentration 5 g/l Allylthioharnstoff.

NHP 600

2 Flaschen Natriumhydroxid-Plätzchen, zu 50 g je Flasche

Overflow measuring flask MK 97/600

Overflow measuring flask, contents 97.0 ml

Overflow measuring flask MK 250/600

Overflow measuring flask, contents 250 ml

Overflow measuring flask MK 164/600

Overflow measuring flask, contents 164 ml

Sample bottle amber PF 600

Sample bottle, amber, contents 510 ml, minimum order 3 pcs, price per piece.

Downloads

Manuals

OxiTop®-IDS Multi 3630/3620 IDS (Manual, German)
Wireless operation of OxiTop-IDS measuring heads,
Operating Manual
Download file

OxiTop®-IDS Multi 3630/3620 IDS (English)
OxiTop-IDS Multi 3630/3620 IDS,
Operating Manual
Download file

OxiTop®-IDS und OxiTop®-i WTW (English)
OxiTop®-IDS und OxiTop®-i WTW,
Manual
Download file

OxiTop®-IDS (/B) Multi 3630/3620 IDS (Spanish)
FUNCIONAMIENTO INALÁMBRICO CABEZALES DE MEDICIÓN OXITOP®-IDS (/B),
INSTRUCCIONES DE OPERACIÓN
Download file

OxiTop®-IDS (/B) Multi 3630/3620 IDS (Manual, French)
FONCTIONNEMENT SANS FIL DES TÊTES DE MESURE OXITOP®-IDS (/B),
MODE D'EMPLOI
Download file
Flyers / Brochures / Catalogues

OxiTop-IDS (Flyer, English, 999274US)
Flyer, 8 Pages, English, 999274US,
"OxiTop-IDS: More than just BOD - Biochemical oxygen demand, degradation tests, soil respiration, biogas-comprehensive and versatile"
Download file

OxiTop-IDS (Flyer, German, 999274D)
Flyer, 8 Seiten, German, 999274D,
"OxiTop-IDS: Mehr als BSB - Biochemischer Sauerstoffbedarf (BSB), Abbautests, Bodenatmung, Biogas-Universell und Flexibel"
Download file

OxiTop-IDS (Flyer, French, 999274FR)
Flyer, 8 Pages, French, 999274FR,
"OxiTop-IDS: More than just BOD - Biochemical oxygen demand, degradation tests, soil respiration, biogas-comprehensive and versatile"
Download file
Software
OxiTop®-IDS, IDS/B - Firmware Update - V1.08

Software / Firmware

Please see the corresponding chapter of the current instruction manual of Multi 3620 IDS/Multi3630 IDS for use with OxiTop®-ID.

Version history:

V 1.08:

GLP interval is displayed correctly

Improved battery status detection/improved notification of due battery replacement

V 1.06:

Optimization concerning starting values and stability

Optimized power management

Update function can be switched also via radio connection

Solving an occasional problem with the internal clock

V1.05:
General improvements, extended connectivity

V1.04:
Optimizations and stability enhancement

V1.03:

No loss of measured data when battery failure or reset

Optimized LowBat-warning

Introduction of Eco-Mode: During availability the LED flashes magenta

Download file
Software Update Windows 10 VCP Driver
VCP Driver,
MultiLine, inoLab, ProfiLine, HandyLab and Lab,
Software Update for Windows 10
Download file
Declaration of conformity (CE, UKCA)

OxiTop®-I, OxiTop®-IDS, OxiTop®-IDS/B (CE Declaration of Conformity, DE, EN, FR, ES)
Download file

OxiTop®-I, OxiTop®-IDS, OxiTop®-IDS/B (CE Declaration of Conformity, DE, EN, FR, ES)
Download file

OxiTop®-I, OxiTop®-IDS, OxiTop®-IDS/B (UKCA Declaration of Conformity, EN)
Download file
