OxiTop®-IDS AN 6 Measuring System for Anaerobic Degradation - WTW

SKU: 209725

Option

Request a Quote

Description
OxiTop®-IDS measuring system for biogas measurement/microbiology (anaerobic/(aerobic) measurement
- Convenient and accurate measurements of the biogas rate
- Specific manipulation possible due to special measuring bottles
- Safety by warning pressure function

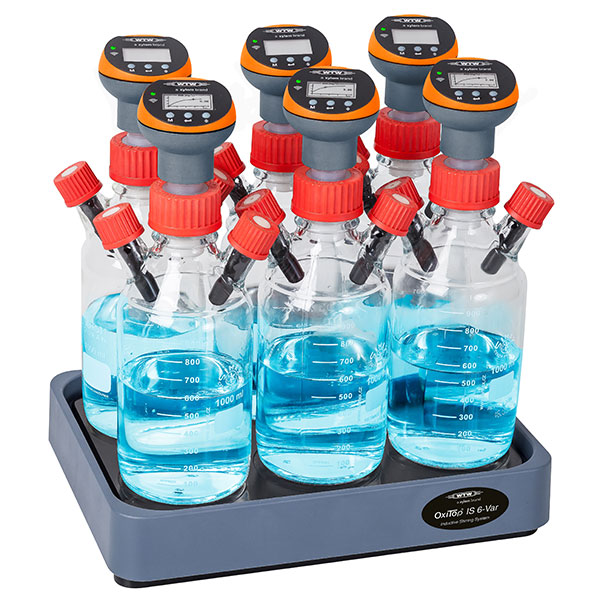

Respirometric measuring system for anaerobic operation, 6 measuring units, requires Multi 3620 IDS SET WL or Multi 3630 IDS SET WL, please order separately. Universal power supply 100 to 240 VAC, 50/60 Hz. Accessories incl. 6 MF45/1000 bottles (1000 ml) with 2 nozzles each and septum seal, 6 OxiTop® AD/SK adapters and 1 stirring platform IS 6-Var. OxiTop®-IDS/B wireless measuring heads with Bluetooth® LE technology for operation with Multi 3620 IDS or Multi 3630 IDS, memory for 360 measuring points, with backlit graphic LCD and control LED, enhanced pressure range up to 1.5 bars, H2S resistant pressure sensor for biogas measurement, for routine BOD also operable without IDS multiparameter instrument.
Specifications

Downloads

Manuals

OxiTop®-IDS Multi 3630/3620 IDS (Manual, German)
Wireless operation of OxiTop-IDS measuring heads,
Operating Manual
Download file

OxiTop®-IDS Multi 3630/3620 IDS (English)
OxiTop-IDS Multi 3630/3620 IDS,
Operating Manual
Download file

OxiTop®-IDS und OxiTop®-i WTW (English)
OxiTop®-IDS und OxiTop®-i WTW,
Manual
Download file

OxiTop®-IDS (/B) Multi 3630/3620 IDS (Spanish)
FUNCIONAMIENTO INALÁMBRICO CABEZALES DE MEDICIÓN OXITOP®-IDS (/B),
INSTRUCCIONES DE OPERACIÓN
Download file

OxiTop®-IDS (/B) Multi 3630/3620 IDS (Manual, French)
FONCTIONNEMENT SANS FIL DES TÊTES DE MESURE OXITOP®-IDS (/B),
MODE D'EMPLOI
Download file
Application Reports / Case Studys

Determination of the biological degradability - Application report
English
Download file
Flyers / Brochures / Catalogues

OxiTop-IDS (Flyer, English, 999274US)
Flyer, 8 Pages, English, 999274US,
"OxiTop-IDS: More than just BOD - Biochemical oxygen demand, degradation tests, soil respiration, biogas-comprehensive and versatile"
Download file

OxiTop-IDS (Flyer, German, 999274D)
Flyer, 8 Seiten, German, 999274D,
"OxiTop-IDS: Mehr als BSB - Biochemischer Sauerstoffbedarf (BSB), Abbautests, Bodenatmung, Biogas-Universell und Flexibel"
Download file

OxiTop-IDS (Flyer, French, 999274FR)
Flyer, 8 Pages, French, 999274FR,
"OxiTop-IDS: More than just BOD - Biochemical oxygen demand, degradation tests, soil respiration, biogas-comprehensive and versatile"
Download file
Software
OxiTop®-IDS, IDS/B - Firmware Update - V1.06
Software / Firmware
Please see the corresponding chapter of the current instruction manual of Multi 3620 IDS/Multi3630 IDS for use with OxiTop®-ID.
Version history:
New with V 1.06:
Optimization concerning starting values and stability
Optimized power management
Update function can be switched also via radio connection
Solving an occasional problem with the internal clock
V1.05:
General improvements, extended connectivity

V1.04:
Optimizations and stability enhancement

V1.03:
No loss of measured data when battery failure or reset
Optimized LowBat-warning
Introduction of Eco-Mode: During availability the LED flashes magenta
Download file
