    Digital, optical senor for the IQ SENSOR NET

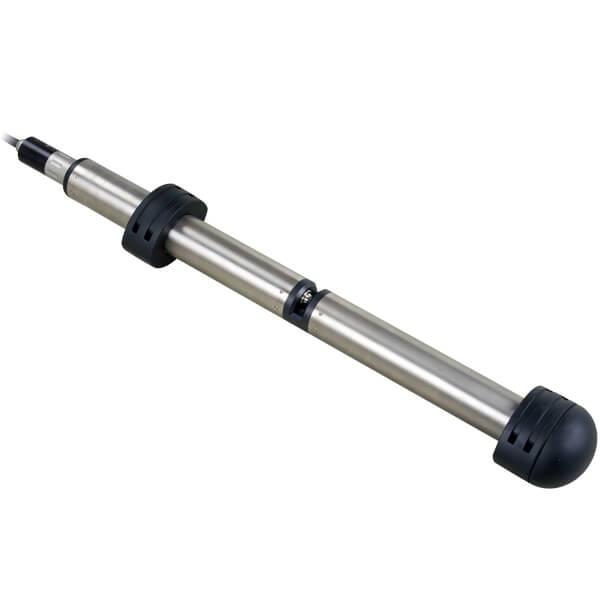

    CarboVis® 700 IQ (TS): Spectral sensor with integrated ultrasonic cleaning for the chemical-free measurement of the organic load and suspended solids concentration:
    •Calibration-free
    •Extremely robust
    •Minimal cleaning effort
    Optimal for the measurement of TOC and DOC in the inlet/effluent of municipal wastewater treatment plants.

    Thanks to its innovative optics and spectral measuring technique, this is sensor is calibration-free. An optimized referencing ensures an excellent zero point and long-term stability. This ensures reliable measuring results! The maintenance-free WTW ultrasonic cleaning technology reduces the manual cleaning effort to a minimum.
  • Specifications

    Model

    CarboVis® 701 IQ

    CarboVis® 705 IQ

    CarboVis® 701 IQ TS

    CarboVis® 705 IQ TS

    Order No.

    481048

    481050

    481049

    481051

    * The UVT-254 value is standardized to 10 mm gap width.

    Measuring method

    Spectral Measurement in the UV-VIS Range (200 – 720 nm)

    Measuring gap
    (optical layer thickness)

    1 mm

    5 mm

    1 mm

    5 mm

    Application (optimized for)

    Municipal wastewater:

    Municipal wastewater:

    Municipal wastewater:

    Municipal wastewater:

    Measuring range and Resolution

    Inlet:

    Inlet:

    COD total

    0 ... 20,000 mg/l 1 mg/l

    0 ... 20,000 mg/l 1 mg/l

    COD dissolv

    0 ... 12,500 mg/l 1 mg/l

    0 ... 12,500 mg/l 1 mg/l

    TOC

    0 ... 20,000 mg/l 1 mg/l

    0 ... 20,000 mg/l 1 mg/l

    DOC

    0 ... 12,500 mg/l 1 mg/l

    0 ... 12,500 mg/l 1 mg/l

    BOD

    0 ... 8,000 mg/l 1 mg/l

    0 ... 8,000 mg/l 1 mg/l

    SAC254 total

    0.0 ... 5,000 1/m 1 1/m

    0.0 ... 5,000 1/m 1 1/m

    SAC254 dissolv

    0.0 ... 3,000 1/m 1 1/m

    0.0 ... 3,000 1/m 1 1/m

    UVT254 total*

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    UVT254 dissolv*

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    TSS

    0.00 ... 15.00 g/l 0.01 g/l

    Aeration:

    Aeration:

    COD dissolv

    0 ... 12,500 mg/l 1 mg/l

    0 ... 12,500 mg/l 1 mg/l

    DOC

    0 ... 12,500 mg/l 1 mg/l

    0 ... 12,500 mg/l 1 mg/l

    SAC254 total

    0.0 ... 5,000 1/m 1 1/m

    0.0 ... 5,000 1/m 1 1/m

    SAC254 dissolv

    0.0 ... 3,000 1/m 1 1/m

    0.0 ... 3,000 1/m 1 1/m

    UVT254 total*

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    UVT254 dissolv*

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    TSS

    0.00 ... 20.00 g/l 0.01 g/l

    Effluent:

    Effluent:

    Effluent:

    Effluent:

    COD total

    0 ... 4,000 mg/l 1 mg/l

    0.0 ... 800.0 mg/l 0.1 mg/l

    0 ... 4,000 mg/l 1 mg/l

    0.0 ... 800.0 mg/l 0.1 mg/l

    COD dissolv

    0 ... 4,000 mg/l 1 mg/l

    0.0 ... 800.0 mg/l 0.1 mg/l

    0 ... 4,000 mg/l 1 mg/l

    0.0 ... 800.0 mg/l 0.1 mg/l

    TOC

    0 ... 2,500 mg/l 1 mg/l

    0.0 ... 500.0 mg/l 0.1 mg/l

    0 ... 2,500 mg/l 1 mg/l

    0.0 ... 500.0 mg/l 0.1 mg/l

    DOC

    0 ... 2,500 mg/l 1 mg/l

    0.0 ... 500.0 mg/l 0.1 mg/l

    0 ... 2,500 mg/l 1 mg/l

    0.0 ... 500.0 mg/l 0.1 mg/l

    BOD

    0 ... 2,500 mg/l 1 mg/l

    0.0 ... 500.0 mg/l 0.1 mg/l

    0 ... 2,500 mg/l 1 mg/l

    0.0 ... 500.0 mg/l 0.1 mg/l

    SAC254 total

    0.0 ... 3,000 1/m 1 1/m

    0.0 ... 600.0 1/m 0.1 1/m

    0.0 ... 3,000 1/m 1 1/m

    0.0 ... 600.0 1/m 0.1 1/m

    SAC254 dissolv

    0.0 ... 3,000 1/m 1 1/m

    0.0 ... 600.0 1/m 0.1 1/m

    0.0 ... 3,000 1/m 1 1/m

    0.0 ... 600.0 1/m 0.1 1/m

    UVT254 total*

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    UVT254 dissolv*

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    0.0 ... 100.0 % 0.1 %

    TSS

    0 ... 4,500 mg/l 1 mg/l

    0.0 ... 900.0 mg/l 0.1 mg/l

    Flow rate

    ≤ 3 m/s

    Pressure Resistance

    Maximum 1 bar (incl. sensor connection cable)

    Electrical connections

    2-wire shield cable with quick fastener to sensor

    Electromagnetic
    Compatibility

    EN 61326, Class B, FCC Class A
    Intended for indispensable operation

    Certifications

    CE

    Mechanical

    Housing: Titan Grade 2, PEEK; Window: Sapphire glass
    Protection class: IP 68

    Weight (without cable)

    Approx. 8.82 lb (4 kg)

    Warranty

    2 years for defects in quality

Downloads

CarboVis 701 IQ TS; CarboVis 705 IQ TS (English)

IQ Sensor Net carbon sum parameter / total suspended solids sensor
