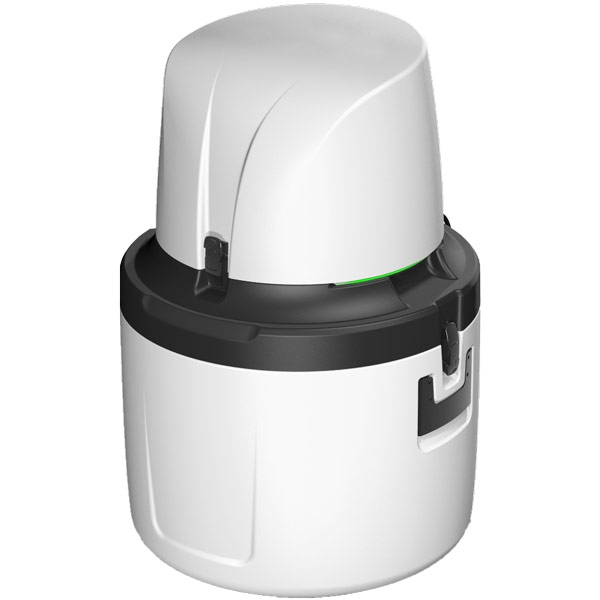

  • WTW-503280-PB_M_LR24-portable_sampler-pers-closed.jpg

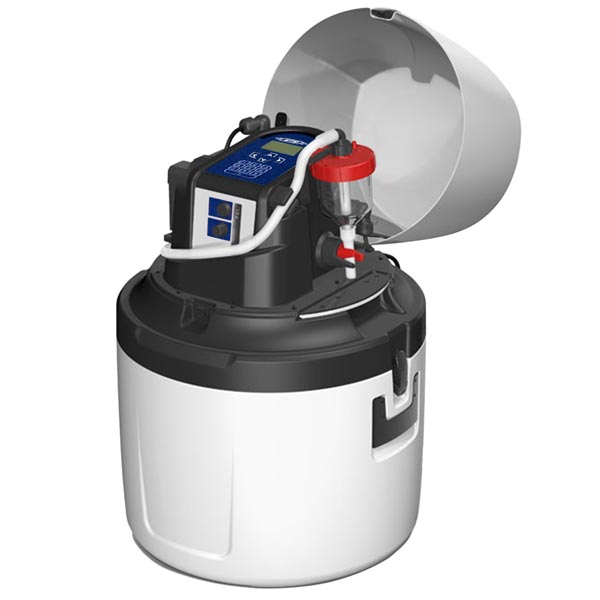

Portable Sampler with vacuum dosing system

  • SKU: 503280
Request a Quote
  • Description

    Portable sampler with integrated rechargeable battery - PB-M with vacuum pump and different sample fractionation methods

    • time, volume, event proportional oder manual sampling
    • Vacuum system with dosing volume of 20 to 350 mLL
    • low weight

    Portable samplers in good hands. The lightweight design and the compact housing guarantee a unique comfort. With the state-of-the-art operation, the device assures a carefree sampling.

  • Specifications

    * further configurations on request
    ** expandable per meter, max. length 98 ft (30 m)

    Model

    PB-M-S

    PB-M-L

    Sampling method

    Vacuum-System

    Sampling fractioning

    Collection container (PE):
    1 x 13 l

    Bottles (PE):
    24 x 1 l*

    Dosing

    20 ... 350 ml

    Sampling modes

    Time-, amount-, event-proportional or manual

    Volume accuracy

    < 2.5 % or ± 3 ml

    Sampling temperature

    +32 ... +104 °F (0 ... +40 °C)

    Ambient temperature

    +32 ... +122 °F (0 ... +50 °C)

    Suction height

    Max. 21 ft (6.5 m) at 1013 hPa

    Suction tube

    PVC, 16 ft (5 m), 0.39 in (10 mm), fabric reinforced**

    Signal inputs

    2 x 0(4) ... 20 mA
    8x digital (amount, event, freely programmable)

    Programming

    12 programs (freely programmable); with function to link programs

    Program start

    Immediately, at a certain time, by an external signal

    Program stop

    End of sampling program after one program run, continuous operation or x-runs

    Pause mode

    Interruption of program run at any time

    Languages

    Multi-language, selectable

    Signal outputs / status messages

    8 x digital, 1 x collective malfunction message

    Data logging

    3000 entries, nonvolatile data memory, storage of sampling and malfunction data (sampling extraction, bottle changes, messages, external signals)

    Interfaces

    Mini-USB, RS422/485, Ethernet RJ45

    Housing

    ABS, double-walled insulation

    Wetted materials

    PC, PVC, silicone, PS, PE

    Dimensions (D x H)

    15.8 x 23.8 in (400 x 605 mm)

    19.7 x 29.1 in (500 x 740 mm)

    Weight

    17.6 lb (8 kg)

    26.5 lb (12 kg)

    Power supply

    12 V

    Standards

    CE, sampling according to ISO 5662-10 and EN 16479

    Protection Rating

    IP66 (power supply)

    Warranty

    2 years on defects in quality according to § 10 terms of conditions
