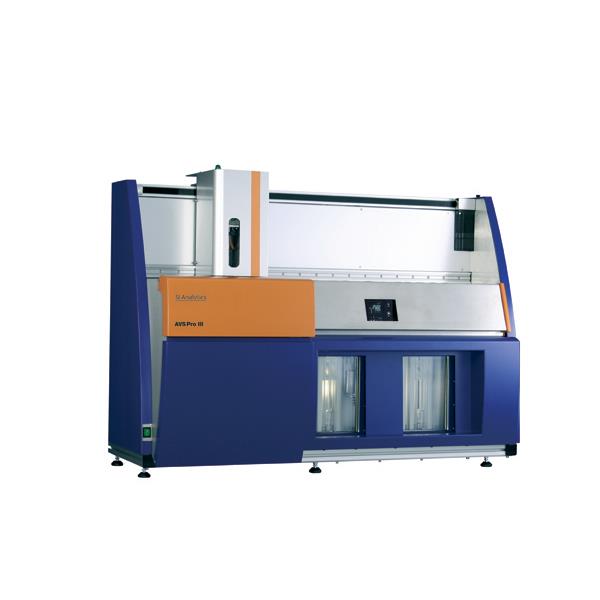

Viscometry Autosampling system, AVS® Pro III, basic unit

SKU: 285420030

Option

Request a Quote

Description

Automatic sampler for viscosity measurement using capillary viscometers

The AVS® Pro III automatic sampler is a PC-controlled, fully automated instrument for the determination of the viscosity, viscosity number, intrinsic viscosity etc.
In spite of the high sample throughput, AVS® Pro III provides maximum accuracy and reproducibility. Furthermore, working with the automatic sampler is easy and allows unattended 24 hour operation.

The AVS® Pro III, meanwhile in its 3rd generation with many improvements, has proved itself especially for quality control of polymers. Worldwide, most producers of polyamide, polyesters and other polymers trust in the AVS® Pro III. And increasingly, also many polymer processing companies are using the AVS® Pro III in their QC.

Depending on application and customer’s demands, the instrument can be delivered in various configurations:

• in general 2 to 4 measuring positions
• macro or micro dosing modul, depending on viscometer types
• two rinsing options: using next sample or rinsing agent with subsequent drying
• variable waste system

The configuration is adjusted together with the customer.

Get a 3-year warranty

Specifications

Overall dimensions WxDxH	130 x 62 x 100 [cm]
Weight	ca. 70 kg, without thermostat bath and vacuum pump
Measuring range flow time	up to 999.99 s; resolution 0.01 s
Accuracy of time measurement	± 0.01 s; however not better than 0.1%
Measuring range viscosity	depending on viscometer, max. 1200 mm²/s
Number of measuring positions	1 … 4
Number of samples in rack	16 (100 ml), 56 (20 ml)
Power supply	115 - 230 V, 50...60 Hz
Viscometer types	Ubbelohde (DIN, ASTM, Micro), Micro Ostwald and Cannon-Fenske Routine, made by SI Analytics®
Measuring temperatur	-40…+100 °C, depending on thermostat bath und measuring stand
Compatible thermostat bathes	All glass panelled thermostat bathes of SI Analytics®

Accessories

Measuring stand anodised aluminium

AVS®/S
for use with capillary viscometers of type: 501 .., 516 .., 517 .., 518 .., 525 .., 526 .., 530 .., 532 .., 536 .., 537 .., 538 .., 540 .. and 541 .. in thermostatic baths from -80 to +80°C.
MEASURING STAND AVS/S

Measuring stand made of PVDF

AVS®/SK
temperature range from -40°C to +80°C
MEASURING STAND AVS/SK
