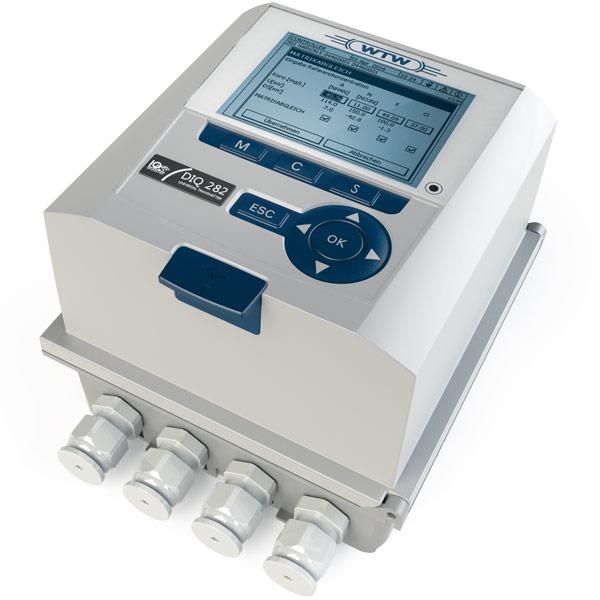

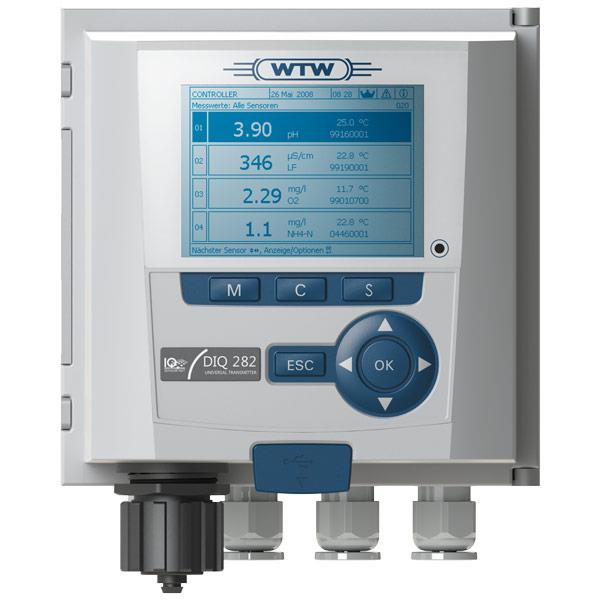

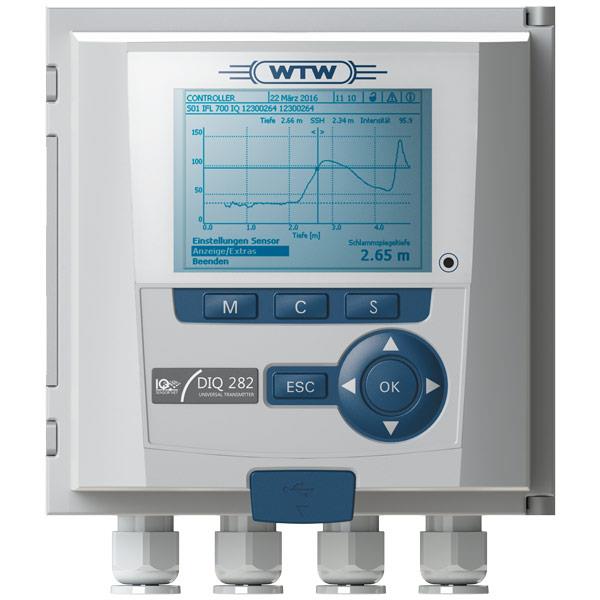

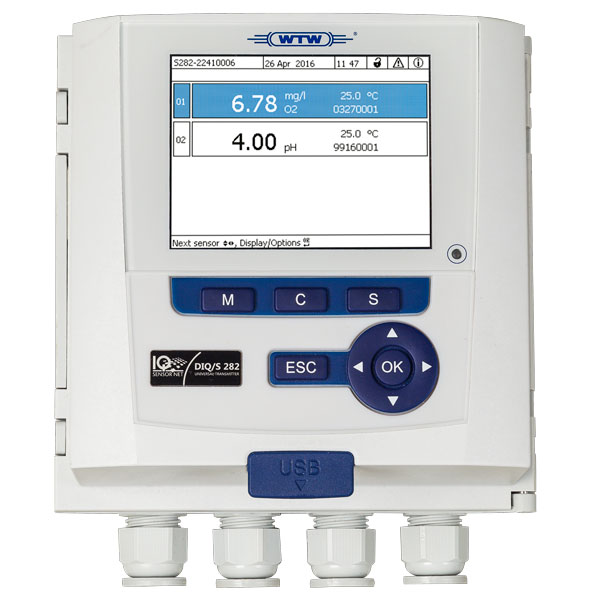

DIQ/S 282 – Controller for the IQ SENSOR NET - WTW

  • SKU: 472110
Request a Quote
  • Description
    Digital system to monitor wastewater treatment plants, with up to 2 sensors
    Controller for small and mid-sized wastewater treatment plants including USB-interface and internal data logger– up to 2 sensors, all parameters, available anytime:
    •All parameters available (O2, NH4, NO3, COD, PO4, sludge level, …)
    •USB-interface and internal data logger by default
    •Convenient and available anytime via Ethernet-interface
    All parameters at a glance:
    The new controller DIQ/S 282 is available with different output signals. Besides the reagent-free measurement of COD, all other parameters needed for a wastewater treatment plant can be measured. By the combination of multi-parameter sensors, up to 20 parameters can be measured and displayed simultaneously.

    Up-to-date, safe and independent:
    All versions include an USB-interface and an internal data logger by default. Thereby, your valuable data and system configurations can be stored quick and easy. Stay up-to-date with our software updates free of charge and improve your controller for upcoming measurement tasks.

    Convenient and available at any time:
    Via the connection to the internet you can access your IQ SENSOR NET anytime and anywhere. Monitoring and support from remote saves time, money and nerves. Via the RS 485- and Ethernet- interfaces, the fieldbuses PROFIBUS, Modbus RTU, Ethernet/IP, Modbus TCP and PROFINET are available.

    Easy replacement:
    The DIQ/S 282 is compatible to almost all currently available components of the IQ SENSOR NET.
  • Specifications

    Max. number of sensors

    2

    IQ Sensor Net connections

    DIQ/S 282-CR3(-E) (/24V) 1; all others 2

    Outputs

    3 x (0) 4 ... 20 mA, 3 x Relays, Ethernet interface for remote access, Ethernet fieldbusses
    PROFIBUS or Modbus RTU (options see scopes of delivery)

    Display

    Graphic TFT Display; Resolution: 320 x 240 pixel; backlit

    Control Functions/
    Function Keys

    5 operating keys: measurement (M), calibration (C), set/system settings (S),
    3 master keys for functions:
    2 keys for: confirmation/switching menu O.K. (OK), escape (ESC)
    Arrow keys for rapid selection of software functions and input of alpha-numeric values (up), (down)

    Electric Supply

    100 … 240 VAC (50/60 Hz), 24 V AC/DC

    MIQ Module Coupling at Rear

    Combined mechanical and electrical connection, for rapid coupling to MIQ modules, up to 3 modules as a stack mounted unit possible

    Cable Feeds

    4 screw cable glands M 16 x 1.5 (expansible to M 20 if required)

    Terminal Connections

    Screw terminal strips; Terminal area for solid conductors: 0.2 ... 4.0 mm2
    Terminal area for flexible conductors: 0.2 ... 2.5 mm2; accessible by opening cover

    IQ Sensor Net Terminal Connections

    Terminal connections for the IQ Sensor Net for connecting sensors

    Ambient Conditions

    Operating temperature: -4 °F … 131 °F (-20 °C … +55 °C); Storage temperature: -13 °F … 149 °F (-25 °C … +65 °C)

    Housing Material

    PC – 20 % GF (polycarbonate with 20 % fiberglass)

    Protection Rating

    IP 67 / corresponding to NEMA 4X (not for direct conduit connections). Conduits need to be connected with flexible adapters (CC-Box), respectively with adapters CC-PM..

    Dimensions (W x H x D)

    144 x 144 x 125 mm (5.67 x 5.67 x 4.92 in.)

    Weight

    Approx. 1,2 kg (2.6 pounds)

    Certifications

    CE

    Electromagnetic Compatibility

    EN 61326-1, Class A; FCC Class A

    Integrated Overvoltage Protection

    According to EN 61326-1 enhanced overvoltage protection for the entire system

    Connection Medium Cable

    IQ Sensor Net cable SNCIQ or SNCIQ/UG (underground cable with additional PVC coating): 2-wire with shield; 2 x 0.75 mm2; filler cord for easy connection of shield: 0.75 mm2; pressure resistant to 10 bar

    Connection Characteristics

    Power supply and data transmission on these wires; resistant to polarity reversal with respect to switched shield and inner conductor (no damage); comprehensive EMC shield control; Cable topology within the IQ Sensor Net system as required, e.g. in the form of a line, tree, star; total cable length max. 250 m (273 yds)

    Warranty

    3 years for defects of quality

Downloads

MIQ/CR3; DIQ/CR3 (English)

IQ Sensor Net output module
Operating manual

MIQ/CR3; DIQ/CR3 (German)

IQ Sensor Net Ausgangsmodul,
Bedienungsanleitung

PROFIBUS GSD file (for current IQSN-Software), Version 1.24

File is needed on PLC to detect the IQ SENSOR NET with software version ?3.50:
DIQ/S 282-PR(/24V)
•DIQ/S 284-PR(/24V)
•MIQ/MC2-PR
•MIQ/MC3-PR
•MIQ/2-PR
•MIQ/3-PR
•DIQ/S 182-PR(/24V)
•DIQ/S 182 XT-4-PR(/24V)
Version history - innovations
•V 1.24: only for above mentioned controllers with software version ?3.50

PROFIBUS GSD file (for older IQSN software and controller), version 1.22

File is needed on PLC to detect IQ SENSOR NET with software version <3.50:
MIQ/MC2-PR
•MIQ/2-PR
•DIQ/S 182-PR
•DIQ/S 182 XT-4-PR
as well as for the older controller modules
•MIQ/MC-(A)-PR
•MIQ/(-A)-PR
Version history - innovations
•V 1.22: only for above mentioned controllers with software version ?3.50 or older controllers
