Flow thorugh armatures, cables and further accessoriesof our drinking water portfolio - for parameters pH/ORP, Cond and chlorine
Flow thorugh armatures, cables and further accessoriesof our drinking water portfolio
Flow-though armatures:

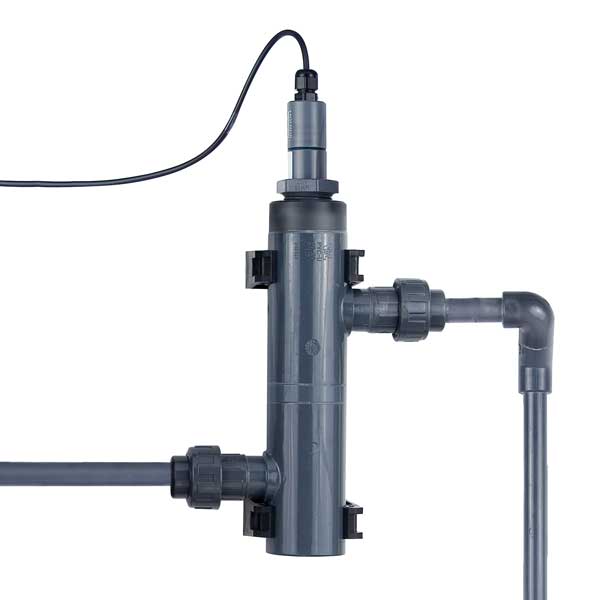

D-CL: Flow-thru armature for chlorine sensors FCML 68/412 (N) and TCML (N). 1 sensor mountable, DN 15.
D 220: Angular flow thru armature for conductivity and oxygen sensors with PG 13.5 screw thread. Material: PVC.
D 222/3: Flow thru armature for pH, conductivity and ORP sensors with PG 13.5 screw thread. Material: PVC
Connection cables:
AK-Cl 298: 2-wired cable to connect the chlorine sensors FCML 68/412 (N) and TCML (N) to the controllers Cl 298 and Multiline 1000, 5m. When ordering a drinking water panel,
the cable does not need to be ordered separately.
AK-S7/1: Cable ORP/pH, S7 connector, 1 m (3.3 ft), included in pre-assembled panel MULTILINE 1000
AK-CL: 4-wire connection cable (1m/3.3 ft) for chlorine electrodes FCML 412-S, FCML 68-S, TCML-S for connection to the transmitter CL 7010.
Further accessories:
DFL-G1/4: Flow meter with frequency output, PVC, DN10
Pr-DN10: Pressure reduction valve. Input pressure max. 16 bar, outlet pressure 1.5-6 bar adjustable. DN10 for DW Panel with MULTILINE 1000
Do-DN10: Dosing valve for flow regulation (0-90 l/min, DN10 PVC)
Cal/C: Calibration console designed for drinking water panel MULTILINE 1000, PVC white
