pH electrodes and sensors for drinking water - WTW

pH electrodes and sensors for drinking water - WTW

  • SKU: 109119
Request a Quote
  • Description
    pH electrodes and sensors to be conencted to digital and analog systems
    pH electrodes and sensors to be connected to the IQ Sesnor Net, pH 298 and MULTILINE 1000:
    • Electrode with arming for IQ SENSOR NET
    • Electrode and sensor for analog systems
    • Easy handling

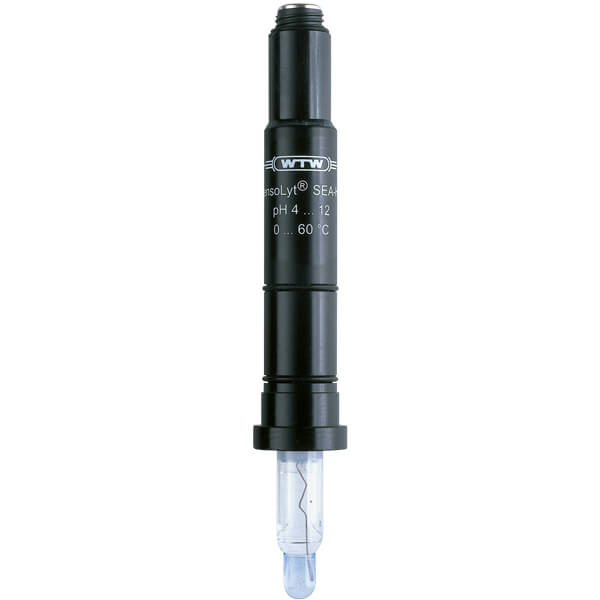

    for the measurement of pH in drinking water, WTW offers different solutions. For our digital system IQ SENSOR NET, we recommend the electrode SensoLyt® DWA. By ist arming, it can be installed within the pH armature SensoLyt® 700 IQ and therefore operated at the IQ SENSOR NET.

    For the measurement with analog systems, we recommend different products, depending on the local installation possibilities: The electrode SensoLyt® DW (without arming, with S7 plug head) or the sensor SenTix® ML 70 (with PG 13,5 thread, with S7 plug head). Both - electrode and sensor - can be connected to the analog transmitters pH 298 and MULTILINE 1000.
  • Specifications

    SensoLyt® Models

    SEA-HP

    SEA

    SE

    DWA

    DW

    ECA

    EC

    PtA

    Pt

    Order No.

    109118

    109115

    109100

    109119

    109103

    109117

    109102

    109125

    105412

    Reference System

    Gel polymer solid electrolyte

    Modified gel electrolyte

    Gel electrolyte

    Gel polymer solid electrolyte

    Diaphragm

    2-hole junction

    Ceramic junction

    1-hole junction

    2-hole junction

    Pressure Resistance

    at 20 °C

    10 bar

    10 bar

    —

    10 bar

    —

    10 bar

    —

    10 bar

    —

    at 60 °C

    10 bar

    1 bar

    —

    1 bar

    —

    1 bar

    —

    1 bar

    —

    Temperature Range

    0 ... +60 °C

    Measuring Range / Range of Application

    4 ... 12 pH

    2 ... 12 pH

    0 ... 14 pH

    2 ... 12 pH

    ±2.000 mV ***

    Mechanical

    Shaft

    Glass

    Armor

    POM

    PVC-U

    —

    PVC-U

    —

    PVC-U

    —

    PVC-U

    —

    Connection head

    PPS-GF 40

    O rings

    FPM (Viton)

    Watering cap

    PE

    Temperature sensor

    Integrated in SensoLyt® armature

    Electrical Connection

    Watertight plug-in system (S7)

    Warranty

    6 months on defects in quality according to § 10 terms of conditions
