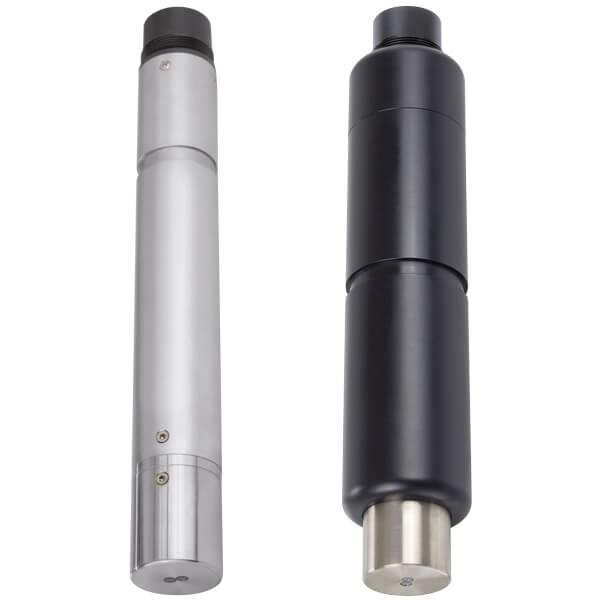

  • WTW ViSolid® 700 IQ (product family image)

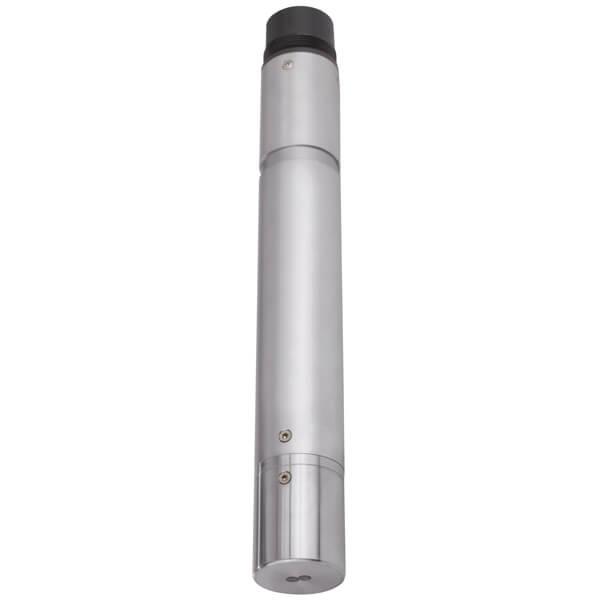

  • WTW ViSolid® 700 IQ (product image)

IQ suspended solids sensor - WTW

  • SKU: 600012
Request a Quote
  • Description

    Digital suspended solids sensor with ultrasonic cleaning, connectable to the IQ Sensor Net

    ViSolid®: Optical sensors for the in-situ use to measure suspended solids via scattered light and direct back-scattering with ultrasonic cleaning system:

    • Ultrasonic cleaning without mechanics
    • Extremely low-maintenance
    • Highly accurate factory calibration
    • High operational safety (sensor check function)

    The ultrasonic cleaning system ensures the low-maintenance and continuously reliable measuring operation of the sensors, which are therefore very suited for extreme applications, such as wastewater treatment plants.

    With higher particle concentrations, the procedures of turbidity measurement are only suitable in some cases; here, you will need special measuring techniques to determine the concentration. WTW uses two procedures, which are used depending on the suspended solids concentration: With low concentrations, a scattered light measurement is used; for higher concentrations, the direct back-scattering yields optimal results.

    Models:

    • ViSolid® 700 IQ: Digital suspended solids sensor with integrated ultrasonic cleaning (please order cable separately)
    • ViSolid® 700 IQ SW: The sea water model includes the sensor for use in special media such as desalination plants, seawater or brackish water, fish farming or high salt content. All wetted parts are made of titanium and plastic and are therefore extremely resistant to corrosion.

    Applications:

    • Wastewater
      • Sludge concentration
      • Monitoring/Controlling of sludge cycle
    • Drinking water
    • Industry
    • Surface water
    • Aquaculture
  • Specifications

    ViSolid®

    700 IQ

    700 IQ SW*

    Order No.

    600012

    600013
    * SW: Sensor as sea water model (with plastic arming (POM))
      Icon: CE Product Certification for Xylem Analytics Products   Icon: UKCA Product Certification for Xylem Analytics Products   2 years warranty from Xylem Analytics for this product

    detailed technical data see data sheet D2.06

    Measuring method

    Procedure for measuring scattered light

    Measuring range

    g/l SiO2
    % SiO2

    0 ... 300 g/l SiO2
    0 … 30% SiO2

    g/l TSS
    % TSS

    0 ... 1000 g/l TSS
    0 … 100% TSS

    Resolution

    g/l SiO2
    % SiO2

    Automatic according to measuring range 0.1 mg/l ... 1 g/l
    Automatic according to measuring range 0.001 % ... 0.01 %

    g/l TSS
    % TSS

    Automatic according to measuring range 0.1 mg/l ... 1 g/l
    Automatic according to measuring range 0.001 % ... 0.1 %

    Calibration

    Typical sludge characteristics stored: matrix type 1, matrix type 2
    Calibration by user: adjustment via correction factor, 1-point or multi-point calibration possible

    Cleaning System

    Ultrasound cleaning system

    SensCheck

    Contamination detection of optical window; failure of cleaning system

    Ambient Conditions

    Operating temperature: 32 ... 140 °F (0 ... 60 °C);
    ultrasonic cleaning system: 32 ... 104 °F (0 ... 40 °C) (overheating protection);
    Storage temperature: 23 ... 149 °F (-5 ... +65 °C)

    Electrical connections

    2-wire shield cable with quick fastener to sensor

    Weight (without cable)

    Approx. 2.18 lb (900 g)

    Approx. 3.13 lb (1420 g)
  • Accessories
    Test standards for turbidity and suspended solids sensors

    Test standards for turbidity and suspended solids sensors

    Test standards for VisoTurb® and ViSolid® IQ sensors
    Cable

    Cable

    Sensor and connection cables for the IQ SENSOR NET
    Sensor Mounting

    Sensor Mounting

    Extensions and holders to mount 1 to 3 IQ sensors or analog process sensors
    Flow-through Adapters

    Flow-through Adapters

    Flow-through Armatures and weld-in sockets made of PVC or stainless steel. Please order suitable sensor adapter
    (ADA-X) separately.
    Adapters

    Adapters

    Adapters to install 40 mm sensors in flow-through aramutres and vessels
