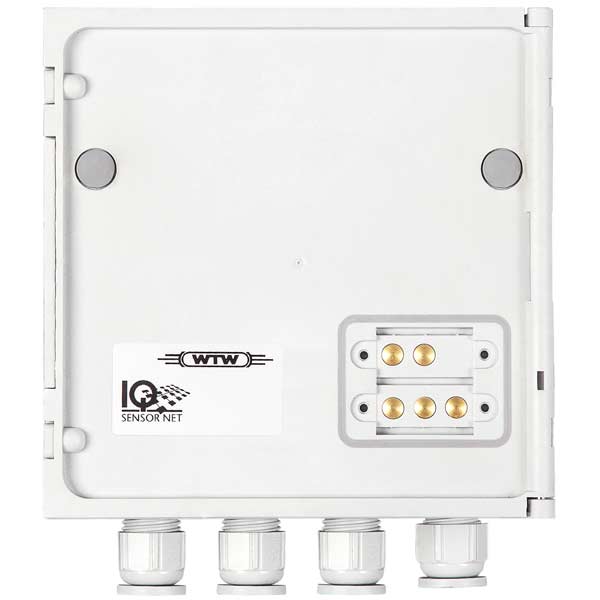

MIQ modules for outputs, inputs and communication - WTW

MIQ modules for outputs, inputs and communication - WTW

  • SKU: 480015
Request a Quote
  • Description
    Modules for the IQ SENSOR NET, with current outputs and inputs, relays, digital interfaces
    Module to transfer the measured values or with a alert/alarm function – thanks to the modular principle and simple installation this is individually customizable:
    •Can be combined in any configuration thanks to the modular system - no matter where, when or how
    •Simple installation - the stacking technique of the IQ SENSOR NET saves additional installation materials, work effort and time
    •Integrated lightning protection ensures high operational safety in any weather
    Depending on the requirements of your measuring situation, the suitable modules will be available for you to combine them as needed: For example, you will receive digital output modules for the MODBUS or PROFIBUS connection.

    The analog output modules will expand your IQ SENSOR NET by six relay or power outputs. We also offer a combined module with three power and three relay outputs. The analog output modules can be combined as required, up to a max. of 48 output channels (total of power outputs and relays in the system 2020).

    With the modle MIQ/IC2, you will expand the system by two power inputs and you will also allow the connection of separate monitors and analyzers into the IQ SENSOR NET.
  • Specifications

    Models MIQ module

    MIQ/3-MOD

    MIQ/3-PR

    MIQ/CR3

    MIQ/C6

    MIQ/R6

    MIQ/IC2

    Order No.

    471026

    471026

    480014

    480015

    480013

    480016

    MIQ Module Coupling at Front

    Combined mechanical and electrical connection for rapid docking and removal of the MIQ/TC 2020 3G
    Terminal/Controller (configurated as Terminal) and for docking additional modules

    MIQ Module Coupling at Rear

    Combined mechanical and electrical connection, for rapid coupling to MIQ modules, up to 3 modules as a stack mounted unit possible

    Cable Feeds

    3 screw cable glands M 16 x 1.5 and 1 USB

    4 screw cable glands M 16 x 1.5

    Terminal Connections

    Screw terminal strips
    Terminal area for solid conductors: 0.2 ... 4.0 mm2
    Terminal area for flexible conductors: 0.2 ... 2.5 mm2
    accessible by opening cover

    IQ Sensor Net Terminal Connections

    Terminal connections for the IQ Sensor Net are available on each module and can be used as required:
    - for connecting sensors
    - as an input/output or for looping through/branching of the IQ Sensor Net cable

    Other Functions

    Two LEDs, yellow and red, for monitoring the operating voltage of the IQ Sensor Net; IQ Sensor Net ­connection, Integrated local identity function; Integrated switchable terminal resistor (SN terminator)

    Electric Supply

    Directly via the IQ Sensor Net

    Ambient Conditions

    Operating temperature: -4 °F … 131 °F (-20 °C … +55 °C); Storage temperature: -13 °F … 149 °F (-25 °C … +65 °C)

    Housing Material

    PC – 20 % GF (polycarbonate with 20 % fiberglass)

    Protection Rating

    IP 66

    IP 66

    IP 67

    IP 66

    IP 67

    IP 66

    corresponding to NEMA 4X (not for direct conduit connections). Conduits need to be connected with flexible adapters (CC-Box), respectively with adapters CC-PM..

    Dimensions (W x H x D)

    5.67 x 5.67 x 2.05 in. (144 x 144 x 52 mm)

    Weight

    Approx. 1.1 pounds (0.5 kg)

    Certifications

    ETL, cETL (conforms with relevant UL and Canadian standards), CE

    Electromagnetic Compatibility

    EN 61326-1, Class B; FCC Class A

    Integrated Overvoltage Protection

    According to EN 61326-1 enhanced overvoltage protection for the entire system, implemented in each component

    Connection Medium Cable

    IQ Sensor Net cable SNCIQ or SNCIQ/UG (underground cable with additional PVC coating): ­
    2-wire with shield; 2 x 0.75 mm2; Filler cord for easy connection of shield: 0.75 mm2; pressure resistant to 10 bar

    Connection Characteristics

    Energy and data transfer via 2 wire technique; resistant to reversed polarity; Comprehensive EMC shield control; cable topology within IQ Sensor Net system as required, e.g. in the form of a line, tree, star, multiple star; Total cable length: max. 1000 m/1094 yds (without signal amplifying), with signal amplifying module MIQ/JBR additional 1000 m/1094 yds (max 3000 m/3282 yds)

    Warranty

    3 years for defects of quality

Downloads

MIQ/C6 (English)

IQ Sensor Net output module
Operating manual

MIQ/C6 (German)

IQ Sensor Net Ausgangsmodul,
Bedienungsanleitung

PROFIBUS GSD file (for current IQSN-Software), Version 1.24

File is needed on PLC to detect the IQ SENSOR NET with software version ?3.50:
DIQ/S 282-PR(/24V)
•DIQ/S 284-PR(/24V)
•MIQ/MC2-PR
•MIQ/MC3-PR
•MIQ/2-PR
•MIQ/3-PR
•DIQ/S 182-PR(/24V)
•DIQ/S 182 XT-4-PR(/24V)
Version history - innovations
•V 1.24: only for above mentioned controllers with software version ?3.50

PROFIBUS GSD file (for older IQSN software and controller), version 1.22

File is needed on PLC to detect IQ SENSOR NET with software version <3.50:
MIQ/MC2-PR
•MIQ/2-PR
•DIQ/S 182-PR
•DIQ/S 182 XT-4-PR
as well as for the older controller modules
•MIQ/MC-(A)-PR
•MIQ/(-A)-PR
Version history - innovations
•V 1.22: only for above mentioned controllers with software version ?3.50 or older controllers
