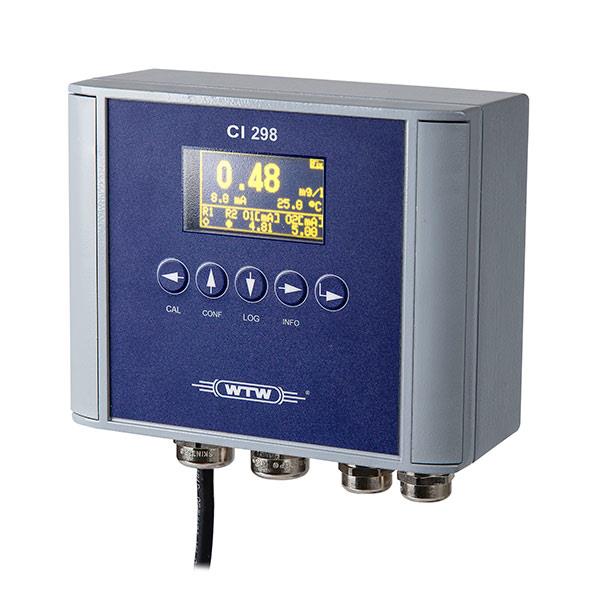

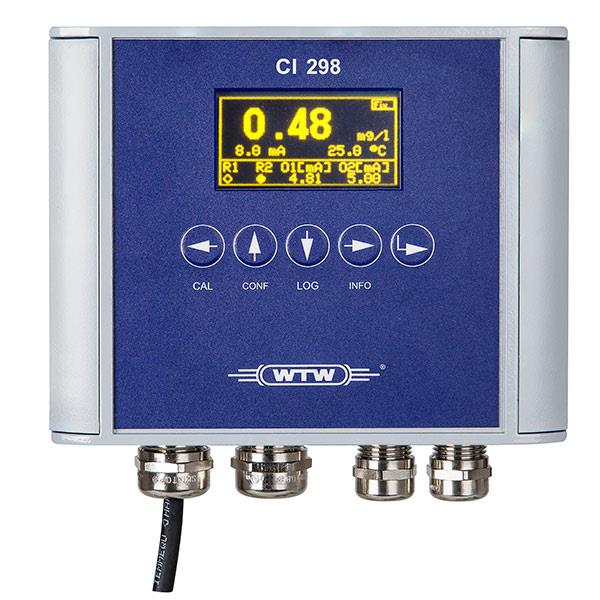

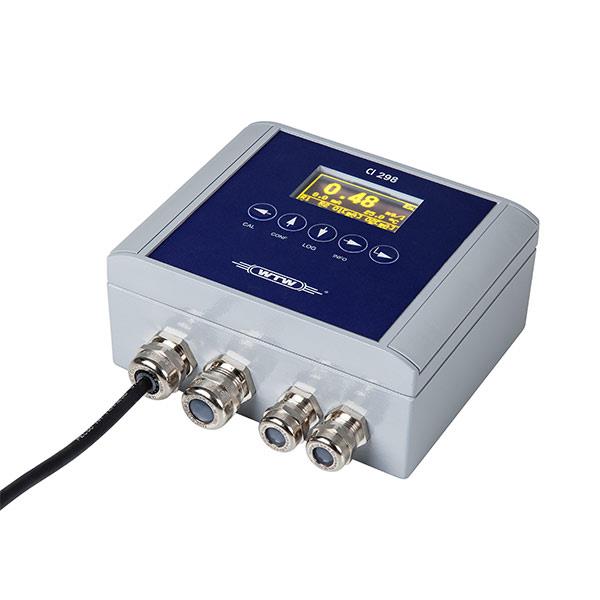

Analog chlorine monitor CL 298 - WTW

  • SKU: 801254
Request a Quote
  • Description
    Analog controller to measure free and total chlorine
    CL 298 – user-friendly monitor to measure free or total chlorine - your robust partner for reliable chlorine measurements:
    •User-friendly – large display and clear menu structure
    •flexible – measurement of free and total chlorin
    •economic – in purchase and costs-of-ownership
    The CL 298 is a very robust meter thanks to his aluminium housing. It is equipped with 2 current outputs, 2 relays and a MODBUS interface by default.
  • Specifications

    Model

    pH 298

    Oxi 298

    LF 298

    Cl 298

    Order No.

    191230, 191232, 191234

    291230, 291234

    391230, 391234

    801254

    *) Please note: The permitted operating voltage of the sensor can vary considerably

    Parameter

    pH/ORP

    Oxygen

    Conductivity

    Chlorine, elektrochemical

    Measuring Range

    -2 … 16 pH
    -2000 … +2000 mV

    0 … 20 mg/l
    0 … 200 %

    0 … 500 mS/cm, different measuring ranges adjustabel

    0 … 2 mg/l

    Temperature Measurement *)

    -10 … 130 °C
    NTC or Pt1000
    or Pt100

    -10 … 130 °C
    NTC or Pt1000

    -10 … 130 °C
    Pt1000

    Temperature Compensation

    Automatically via temperature measurement in the sensor or via manual input

    Relays

    2 x switching contacts, change-over, max. 250 VAC / 5 A

    Current Outputs

    2 x 0(4) … 20 mA

    Digital Interface

    Modbus / RS485

    USB (for configuration, calibration, data recording)

    Display

    OLED (128 x 64 pixel) with plain text menue

    Data Logger

    Integrated with real time clock for 4000 datasets, storable via USB, grafical display

    Electric Supply

    100 … 240 V AC or 18 … 36 V DC

    Ambient Conditions

    Operational temperature: -10 … 55 °C

    Housing Material

    Cast Aluminium for wall mounting

    Protection Rating

    IP 65

    Weight

    2 kg

    Warranty

    2 years
