Analog chlorine sensors - WTW

SKU: 201189

Option

Request a Quote

Description
Amperometric sensors to measure free and total chlorine

Electrochemical Chlorine Sensors of the brand WTW

The sensors for measurements in drinking water or swimming pools are connected with the ADA Cl/IDS to the MIQ/IDS module. This allows them to be combined as a digital sensor for continuous monitoring with the IQ Sensor Net controllers DIQ/S 28x or MIQ/TC 2020 3G:
- Environmentally friendly – no chemicals used
- Reliable – protection against soiling due to membrane
- Accurate – pH compensation of the measurement results
With a uniform measuring range, the sensors must be selected depending on the pH value of the applications.

Measuring Parameter
- Free chlorine
- Total chlorine
Models:

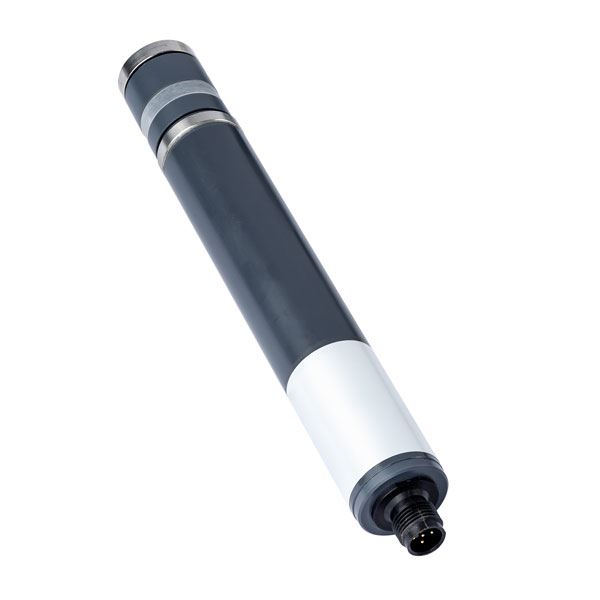

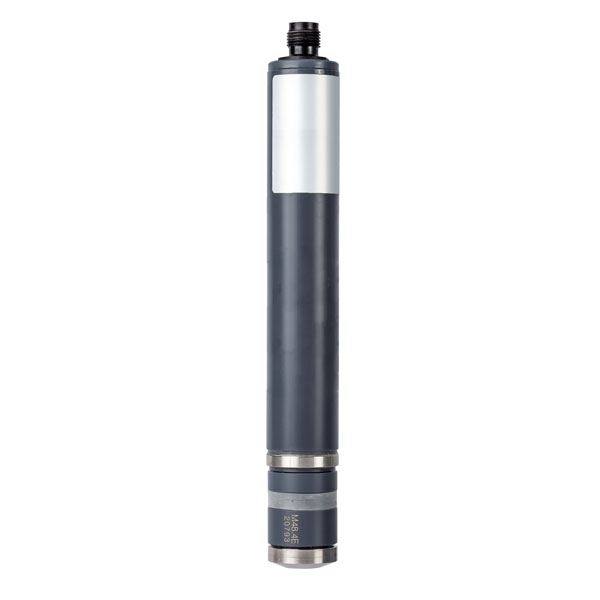

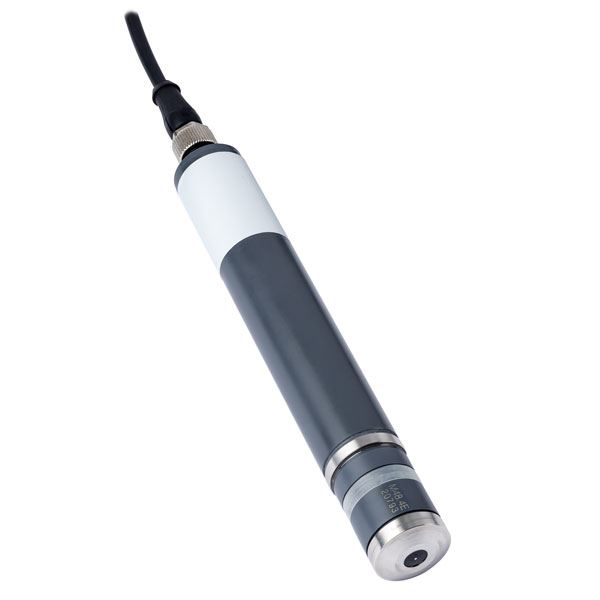

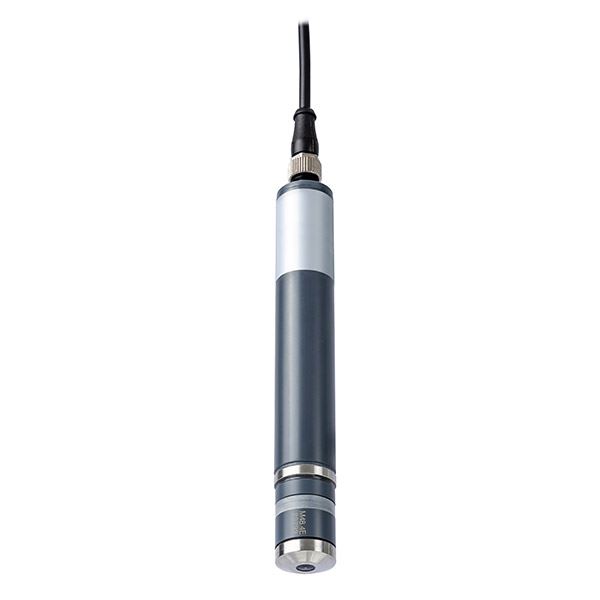

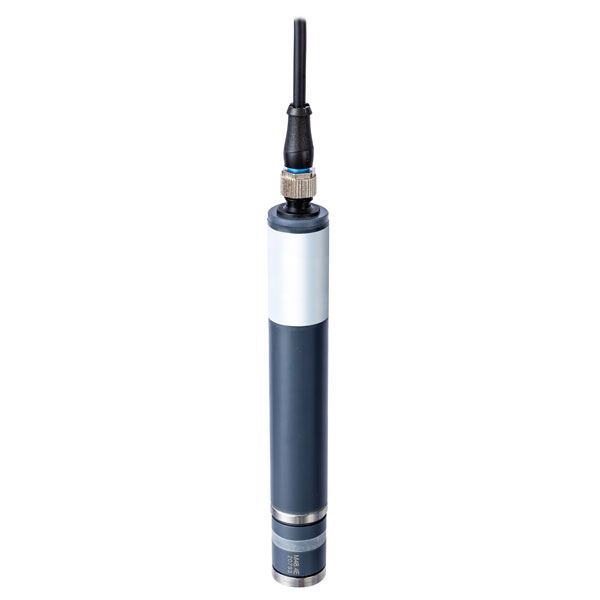

- FCML 412 M12-2: Electrode for free chlorine up to 2 mg/l - Connection to MIQ/IDS
- FCML 412 M12-20: Electrode for free chlorine up to 20 mg/l - Connection to MIQ/IDS
- TCML 412 M12-2: Electrode for total chlorine up to 2 mg/l - Connection to MIQ/IDS
- ADA Cl/IDS: Adapter for connecting FCML 412-M12 or TCML 412-M12 to MIQ/IDS modules
Applications:
- Drinking water
- Process monitoring
- Pools

Specifications

Model	FCML 412 N	FCML 412-M12-2	FCML 412-M12-20	TCML N
Order No.	201187	201189	201194	201192
detailed technical data see data sheet D7.01
Measuring principle	Amperometric
Measured value	Free chlorine			Total chlorine
Measuring range	0.01 … 2.00 mg/l Cl₂	0.005 ... 2.000 mg/l Cl₂	0.05 ... 20.00 mg/l Cl₂	0.01 … 2.00 mg/l Cl₂
Response time	t₉₀ approx. 120 s
Minimum flow rate	Recommended minimum flow rate in flow cell D 19: 15 l/h, or alternatively in flow cell D-CL: > 30 l/h
Temperature measurement	0 … 45 °C
Temperature compensation	Automatically via integrated sensor
pH range	4 … 9			4 … 12

Accessories

Maintenance kits for chlorine sensors

Maintenance kits for chlorine sensors for free and total chlorine ind drinking water.ser.

IDS modules for connecting the IDS sensors to the IQ SENSOR NET

Modules for connecting IDS sensors. Can be combined with all IQ Sensor Net systems.

Flow cells and hoses

For setting up your own drinking water measuring point with IDS sensors or extending our WTW Drinking Water Panel

Terminal(/controller) MIQ/TC 2020 3G and Terminal IQ - WTW

Digital and modular network system for wastewater treatment plant monitoring to connect up to 20 sensors

DIQ/S 282 – Controller for the IQ SENSOR NET - WTW

Digital system to monitor wastewater treatment plants, with up to 2 sensors
