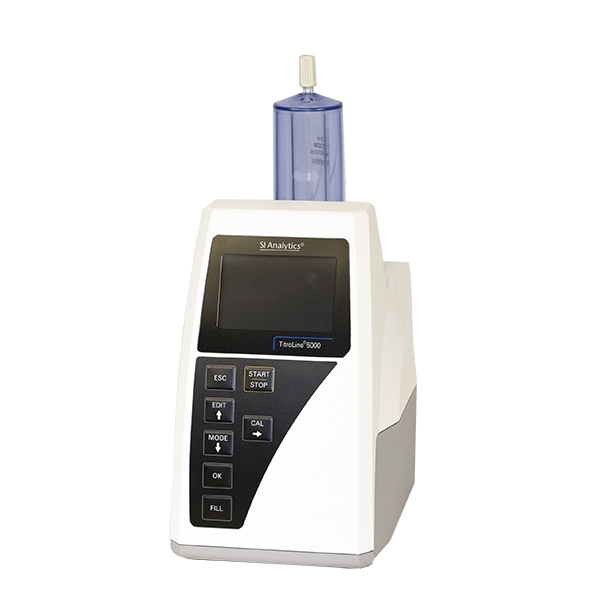

SI Analytics Titrator TitroLine® 5000

SI Analytics Titrator TitroLine® 5000

  • SKU: 285225760
Request a Quote
  • Description

    Simple automatic titrator for potentiometric titrations


    The TitroLineR 5000 is a very compact titrator for simple routine titrations. Thanks to a selection of standard methods to choose from, the creating of methods as you go is no longer required. Just load the method you need and press the start button. GLP compliant results with titration curve can be documented on a connected printer or USB-memory stick.

    Variants
    Art.-No. Name Content
    285225760 TL 5000/20 M1

    Titrator basic unit without electrode, with ready to use 20 ml dosing unit TZ 3130 with tubes, screw threads and titration tip, magnetic stirrer TM 50, mouse TZ 3880, titration clamp Z 305 and stand rod TZ 1748, with external power supply 100-240 V

    285225770 TL 5000/50 M1 Titrator basic unit without electrode, with ready to use 50 ml dosing unit TZ 3160 with tubes, screw threads and titration tip, magnetic stirrer TM 50, mouse TZ 3880, titration clamp Z 305 and stand rod TZ 1748, with external power supply 100-240 V

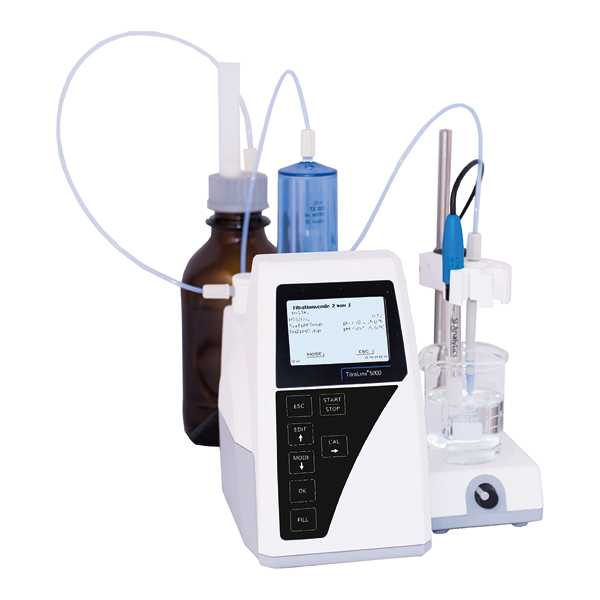

    285225780 TL 5000/20 M2 Titrator basic unit TL 5000/20 M 1 with the addition of a pH electrode A 7780 NTC30 DIN N and buffer set pH 4,00 and 7,00
    285225790 TL 5000/50 M2 Titrator basic unit TL 5000/50 M 1with the addition of a pH electrode A 7780 NTC30 DIN N and buffer set pH 4,00 and 7,00
    285225850 TL 5000/20 M3 Titrator basic unit TL 5000/20 M 1 with the addition of an Ag-electrode AgCl 62 RG and electrode cable L 1 A
    285227750 TL 5000/20 Acidity Set Titrator basic unit TL 5000/20 M 1 with the addition of a pH electrode A 7780 NTC30 DIN N, pH-buffer set L 4895, USB-keyboard TZ 3838, USB-HUB TZ 3830, USB-Stick TZ 3836 and 1 L amber reagent bottle TZ 3803
    285227780 TL 5000/50 Acidity Set Titrator basic unit TL 5000/50 M 1 with the addition of a pH electrode A 7780 NTC30 DIN N, pH-buffer set L 4895, USB-keyboard TZ 3838, USB-HUB TZ 3830, USB-Stick TZ 3836 and 1 L amber reagent bottle TZ 3803
    285227760 TL 5000/20 Salt Set Titrator basic unit TL 5000/20 M 1 with the addition of an Ag-combination electrode AgCl 62 RG, electrode cable L 1 A, USB-keyboard TZ 3838, USB-HUB TZ 3830, USB-Stick TZ 3836 and 1 L amber reagentbottle TZ 3803
    285227770 TL 5000/20 Redox Set Titrator basic unit TL 5000/20 M 1 with the addition of a Pt-combination electrode Pt 62 RG, electrode cable L 1 A, USB-keyboard TZ 3838, USB-HUB TZ 3830, USB-Stick TZ 3836 and 1 L amber reagent bottle TZ 3803

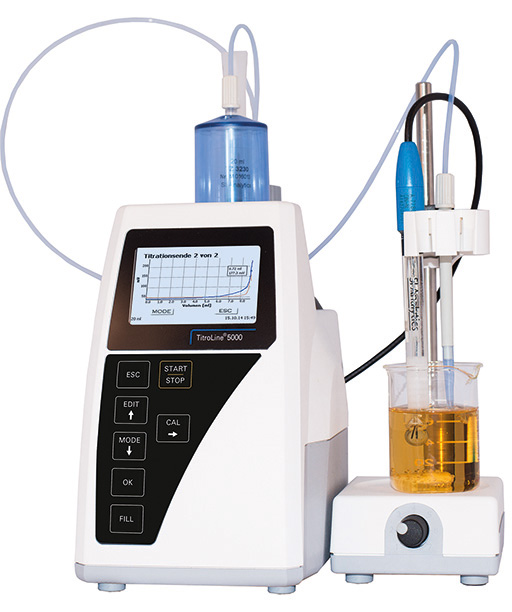

    The TitroLine® 5000 is the can be used in the food and beverage industry but also for dedicated analysis in other industries. The TitroLine® 5000 with has a high visibility full color graphic display which allows viewing even at extreme angles. The titration curve, but also other information such as ml, pH/mV and temperature are clearly displayed on the display. This way of working makes the TitroLine® 5000 the perfect titrator for the analysis of parameters such as FOS/Tac thanks to innovative features and ease of operation – all without sacrificing accuracy. The two USB and two RS 232 interfaces makes the TitroLine® 5000 very communicative. Various USB devices such as printers, barcode readers, keyboards can be connected. Analytical balances can also be connected to transfer the sample weight automatically to the titrator. Results are documented in PDF and CSV format on a connected USB stick.

    Typical applications for the TitroLine® 5000

    • pH- value, total acidity in wine and beverages
    • Salt content in foodstuffs (cheese, soy sauce, ketchup)
    • Acid value in bread and bread dough
    • Total nitrogen according to Kjeldahl
    • Chloride in drinking water and other samples
    • pH- value, Alkalinity (p + m-value)
    • FTA/TA („FOS/TAC“)

    Key Features

    • Following titration modes are possible:
      • Titrations to pH, mV - endpoint (2 EP)
      • Titrations to one equivalence point (pH und mV) with dynamic or linear titration addition
      • Manual titrations with the controller
      • Dosing tasks
      • Number of methods: 5

    Learn more about Titration:

     Download: Titration catalogue

     Blog: Which electrodes can still be used for titration?

     Blog: Which kind of pH electrode do I need for my acid-base titration application?

     Blog: Titration Theory and Practice - A practical guide

    Get a 3-year guarantee now

  • Specifications
    TitroLine® 5000 (all Options)
    Measuring input pH/mV pH/mV-input with elektrode socket according to DIN 19262. BNC via adapter. Reference electrode 1 x 4 mm socket
    Measuring range pH/accuracy - 3,0… 17,00 / 0,05 +/- 1 digit
    Measuring range mV/accuracy - 1900…1900/ 1,0 +/- 1 digit
    Measuring input temperature Connector for Pt 1000 / NTC 30 KOhm (Sockets: 2 × 4 mm)
    Measuring range temperature - 30 …115 °C / 0,5 K +/- 1 digit
    Interfaces 2 × USB (1 USB-A and 1 × USB-B), 2 × RS-232-C
    Dosing units 20 ml; 50ml also usable  (depends on option)
    Resolution (steps) 8000 steps
    Dosing accuracy according to DIN ISO 8655, part 3:
    accuracy: < 0.15 %
    precision: < 0.05 %
    Display 3.5 inches - 1/4 VGA TFT graphic color display with 320 x 240 pixels
    Housing material Polypropylene
    Front keyboard Polyester
    Material dosing unit/valve Valve: PTFE/ETFE;
    Cylinder: borosilikate glass 3.3 (DURAN®)
    Hoses:  (FEP, blue)
    UV Cover: Ultem
    Dimensions 135 x 310 x 205 mm (W x H x D), height with dosing unit, without stirrer
    Weight 2 kg
    Ambient conditions Ambient temperature: + 10 ... + 40 °C for operation and storage Humidity according to EN 61 010, Part 1: max. relative humidity 80 % for temperatures up to 31 °C, linear decrease down to 50 % relative humidity at a temperature of 40 °C
    Power supply 100-240 V; 50/60 Hz, power input: 30 VA
    CE-sign EMC compatibility according to the Council Directive: 2004/108/EG; applied harmonized standards: EN 61326-1:2006
    Low-voltage directive according to the Council Directive 2006/95/EG Testing basis EN 61 010, part 1
    Magnetic stirrer TM 50, for glass vessels up to maximale 500 ml, speed can be adjusted without discrete steps 0 - 1000 min-1, connection to TITRONIC® 300 and TitroLine® 5000, including stand rod holder TZ 3885
  • Video

    TitroLine® 5000 - Entry to the automatic Titration

    In this Video we show you how to install the Titrator TitroLine® 5000, how to perform a calibration and a titration on juice. This Video will help everyone to set up the TL 5000 and operate it.
