SI Analytics Titrator TitroLine® 7000 Automatic titrator with exchangeable head

  • SKU: 285220120
Request a Quote
  • Description

    Automatic Titrator with exchangeable heads for potentiometry

    With its performance spectrum, the TitroLine® 7000 is the ideal starting device for potentiometric titration with potential for expansion and automation. Thanks to the high-resolution and precise pH/ mV and “dead-stop” measuring interface, it is possible to determine a wide range of parameters quickly, reliable and accurate.

    The TitroLine® 7000 can be used in all industries such as the chemical, petrochemical, pharmaceutical as well as the food and beverage industry and education. Also well usable for the water and wastewater industry.

    The TitroLine® 7000 with has an exceptional high visibility full color graphic display which allows viewing even at extreme angles. The titration curve, but also other information such as ml, pH/mV/µA and temperature are clearly displayed on the display.

    The three USB, two RS 232 and Ethernet interfaces makes the TitroLine® 7000 highly communicative. Various USB devices such as printers, barcode readers, keyboards can be connected. Analytical balances, PC and other SI Analytics devices such as the autosampler TW 7200 and other SI Analytics devices can be connected via the RS-232 interfaces. The Ethernet interface allows data to be stored on a directly connected USB stick in PDF and CSV format as well as on shared network directories.

    The TitroLine 7000 can be used as a stand-alone instrument, but can also be subsequently expanded to a complex system for high sample throughput by adding additional TITRONIC 300 and 500 piston burettes, TitriSoft 3.5/3.5 P software and TW 7200 and TW 7450 sample changers.

    The parameters can be customized in each of the up to 50 methods. Through the user/password management, each user can be assigned individual rights. If you need even more methods or want to manage the data on a PC, you can use the PC software TitriSoft 3.5 (TZ 3571) to control the TL 7500 KF. The TitriSoft 3.5P (TZ 3572) comply fully with 21 CFR, Part 11.

    Key Features

    • Automatic wireless recognition of SI Analytics ID electrodes guarantee accurate calibration and measurements
    • High resolution pH/mV-electrode and temperature inputs for pH, ISE, redox (ORP) or photometric titrations.
    • Perfect for non-aqueous titration such as acid and base numbers in oils (TAN and TBN)
    • Polarizable electrode input for set endpoint titrations („Dead-stop“)
    • Linear (fixed increment) and dynamic equivalence point titration mode and titration to endpoints
    • pH Stat titrations
    • Single and continuous measuring function
    • Default methods for many different applications such alkalinity, total hardness, total acidity in drinks, chloride, SO2, TAN, TBN and many others.
    • Formula editor for individual calculations
    • Titrations with the photometric sensor OptiLine 6
    • Dosing with up to two connected piston burettes per method
    • Titration with external piston burette

    Basic titrator unit includes:
    Basic unit, connection cable TZ 1577 for TM 235, piston extraction tool TZ 3813, USB keyboard TZ 3835, stand rod TZ 1510, electrode clamp Z 305, stop pin for titration clamp Z 304 and power supply 100-240 V.

    Exchangeable burette head includes:
    5, 10, 20 ml burette head with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip.

    Sets include:

    TL 7000-M1: 285220120

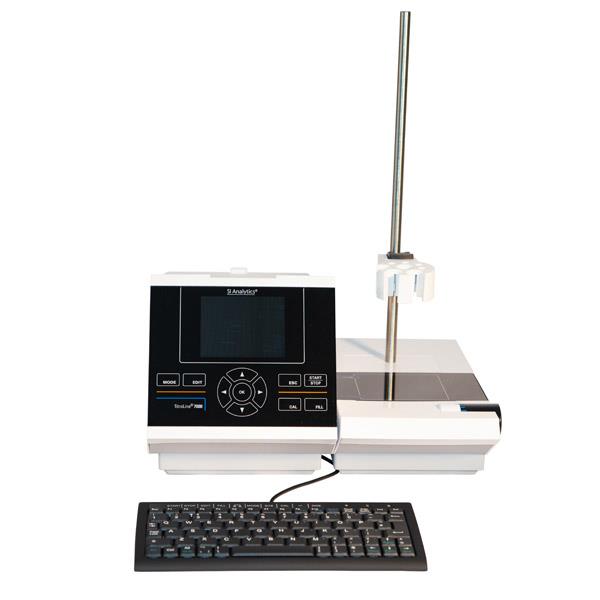

    Basic titrator unit with magnetic stirrer TM 235.

    TL 7000-M1/10: 285220140
    Basic titrator unit, with magnetic stirrer TM 235 and 10 ml exchangeable burette head WA 10.

    TL 7000-M1/20: 285220150
    Basic titrator unit, with magnetic stirrer TM 235 and 20 ml exchangeable burette head WA 20.

    TL 7000-M1/50: 285220160
    Basic titrator unit, with magnetic stirrer TM 235 and 50 ml exchangeable burette head WA 50.

    TL 7000-M2/20:
    Basic titrator unit, with magnetic stirrer TM 235, 20 ml exchangeable burette head WA 20, with pH-combination electrode A 162 2M-DIN-ID and buffer set L 4895

    TL 7000-TitriSoft: 285220960
    Basic titrator unit, with magnetic stirrer TM 235 and software TitriSoft 3.5 (TZ 3571)

    We provide 3 years warranty

  • Specifications
    Measuring input analog pH/mV-input with 24 bit transducer. Electrode socket according to DIN 19 262 or BNC with RFID receiver for SI Analytics ID electrodes
    Measuring range pH/accuracy - 3.0… 18.00 / 0.002 +/- 1 digit
    Measuring range mV/accuracy - 2000…2000/ 0.1 +/- 1 digit
    Measuring input µA:  μA-connector for double platinum electrodes, connection: 2 x 4 mm - sockets), polarisation voltage variably adjustable
    Measuring input temperature:  Connector for Pt 1000 / NTC 30 KOhm ( connection: 2 x 4 mm - sockets)
    Measuring range temperature Pt 1000 - 75…195 °C    / NTC 30 KOhm - 40 …125 °C
    Interfaces:  3 × USB (2 x USB-A and 1 × USB-B), 2 × RS-232-C and 1 x LAN
    Interchangeable burettes  5, 10, 20 ml or 50 ml intelligent interchangeable burette units
    Resolution (Steps):  20.000 steps
    Dosing accuracy: according to DIN ISO 8655, part 3:
    accuracy: < 0.15 %
    precision: < 0.05 - 0.07 % (in dependence of the used burette size)
    Display 3.5 inches - 1/4 VGA TFT graphic color display with 320 x 240 pixels
    Housing material Polypropylene
    Dimensions 15.3 x 45 x 29.6 cm (W x H x D), height with interchangeable head
    Front keyboard Polyester coated
    Material interchangeable burettes Valve: PTFE/ETFE;
    Cylinder: borosilikate glass 3.3 (DURAN®)
    hoses (FEP, blue)
    Weight 2.3 kg for basic device, 3.5 kg für complete device with interchangeable head (with empty reagent bottle)
    Ambient conditions Ambient temperature: + 10 ... + 40 °C for operation and storage Humidity according to EN 61 010, Part 1: max. relative humidity 80 % for temperatures up to 31 °C, linear decrease down to 50 % relative humidity at a temperature of 40 °C
    Power supply: 100-240 V; 50/60 Hz, power input: 30 VA
    CE-sign:  EMC compatibility according to the Council Directive: 2004/108/EG; applied harmonized standards: EN 61326-1:2006
    Low-voltage directive according to the Council Directive 2006/95/EG Testing basis EN 61 010, Part 1
