Ceramic Diaphragm - Silamid® Reference System - Temperature Sensor

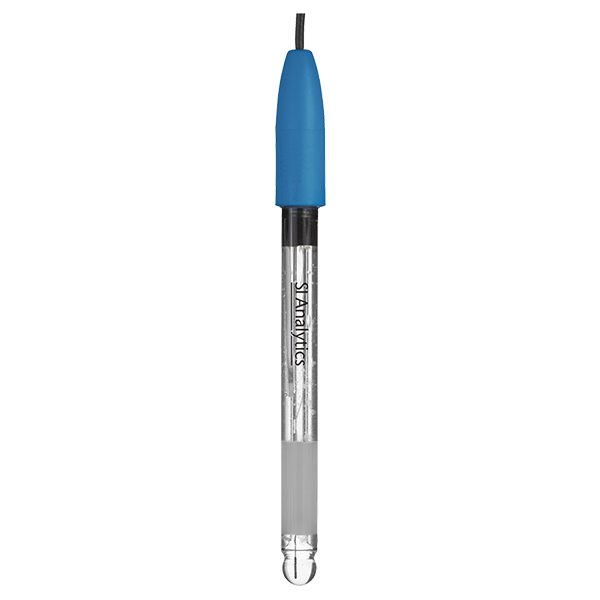

ScienceLine pH-combination electrode with ceramic diaphragm and temperature sensor.
| Variants |
| Art.-No. |
Name |
Description |
| 285101290 |
A 7780 NTC30 DIN N |
3x Ceramic, NTC 30 kOhm, Gel, Shaft length 120 mm |
| 285130200 |
A 7780 1M DIN ID |
3x Ceramic, Pt 1000, Gel, Shaft length 120 mm |
| 285100486 |
N 1041 A |
Ceramic, Pt 1000, KCl 3 mol/l, Shaft length 170 mm |
| 285093111 |
N 1041 A - 600 |
Ceramic, Pt 1000, KCl 3 mol/l, Shaft length 600 mm |
| 285104541 |
N 1042 A |
Ceramic, Pt 1000, KCl 3 mol/l, Shaft length 120 mm |
| 285093009 |
N 1043 A |
Ceramic, Pt 1000, KCl 3 mol/l, Shaft length 320 mm |
Highlights:
- liquid electrolyte (besides A 7780)
- ceramic diaphragm
- optimum results thanks to high-quality membrane glass
- spheric membrane
ScienceLine – The proven high-end laboratory electrodes
In research and development, manufacturing and quality control, our ScienceLine electrodes have become standard for the most demanding measurement tasks. Each electrode has an individual serial number and pH metal combination electrodes are supplied with a quality certificate, better making documentation simple and better traceable. We have kept on improving the glass membrane shapes and types to make the electrodes even more robust, durable and easier to clean. Furthermore, they achieve stable measurement values even faster.
