pH electrode for wastewater - WTW

SKU: 109102

Option

Request a Quote

Description
Electrodes for the IQ SENSOR NET and for analog transmitters pH 298

SensoLyt^® electrodes

for installation in a flow vessel or in a SensoLyt^® sensor:
- pH measurement in wastewater
- Fast exchange
- Easy to maintain
Models:

Electrodes with arming

The SensoLyt^® electrodes with arming are easy to install and boast flexible measuring and application areas
- SensoLyt^® ECA: Measurements in municipal and normally charged waste water.
- SensoLyt^® SEA: Measurements in moderately or heavily loaded waste water and in emulsions, suspensions and media that contain protein and sulfide.

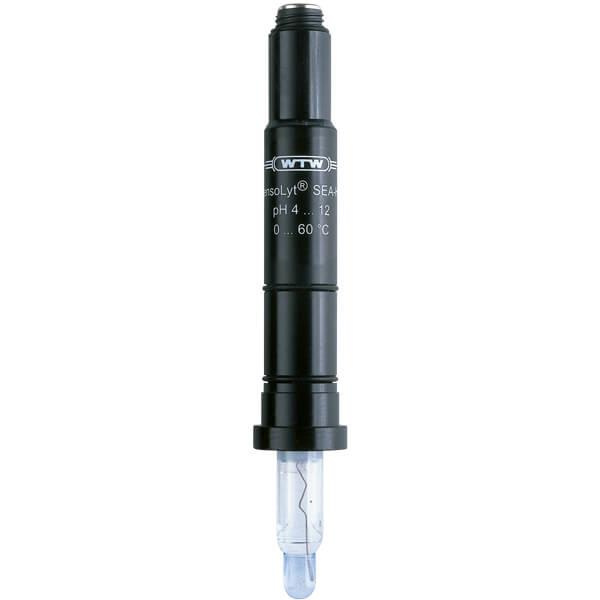

- SensoLyt^® SEA-HP: Measurements in moderately or heavily loaded waste water and in emulsions, suspensions and media that contain protein and sulfide. To be used under increased pressure and temperature conditions.
- SensoLyt^® TFA: Measurements in industrial and not typically municipal waste water, robust against aggressive media.
Electrodes without arming

The SensoLyt^® electrodes without arming can be connected directly to a pH monitor pH 298. Depending on the application, you can install them into a flow vessel.
- SensoLyt^® EC: Measurements in municipal and normally charged waste water.
- SensoLyt^® SE: Measurements in moderately or heavily loaded waste water and in emulsions, suspensions and media that contain protein and sulfide.

Specifications

SensoLyt^® Models		SEA-HP	SEA	SE	ECA	EC	TFA
Order No.		109118	109115	109100	109117	109102	109114
Reference System		Gel polymer solid electrolyte			Gel electrolyte		Gel polymer solid electrolyte
Diaphragm		2-hole junction			1-hole junction		PTFE ring diaphragm
Pressure Resistance	at 20 °C	10 bar	10 bar	—	10 bar	—	10 bar
Pressure Resistance	at 60 °C	10 bar	1 bar	—	1 bar	—	1 bar
Temperature Range		0 ... +60 °C
Measuring Range / Range of Application		4 ... 12 pH	2 ... 12 pH
Temperature sensor		Integrated in SensoLyt^® armature
Electrical Connection		Watertight plug-in system (S7)
detailed technical data see data sheet D3.04

Accessories

WTW - Electrolytes and cleaning solutions

Consumables for pH electrodes

WTW - Technical Buffer solutions

Technical buffer solutions for WTW meters with pH functionality
