Analog conductivity measuring cells for wastewater - WTW

SKU: 302316

Option

Request a Quote

Description
Conductivity measuring cells to be connected to analog transmitters

TetraCon^® and LRD

All analog conductivity measuring cells are equipped with an integrated temperature compensation and cover all applications:
- In wastewater treatment plants, as flow measurement or in the pipeline: The right solution for every application
- Highest linearity by 4 electrode measuring cell
- High operational safety by robust design
You have the application – we have the application – we have the measuring cell! The unique 4 electrode measuring cell compensates for possible contamination and polarization effects. All measuring cells can be connected to the LF monitor LF 298 NTC (exception: TetraCon^® 700).

Moddels:

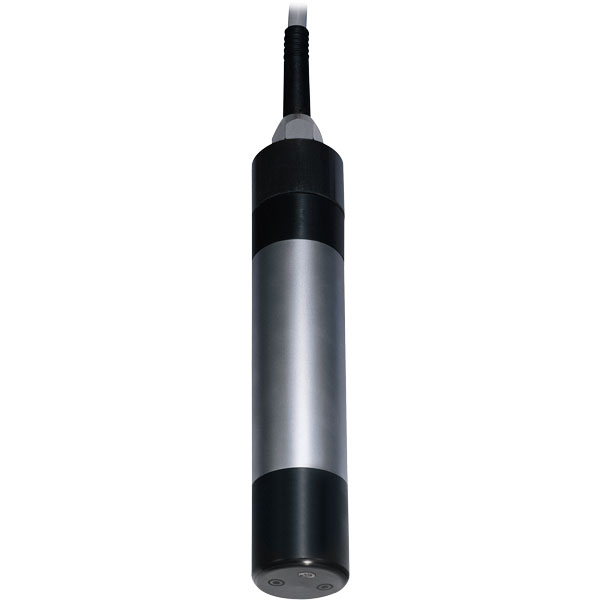

- TetraCon^® 700-7 – Designed as an immersion encoder specifically for use in wastewater treatment plants
  Conductivity measuring cell with 4 electrode system, integrated temperature sensor, anti-slip electrodes and breakage-resistance shaft; measuring range 10 µS/cm to 1000 mS/cm. Only as replacement armature for analog monitors of the Ecoline^® or QuadroLine^® series. Still available as digital version (IQ SensorNet System 281).
- LRD 01 – for the installation into pipelines
  Conductivity measuring cell as V4A model. With integrated temperature sensor (up to 130 °C), measuring range 0.001 to 200 µS/cm, pressure-resistant to 14 bar, 1/2 inch NPT screw thread.
- LRD 325 – for the installation into pipelines
  Conductivity measuring cell with integrated temperature sensor (up to 100 °C). Measuring range 1 µS/cm to 2 S/cm, pressure-resistant to 10 bar, 1/2 inch NPT screw thread.
No longer in stock:

TetraCon^® 700-15 – 15 m cable (302318)
Alternatives:
- TetraCon® 700-7 (302316)
- IQ conductivity measuring cells for use with the IQ SensorNet
Specifications
Accessories

Cable and mounting accessories for analog sensors

Cables to connect analog sensors to the controllers of series 298

Junction Boxes

Junction boxes to connect analog pH, ORP or conductivity sensors to the IQ SENSOR NET

Downloads

Handbooks / Whitepaper
Conductivity Handbook (English)
A guide with helpful practical tips

Content:

Fundamentals - conductivity

Calibration and analytical quality assurance

Measurement and analytical quality assurance

New measurement technologies and specific applications

Optical oxygen measurement and more...

Download file
Manuals

VisoTurb® 700 IQ (SW) (Operating Manual, PL)
IQ Turbidity Sensors VisoTurb® 700 IQ (SW) – IQ SENSOR NET,
Operating Manual, Polish
Download file

TetraCon 700 (Manual, DE)
TetraCon® 700 Conductivity Cell
Operating manual, ba55320d06, German
Download file

TetraCon 700 SW (Manual, DE)
Conductivity cell TetraCon® 700 SW
Operating manual, ba75538d02, German
Download file

VisoTurb® 700 IQ (SW) (Operating manual, IT)
IQ Turbidity Sensors VisoTurb® 700 IQ (SW) – IQ SENSOR NET,
Operating manual, Italian
Download file

VisoTurb® 700 IQ (SW) (Operating manual, NO)
IQ Turbidity Sensors VisoTurb® 700 IQ (SW) – IQ SENSOR NET,
Operating manual, Norwegian
Download file

VisoTurb® 700 IQ (SW) (Operating manual, ES)
IQ Turbidity Sensors VisoTurb® 700 IQ (SW) – IQ SENSOR NET,
Operating manual, Spanish
Download file

VisoTurb® 700 IQ (SW) (Manual, SE)
IQ Turbidity Sensor VisoTurb® 700 IQ (SW) – IQ SENSOR NET,
Operating manual, Swedish
Download file
Product Data Sheets

Analog conductivity measuring cells
Data sheet D3.06, English, 999264US
Analog conductivity measuring cells
Download file

Analog conductivity measuring cells
Data sheet D3.06, German, 999264D
Analoge Leitfähigkeitsmesszellen
Download file
