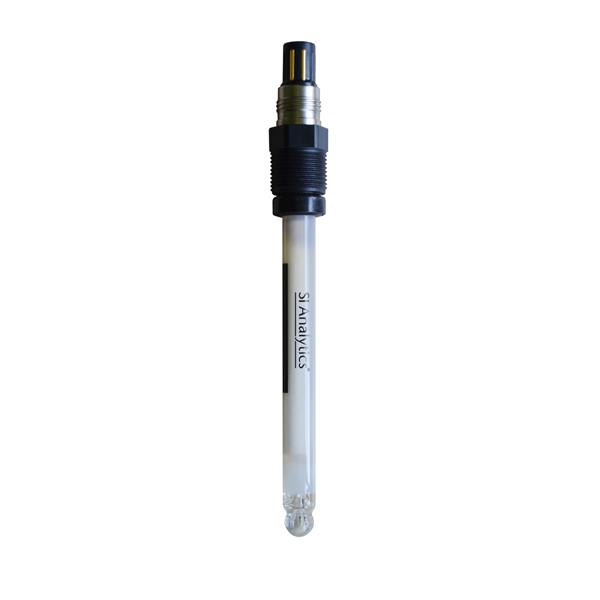

pH electrodes of the ProcessLine series with Pt100 temperature

ProcessLine pH combination electrodes with Pt100 temperature measurement are designed for demanding process applications involving suspended solids, slurries, emulsions and viscous media. Their optimized reference systems help ensure reliable measurement, even under challenging operating conditions.

ProcessLine pH with Pt100

Electrodes with a 2-hole junction are particularly suitable for media with an increased risk of clogging caused by suspended solids, slurries or deposits. The robust design ensures stable measurement and long service life in demanding process environments.

• Suitable for suspended solids, slurries and emulsions
• 2-hole junction for improved resistance to clogging
• Integrated Pt100 temperature sensor

The ProcessLine pH combination electrodes with Pt100 feature a screw plug head (ATEX II 1/2G), a glass shaft (12 mm diameter), SILAMID® reference, a 2-hole junction, a DuraLid reference system, sphere membrane and a measuring range of 0...14 pH, 0...130 °C.

Models:

• PL-S 82-225pHT VP – S glass, length 225 mm
• PL 82-120pHT VP – H glass, length 120 mm
• PL 82-225pHT VP – H glass, length 225 mm
• PL 82-425pHT VP – H glass, length 425 mm

Other ProcessLine electrodes including and without temperature measurement available:

• pH electrodes of the ProcessLine series with Pt1000 temperature
• Digital pH electrodes of the ProcessLine Memosens series with temperature
• pH electrodes of the ProcessLine series without temperature
