Glass Polarimeter Tube, Centre fill, PEEK end caps, for HCl | Bellingham + Stanley

Glass Polarimeter Tube, Centre fill, PEEK end caps, for HCl | Bellingham + Stanley

  • SKU: 35-12
Request a Quote
  • Description

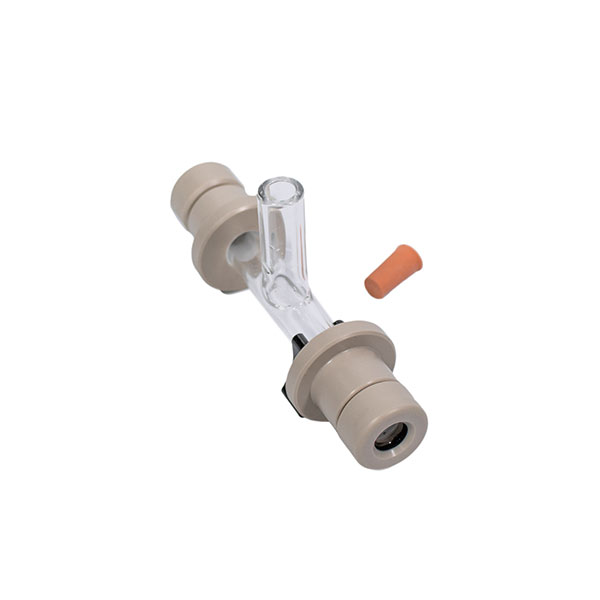

    Glass Polarimeter tube with PEEK endcaps for use with highly acid samples such as Hydrochloric acid use within the pharmaceutical industry as a solvent.

    This tube is based on our popular metal end standard tubes but has the extra ability to withstand some of the most corrosive samples required to be measured in a polarimeter.  The tubes are available in 100mm or 200mm tube lengths and are supplied with a pack of rubber bungs to prevent corrosive vapours escaping the tube whilst the sample is being measured.

    The tube ends are sealed with a rubber gland that are easily replaceable using a special tool.

    Spare end caps, seals as well as UV pass windows are also available as is an XPC adaptor for use in polarimeters boasting XPC Technology such as the ADP450 or ADP600-XPC Series polarimeters.

  • Specifications
    General Specifications
    Code 35-12
    Tube Material Glass (SCHOTT® Boroscilicate)
    End Cap Material PEEK
    Inlet/Outlet Centre
    Length 100mm
    Collar Size 30mm (ICUMSA Standard)
    Internal Diameter 8mm
    Volume 5.02 ml
    Window Material Silica
    Transmission 300-900 nm
    Seal (tube/end cap) Rubber (replaceable)

    Spare Parts
    Window (Cover Glass) 35-60
    Washers 35-64
    XPC Adaptor 35-99
    Seal (tube/end cap) 35-21
    XPC Adaptor 35-99
