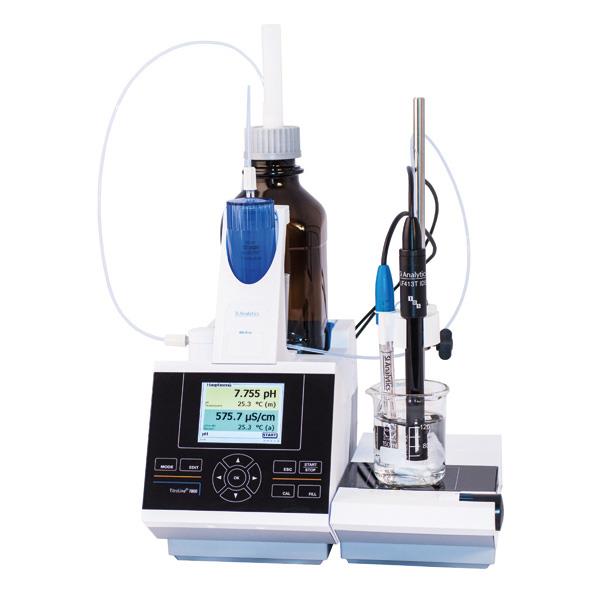

SI Analytics Titrator TitroLine® 7800 basic unit with magnetic stirrer

  • SKU: 285220990
Request a Quote
  • Description

    Automatic Titrator with IDS technology for exchangeable heads for potentiometry and KF

    The Titroline® 7800 enhanced the universal features of the TitroLine® 7750 with an additional IDS measurement socket. Hence the TitroLine® 7800 can perform potentiometric titrations with analog and IDS electrodes up to volumetric KF titrations. The digital (IDS) measurement socket allows the connection of various digital sensors, such as for measuring of conductivity.

    General features
    • High visibility, full color display that can be easily viewed from a distance and at extreme angles.
    • Reagent data is securely stored in the intelligent and interchangeable modules
    • Includes up to three USB, one LAN and two RS232 ports for expansion and connection of devices
    • Export the results as PDF or CSV, also to networks.

    Specific features for the TitroLine® 7800
    • Automatic wireless recognition of SI Analytics ID electrodes guarantee accurate calibration and measurements
    • High resolution pH/mV-electrode and temperature inputs for pH, ISE, redox (ORP) or photometric titrations.
    • Second digital measuring socket for intelligent digital pH-, conductivity, ORP sensors (IDS)
    • Perfect for non-aqueous titration such as acid and base numbers in oils (TAN and TBN)
    • Polarizable electrode input for set endpoint titrations („Dead-stop“ + KF)
    • Linear (fixed increment) and dynamic equivalence point titration mode and titration to endpoints
    • pH Stat titrations
    • volumetric KF titrations
    • Single and continuous measuring function
    • Formula editor for individual calculations
    • User management/password

    Latest features
    • Titrations with the new photometric sensor OptiLine 6
    • Dosing with up to two connected piston burettes per method
    • Titration with external piston burette

    Scope of delivery:
    Basic unit with magnetic stirrer, without exchangeable head, with keyboard, hand controller, stand rod and titration clamp Z 305, power supply 100-240 V

    We provide 3 years warranty

  • Specifications
    Measuring input 1 (analog) pH/mV-input with 24 bit transducer. Electrode socket according to DIN 19 262 or BNC with RFID receiver for SI Analytics ID electrodes
    Measuring range pH/accuracy - 3.0… 18.00 / 0.002 +/- 1 digit
    Measuring range mV/accuracy - 2000…2000/ 0.1 +/- 1 digit
    Measuring input µA:  μA-connector for double platinum electrodes, connection: 2 x 4 mm - sockets), polarisation voltage variably adjustable
    Measuring input temperature:  Connector for Pt 1000 / NTC 30 KOhm ( connection: 2 x 4 mm - sockets)
    Measuring range temperature Pt 1000 - 75…195 °C    / NTC 30 KOhm - 40 …125 °C
    Measuring input: (digital), IDS Digital input for teh connection of IDS®-sensors (pH, mV, conductivity)/ accuracy depends on teh connected sensor
    pH 0.000…14.000+/- 0.004
    mV +/- 1200  +/- 0.2
    Temperature °C - 5.0…105 +/- 0.2
    Conductivity 0.00…2000 mS/cm +/- 0,5% from measurement value
    Interfaces:  3 × USB (2 x USB-A and 1 × USB-B), 2 × RS-232-C and 1 x LAN
    Interchangeable burettes  5, 10, 20 ml or 50 ml intelligent interchangeable burette head
    Resolution (Steps):  20.000 steps
    Dosing accuracy: according to DIN ISO 8655, part 3:
    accuracy: < 0.15 %
    precision: < 0.05 - 0.07 % (in dependence of the used burette size)
    Display 3.5 inches - 1/4 VGA TFT graphic color display with 320 x 240 pixels
    Housing material Polypropylene
    Dimensions 15.3 x 45 x 29.6 cm (W x H x D), height with interchangeable head
    Front keyboard Polyester coated
    Material interchangeable burettes Valve: PTFE/ETFE;
    Cylinder: borosilikate glass 3.3 (DURAN®)
    hoses (FEP, blue)
    Weight 2.3 kg for basic device, 3.5 kg für complete device with interchangeable head (with empty reagent bottle)
    Ambient conditions Ambient temperature: + 10 ... + 40 °C for operation and storage Humidity according to EN 61 010, Part 1: max. relative humidity 80 % for temperatures up to 31 °C, linear decrease down to 50 % relative humidity at a temperature of 40 °C
    Power supply: 100-240 V; 50/60 Hz, power input: 30 VA
    CE-sign:  EMC compatibility according to the Council Directive: 2004/108/EG; applied harmonized standards: EN 61326-1:2006
    Low-voltage directive according to the Council Directive 2006/95/EG Testing basis EN 61 010, Part 1
