pHotoFlex® STD portable handheld colorimeter WTW

SKU: 251105

SKU

Request a Quote

Description

Firmware-Update

Learn more about the Firmware-Update in our news article.

Portable colorimeter with 6 wavelength for environmental monitoring, extensive water and comprehensive routine analytics in (mobile) labs
This LED colorimeter is a menu-guided easy to use portable meter for routine analysis with lab quality: Besides the stand-alone instrument, a field case with integraded "work bench", accessories and GLP compliant Data-Management-Software is available
•Intuitive and easy operation
•More than 180 programs for standard parameters
•Fixed adapter for two vial sizes
•Robust and waterproof
pHotoFlex® STD with energy-efficient LED optics is equipped with 6 wavelengths and a switch adapter for various applications with 16 mm and 28 mm cuvettes, for even the smallest concentrations. With more than 180 programs for standard parameters and coloration as well as a multitude of test kits - from lot-certified cuvettes to economic powder reagents, it is suitable for monitoring by health offices via environmental monitoring all the way to service labs. A list of favorites for the most commonly used tests, sample ID numbers and more than 3,000 measurements per battery set facilitate field measurements.

An elegant folding mechanism allows the easy switch between the two cuvette sizes without the need to exchange the cuvette holder.

The optional PC software LSdata offers GLP-compliant data evaluation with data filters and the input of up to 10 user-defined programs, calculate them as a method automatically and save them to pHotoFlex®.

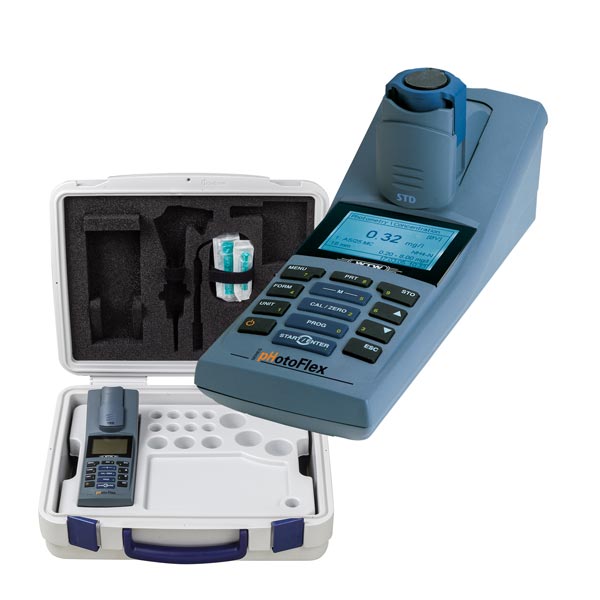

For convenient work in the field, a case set is a available as a mobile lab with a work surface and storage compartment as well as a lot of accessories, such as pipettes and cuvettes and spare batteries. For lab use, the photometer can be used in conjunction with a LabStation (optional) with site-supplied power and fitted with an external barcode reader.

More informationen in: "Photometriy - Tips and tricks"

Specifications

Model	pHotoFlex® STD	pHotoFlex® pH	pHotoFlex® Turb
Light source	LED	LED	LED
Wavelengths nm	436, 517, 557, 594, 610, 690	436, 517, 557, 594, 610, 690	436, 517, 557, 594, 610, 690 + 860
Custom methods	50	100	100
Methods/software update	Via the Internet	Via the Internet	Via the Internet
Data memory	100 measurements	1000 measurements	1000 measurements
pH	—	0-16	0-16
Turbidity	—	—	0–1100 NTU/FNU
PrecisionPhotometry pH Turbidity (NTU/FNU)	< 2 nm wavelength precision, 0.005 abs. reproducibility — —	< 2 nm wavelength precision, 0.005 abs. reproducibility ±0.01 pH —	< 2 nm wavelength precision, 0.005 abs. reproducibility ±0.01 pH 0.01 NTU/FNU or ±2% of the measurement value
Calibration:pH/turbidity	—	3-point	3-point
Interface	RS 232, USB via adapter (optional)	RS 232, USB via adapter (optional)	RS 232, USB via adapter (optional)
Measurement type	Photometry	Photometry, pH, ORP	Photometry, pH, ORP, turbidity
Battery	4 Mignon (AA), over 3000 measurements	4 Mignon (AA), over 3000 measurements	4 Mignon (AA), over 3000 measurements
Rechargeable battery	Optional: LabStation	Optional: battery or Lab station	Optional: battery or Lab station
Test mark	cETLus	cETLus	cETLus
Guarantee	2 years	2 years	2 years

Accessories

Portable colorimeter pHotoFlex® pH - WTW

Lab2Go - no matter if environmental monitoring, service labs or aquaculture

pHotoFlex® Turb portable multiparameter colorimeter WTW

pHotoFlex® Turb is the "real" multi-parameter colorimeter with pH, ORP and turbidity measurement

photoLab® color Software for WTW® spectrophotometers of photoLab® 7000 Series

Comfortable standard method and CIE based color measurement

Color measurement versus color perception: Photometric measurement with the spectrophotometers of the photoLab® 7100 VIS and photoLab® 7600 UV-VIS is an option for many users, as requirements such as extensive routine analysis and special methods can be combined here:

Spectrophotometer photoLab® 7600 UV-VIS - WTW

Innovative and well-proven - Optical reagent-free (OptRF) and routine analysis!

Spectrophotometer photoLab® 7100 VIS - WTW

All in one - one for all!

Filterphotometer photoLab® S12 - WTW

WTW - photoLab® S12 Filter photometer for comprehensive routine analysis in water, galvanics in universities, service and industrial labs

Filter photometer photoLab® S6 - WTW

Simply measure!

Downloads

Manual

pHotoFlex STD Quick Start (German)
Photometer,
Kompakt-BA
Download file

pHotoFlex STD (German)
Photometer,
Bedienungsanleitung
Download file

pHotoFlex STD Quick Start (English)
Photometer
Compact manual
Download file

pHotoFlex STD (English)
Photometer
Operating Manual
Download file

pHotoFlex STD Quick Start (French)
Photometer,
Compact manual
Download file

pHotoFlex STD (French)
Photometer
Operating Manual
Download file

pHotoFlex STD Quick Start (Spanish)
Photometer,
Compact manual
Download file

pHotoFlex STD (Spanish)
Photometer
Operating Manual
Download file
Software
pHotoFlex® pH, pHotoFlex® STD and pHotoFlex® Turb - Update of instrument software and programs (methods) - V2.81 / V2.11
Instrument firmware V 2.81
Programs (Method data ) V 2.11

Download- and installation notes

Data for download are stored in an ZIP file (*.zip)

Save the downloaded Zip file into a directory of your choice

Extract all data from Zip file into the desired directory and start the EXE file by double click

All information needed to perform the software update can be found in the supplied Read-me given in the zip file

New Features and Enhancements

New program for chlorine liquid test kits 00086-00088, programs 110+111!

New language package Chinese

AutoPrint: data output for all photoFlex® und Turb® instruments directly into PC via Interface

PharmaCal: new calibration option acc. to Pharmacopoeia (pHotoFlex® Turb)

Entry of lot numbers for turbidity standards (pHotoFlex® Turb)

1 to 5-Punkt calibration for turbidity (pHotoFlex® Turb)

Unit EBC acc. to European Brewery Convention (pHotoFlex® Turb)

Instrument firmware V 2.68
Programs (Method data ) V 2.07

Attention: The calibration of turbidity and pH will be lost during update!
Due to enhancements in the calibration menu and protocol the actual calibration data and calibration cannot be taken to the new structure.
Please perform a new calibration after update.

New Features and Enhancements

Enhanced calibration options for turbidity with QuickCAL and user-defined 1-5 point calibration (FreeCAL)

AutoPrint for direct data output of turbidity readings:
all values will automatically be sent to the Interface
supporting MultiLab-Importer, connected printers and user-specific terminal or LIMS programs.

Barcode option via PC and MuliLab-Importer for enhanced sample ID

RS232-output ASCII und CSV extended

Settings for turbidity calibration in sub directory

Calibration protocol extended to new CAL types

Selected calibration setting displayed on screen

Documentation of calibration implemented in data storage

New program for test model sulfate 02537

Download file
MultiLab Importer-Setup32
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data)

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
MultiLab Importer-Setup64
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data))

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
Publications

Turbidity An interesting parameter - Brief Overview, Measurement Tips & Tricks
Turbidity An interesting parameter,
Brief Overview, Measurement Tips & Tricks,
Publications
Download file
Flyer

pHotoFlex Kofferset (Flyer, German, 999136D)
Flyer, 2 Seiten, German, 99936D,
"Das mobile Labor - pHotoFlex Kofferset für Gewässerüberwachung - Routiniert und intuitiv - Robust und Wasserfest - Raffiniert und Vielseitig"
Download file

pHotoFlex Field Set (Flyer, English, 999136US)
Flyer, 2 Pages, English, 999136US,
"The portable Lab - pHotoFlex Colorimeter field set for water monitoring - standardized and easy-to-use - sturdy and waterproof - sophisticated and versatile"
Download file

pHotoFlex® (Flyer, English, 999129US)
Flyer, 2 Pages, English, 999129US,
"A Strong Team: pHotoFlex® Colorimeters & Reagents from A to Z"
Download file
