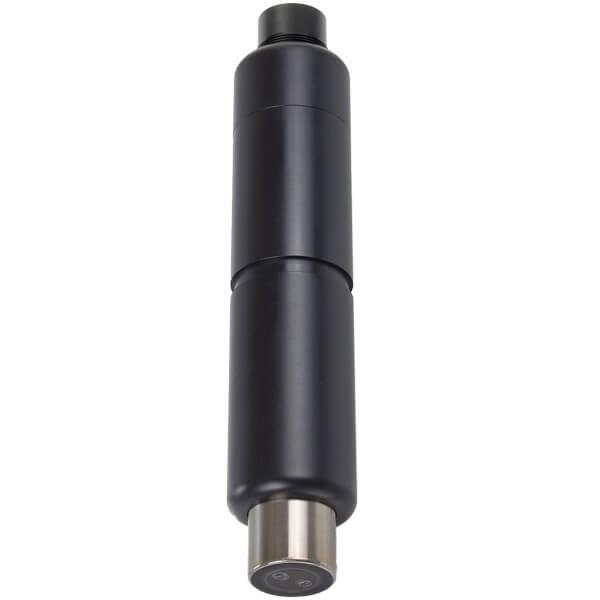

  • WTW VisoTurb® 700 IQ SW (product image)

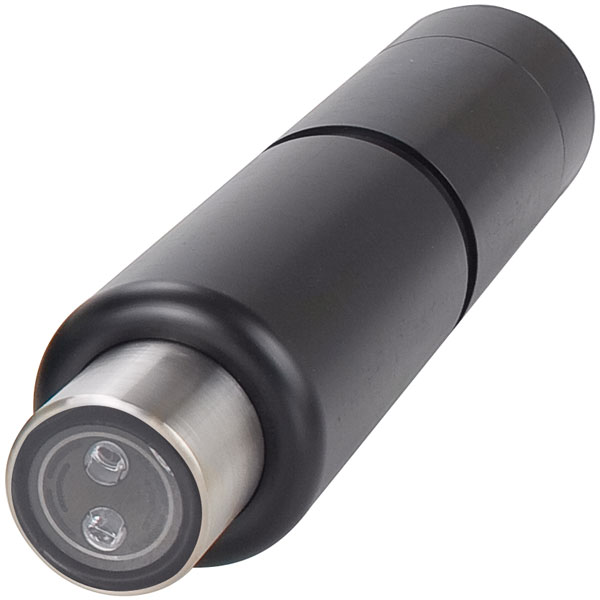

  • WTW VisoTurb® 700 IQ SW (product image bottom view)

IQ turbidity sensor - WTW

  • SKU: 600011
Request a Quote
  • Description

    Turbidity sensor with ultrasonic cleaning, connectable to the IQ Sensor Net

    VisoTurb®: Optical turbidity sensors according to nephelometric principle according to EN ISO 7027 for the in-situ use in water/wastewater with ultrasonic cleaning system:

    • Ultrasonic cleaning without mechanics
    • Extremely low-maintenance
    • Highly accurate factory calibration
    • High operational safety (sensor check function)

    The ultrasonic cleaning system ensures the low-maintenance and continuously reliable measuring operation of the sensors, which are therefore very suited for extreme applications, such as wastewater treatment plants.

    With the nephelometric measuring principle of the VisoTurb®, the stray light is measured at a 90° angle. The measuring setup is suitable for low and medium turbidity values up to 4000 FNU. According to EN ISO 7027, infrared light is used in the wavelength range of 860 nm. This wave length is outside the visible range, so that possible sample colorings generally do not cause any interference.

    Models:

    • VisoTurb® 700 IQ: Digital turbidity sensor with integrated ultrasonic cleaning (please order cable separately)
    • VisoTurb® 700 IQ SW: The sea water model includes the sensor for use in special media such as desalination plants, seawater or brackish water, fish farming or high salt content. All wetted parts are made of titanium and plastic and are therefore extremely resistant to corrosion.

    Applications:

    • Outlet of wastewater treatment plants
    • Drinking water
    • Industry
    • Surface water
    • Aquaculture
  • Specifications

    Model

    VisoTurb® 700 IQ

    VisoTurb® 700 IQ SW*

    Order No.

    600010

    600011
    * SW: Sensor as sea water model (with plastic arming (POM))

      Icon: CE Product Certification for Xylem Analytics Products   Icon: UKCA Product Certification for Xylem Analytics Products   2 years warranty from Xylem Analytics for this product

    detailed technical data see data sheet D2.05

    Measuring method

    Nephelometric principle in compliance with EN ISO 7027

    Measuring range

    FNU; NTU; TEF

    0.05 ... 4000 FNU

    mg/l SiO2; ppm SiO2

    0.1 ... 4000 mg/l SiO2

    g/l TS

    0.0001 ... 400 g/l TS

    Resolution

    FNU; NTU; TEF

    Automatic according to measuring range 0.001 ... 1 FNU

    mg/l SiO2; ppm SiO2

    0.001 mg/l ... 0.01 g/l

    g/l TS

    0.001 mg/l … 1 g/l

    Accuracy

    Process variation coefficient according to DIN 38402 part 51 <1 % (in the range up to 2000 FNU)
    Repeatability according to DIN ISO 5725 or DIN 1319 < 0.015 % or ≥ 0.006 FNU

    Ambient Conditions

    Operating temperature: 32 ... 140 °F (0 ... 60 °C);
    ultrasonic cleaning system: 32 ... 104 °F (0 ... 40 °C) (overheating protection);
    Storage temperature: 23 ... 149 °F (-5 ... +65 °C)

    Electrical connections

    2-wire shield cable with quick fastener to sensor

    Weight (without cable)

    Approx. 2.18 lb (900 g)

    3.13 lb (1420 g)
  • Accessories
    Test standards for turbidity and suspended solids sensors

    Test standards for turbidity and suspended solids sensors

    Test standards for VisoTurb® and ViSolid® IQ sensors
    Cable

    Cable

    Sensor and connection cables for the IQ SENSOR NET
    Sensor Mounting

    Sensor Mounting

    Extensions and holders to mount 1 to 3 IQ sensors or analog process sensors
    Flow-through Adapters

    Flow-through Adapters

    Flow-through Armatures and weld-in sockets made of PVC or stainless steel. Please order suitable sensor adapter
    (ADA-X) separately.
    Adapters

    Adapters

    Adapters to install 40 mm sensors in flow-through aramutres and vessels
