    Expansion modules for the IQ SENSOR NET, radio connection available
    The IQ SENSOR NET grows with its tasks - modules for individual system expansions with up to 4 IQSN connections and wireless communication:
    •Simple system expansion - removal possible from any location
    •The two-wire technology or stacking technique makes the installation extremely easy
    •The integrated lightning protection ensure high operational safety in any weather
    The expansion modules are required to connect the IQ sensors as well as for the branching of the system. Here, we offer a passive module "Junction box" (MIQ/JB) with four equal IQ SENSOR NET connections as well as a module with active repeater function to prepare the signal for very long cable distances "Junction Box Repeater“ (MIQ/JBR). Total cable lengths of up to 3 km (for the system 2020) are thus possible.

    With the MIQ/WL PS SET, we can even offer you modules for the wireless connection in your IQ SENSOR NET. Once it has been installed, your radio system can be expanded with additional radio paths (with single module MIQ/WL PS).
  • Specifications

    Models

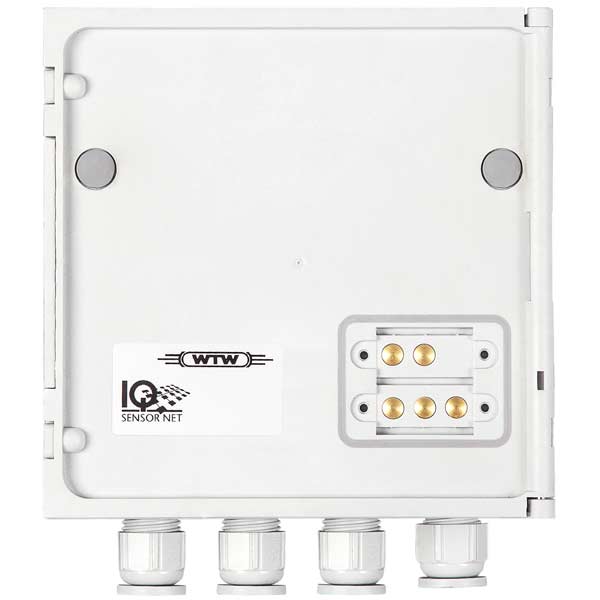

    MIQ modules MIQ/JB(R)

    MIQ modules MIQ/WL PS (SET)

    Order No.

    480008 (480010)

    480023 (480025)

    MIQ Module Coupling at Front

    Combined mechanical and electrical connection for rapid docking and removal of the MIQ/TC 2020 3G
    Terminal/Controller (configurated as Terminal) and for docking additional modules

    MIQ Module Coupling at Rear

    Combined mechanical and electrical connection, for rapid coupling to MIQ modules, up to 3 modules as a stack mounted unit possible

    Cable Feeds

    4 screw cable glands M 16 x 1.5

    Terminal Connections

    Screw terminal strips
    Terminal area for solid conductors: 0.2 ... 4.0 mm2
    Terminal area for flexible conductors: 0.2 ... 2.5 mm2
    accessible by opening cover

    IQ Sensor Net Terminal Connections

    Terminal connections for the IQ Sensor Net are available on each module and can be used as required:
    - for connecting sensor
    - as an input/output or for looping through/branching of the IQ Sensor Net cable

    Other Functions

    Two LEDs, yellow and red, for monitoring the operating voltage of the IQ Sensor Net; IQ Sensor Net ­connection, Integrated local identity function; Integrated switchable terminal resistor (SN terminator)

    Electric Supply

    Directly via the IQ Sensor Net

    Ambient Conditions

    Operating temperature: -4 °F … 131 °F (-20 °C … +55 °C); Storage temperature: -13 °F … 149 °F (-25 °C … +65 °C)

    Housing Material

    PC – 20 % GF (polycarbonate with 20 % fiberglass)

    Protection Rating

    IP 66

    IP 67

    corresponding to NEMA 4X (not for direct conduit connections). Conduits need to be connected with flexible adapters (CC-Box), respectively with adapters CC-PM..

    Dimensions (W x H x D)

    5.67 x 5.67 x 2.05 in. (144 x 144 x 52 mm)

    Weight

    Approx. 1.1 pounds (0.5 kg)

    Certifications

    ETL, cETL (conforms with relevant UL and Canadian standards), CE

    Electromagnetic Compatibility

    EN 61326-1, Class B; FCC Class A

    Integrated Overvoltage Protection

    According to EN 61326-1 enhanced overvoltage protection for the entire system, implemented in each component

    Connection Medium Cable

    IQ Sensor Net cable SNCIQ or SNCIQ/UG (underground cable with additional PVC coating): ­
    2-wire with shield; 2 x 0.75 mm2; Filler cord for easy connection of shield: 0.75 mm2; pressure resistant to 10 bar

    Connection Characteristics

    Energy and data transfer via 2 wire technique; resistant to reversed polarity; Comprehensive EMC shield control; cable topology within IQ Sensor Net system as required, e.g. in the form of a line, tree, star, multiple star; Total cable length: max. 1000 m/1094 yds (without signal amplifying), with signal amplifying module MIQ/JBR additional 1000 m/1094 yds (max 3000 m/3282 yds)

    Connection Medium Radio

    Radio with a coverage of 109 yds (100 m)

    Connection Characteristics

    Data transmission, separate power supply necessary for each island

    Warranty

    3 years for defects of quality
