Analog multi parameter controller - WTW

Analog multi parameter controller - WTW

  • SKU: 480200
Request a Quote
  • Description

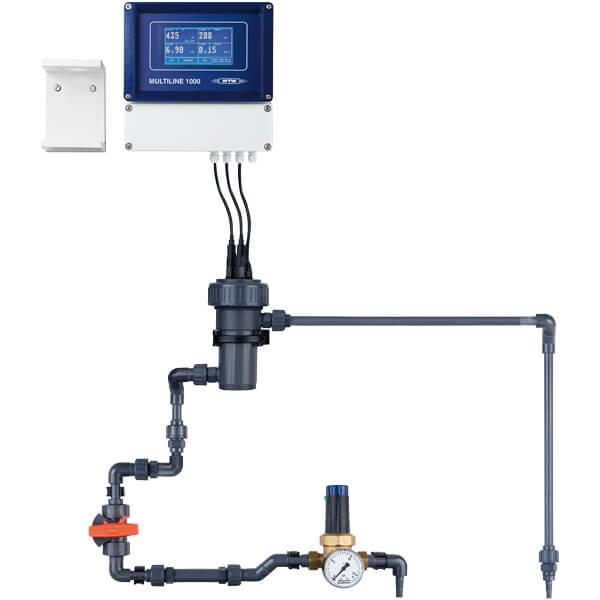

    Ready-to-use drinking water monitoring, panel mounted, incl, pipes
    Flexible measuring system with very price/performance ratio for drinking water analytics - up to 16 freely selectable sensors can be connected:
    •For immediate use: Premounted on wall mounting plate
    •User-friendly by intuitive menu guiding and large touchscreen
    •No use of chemicals - environmentally friendly and cost-saving
    The multi-parameter system MULTILINE 1000 to measure pH, ORP, oxygen, conductivity, turbidity, free or total chlorine - simply connect - done! The measuring results can be transferred out conveniently via digital interfaces (RS 232/RS 422/RS 485), analog power outputs (4 x 0(4) … 20mA) or 4 potential-free relay outputs (for limit value/alarm function). To monitor the inflow, flow measurement is also available.
  • Specifications
    Power supply 115/230 VAC
    Ambient temperature -10 … + 55°C
    Data memory Internal, approx. 50.000 Wete, incl. date and time
    Dimensions 239 mm x 240 mm x 125 mm (HxWxD)
    Housing Aluminum housing, protection class IP 65
    Measuring range pH 0,00 … 14.00 pH
    Measuring range ORP - 2000 … + 2000 mV
    Measuring range oxygen 0.00 … 20.00 mg/l
    0.0 … 200.0 %
    Measuring range conductivity 100 µS/cm … 20 mS/cm
    Measuring range chlorine 0.00 … 2.00 mg/l

Downloads

Multiline 1000 (English)

Drinking water panel (basic equipment)
Operating manual
Download file

Multiline 1000 (English)

Drinking water panel monitor
Operating manual
Download file

Multiline 1000 (German)

Trinkwasserplatte Multiline 1000 mit Grundausstattung,
Systemanleitung für Ringbuch
Download file

Multiline 1000 (German)

Messumformer der Trinkwasserplatte Multiline 1000,
Bedienungsanleitung für Ringbuch
Download file
