Portable precision pH meter with built-in data memory and logger function ProfiLine pH 3310

SKU: 2AA310

Option

Request a Quote

Description

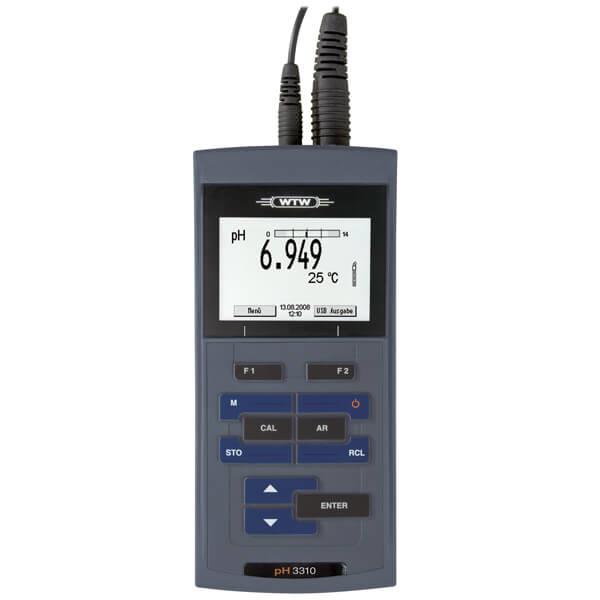

ProfiLine pH 3310 analog portable meter

ProfiLine pH 3310: Precise, portable pH/mV pocket meter with lit background graphic display and manual memory for safe and convenient measurements

Variants
Art.-No.	Name	Description
2AA310	pH 3310	Single unit in field case with buffers STP 4 and STP 7, 3 mol/l KCl, manual, CD-ROM, batteries, driver software for USB, cable

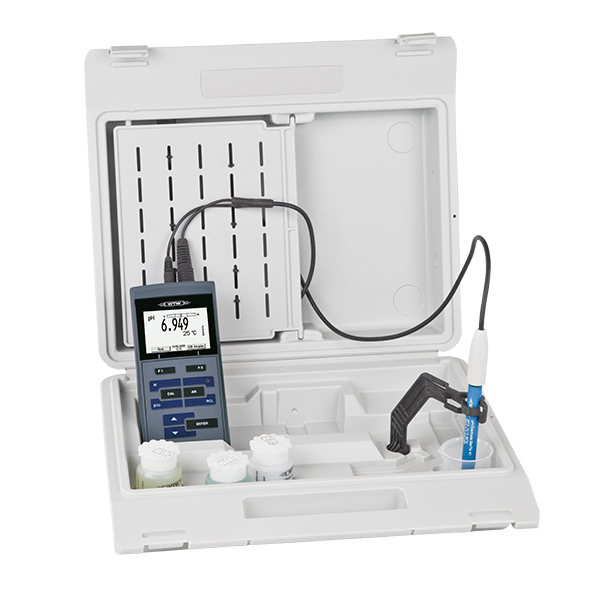

2AA312	pH 3310 Set 2	Single unit in field case with pH electrode SenTix® 41 with stand, beaker, buffers STP 4 and STP 7, 3 mol/l KCl, manual, CD-ROM, batteries, driver software for USB, cable

Highlights:

Data logger with intervals between 1 s and 60 minutes
Easy calibration thanks to 22 stored buffer sets
Optimum measuring range use with CMC function
1 to 5-point calibration with calibration timer for all measuring tasks

The pH 3310 is an elegant combination of portable meter and data logger for all those who want to save measuring series automatically and keep processing them on a computer. The meter includes a built-in data memory for 5000 GLP-compliant entries with an interval-controlled logger. All data can conveniently be transmitted to a computer via the USB interface. The CMC function visualizes the optimum measuring range and thus supports correct measurements. The graphic display with clear text menus allows the comfortable and safe operation of the meter.

The scope of delivery includes the MultiLab® Importer to capture data via Excel®.

Are you looking for a cost-effective entry-level model for pH measurement? Then use the ProfiLine pH 3110 pH meter as a simple pH meter for portable pH measurement.

Overview-page portable meters

Learn more about pH sensors:

Blog: Which pH electrode do I need?

Blog: What is pH?

Blog: Calibration and adjustment of a pH electrode

Specifications

ProfiLine	pH 3310	pH 3310 Set 2
Art.-No.	2AA310	*2AA312*
Parameters	pH, mV, Temperature
Measuring range pH	-2,000 … 19,999
Accuracy pH +/- 1 digit	+/- 0,005/ +/-0,01/0,1
Measuring range Temperature	- 5,0 ... + 105,0 °C
Accuracy Temperature +/- 1 digit	+/-0,1 K
Measuring range mV	-1250,0 ...+125,.0 / -2500...+2500 mV
Accuracy mV +/- 1 digit	+/- 0,3 mV/ +/- 1 mV
Operating temperature	-10 °C ... + 55 °C
Protection class	IP 67
Data storage	5.000 GLP entries
Content	Single unit in field case with buffers STP 4 and STP 7, 3 mol/l KCl, manual, CD-ROM, batteries, driver software for USB, cable	Single unit in field case with pH electrode SenTix® 41 with stand, beaker, buffers STP 4 and STP 7, 3 mol/l KCl, manual, CD-ROM, batteries, driver software for USB, cable

Downloads

Manual

pH 3310 (German)
Taschengerät,
Bedienungsanleitung
Download file

pH 3310 (English)
Handheld meter,
Operating Manual
Download file

pH 3310 (French)
Handheld meter,
Operating Manual
Download file

pH 3310 (Spanish)
Handheld meter,
Operating Manual
Download file
handbook

pH Handbook (English)

pH Handbook for pH-measurement
Download file
Software
ProfiLine 3310, 3320, MonoLine 3310 IDS - Firmware Update - V1.67
Because of continuous improvement of internal performance we always recommend using the latest firmware version. This update solves a problem in the calibration history. Please note: When installed except the current calibration the history will be deleted, if necessary, please make a copy!

Firmware version after successful update:

pH 3310 V1.29
pH 3310 IDS V2.07
Cond 3310 V1.34
Cond 3310 IDS V2.06
Oxi 3310 V1.26
Oxi 3310 IDS V2.12
Oxi 3315 V2.10
pH/ION 3310 V1.06
pH/Cond 3320 V1.09
Multi 3320 V1.09
Multi 3310 IDS V2.15

Download and installation notes:

The cable for the serial USB interface is part of the delivery.

Version history – innovations

•V1.67:
General optimizations and minor bug fixes

•V1.66:
General optimizations and minor bug fixes

•V1.65:
General optimizations and minor bug fixes

•V1.64:
-Update recommended; solves a problem with oxygen measurement of the last version.

•V1.63:
-Update recommended; solves a problem with oxygen measurement of the last version.

•V1.62:
-Solves a problem when switching the meters on or off: If the meter does not turn on, first perform a reset: Please press simultaneously “Menu – Enter” and “On/Off”, this will boot the meter automatically (without losing data).
Download file
MultiLab Importer-Setup32
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data)

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
MultiLab Importer-Setup64
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data))

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
Flyer

ProfiLine Handhelds (Flyer, English, 999045US)
Flyer, 8 Pages, English, 999045US,
"For pH, ISE, Dissolved oxygen and conductivity"
Download file
