Glass Polarimeter Tube, Centre fill, Metal end caps | Bellingham + Stanley

Glass Polarimeter Tube, Centre fill, Metal end caps | Bellingham + Stanley

  • SKU: 35-10
Request a Quote
  • Description

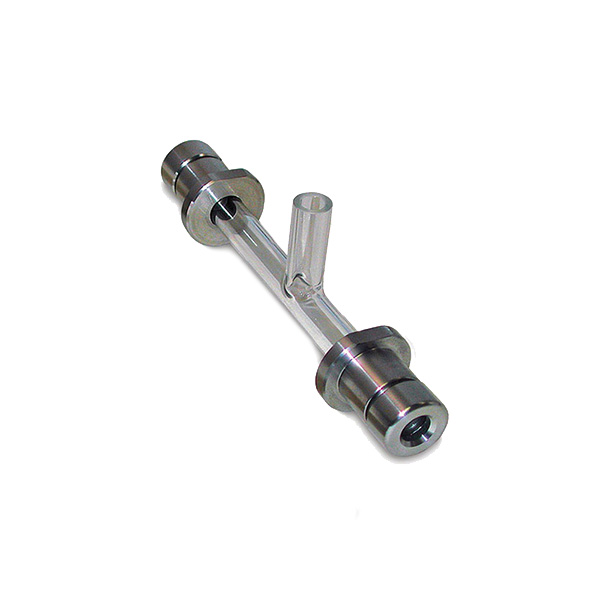

    This particular polarimeter tube has a centre fill opening for easy sample application and has stainless steel end caps that are resistant to most chemicals.  It is also possible to replace the seal between the glass tube and end cap using a special tool. Importantly, these tubes are able to accept the addition of a sample temperature probe without causing interference with the measurement light beam and so are recommended for use with ADP400 and ADP600 Series polarimeters.

    Our polarimeter tubes are manufactured to the highest quality standards conforming to ICUMSA recommendations and are compatible with most makes of polarimeter. Tube ends are precision ground with windows made from specially selected low strain glass in order to achieve the highest accuracy optical rotation measurement.

    • Available as 100 mm and 200 mm lengths
    • Precision engineered
    • Standard tubes
    • Suitable for harsh samples
    • Suitable for ADP400 Series and ADP600 Series polarimeters
  • Specifications
    General Specifications
    Code 35-10
    Tube Material Glass (SCHOTT® Boroscilicate)
    End Cap Material Stainless Steel
    Inlet/Outlet Centre
    Length 100mm
    Collar Size 30mm (ICUMSA Standard)
    Internal Diameter 8mm
    Volume 5.02 ml
    Window Material Silica
    Transmission 300-900 nm
    Seal (tube/end cap) Rubber (replaceable)

    Spare Parts
    Window (Cover Glass) 35-60
    Washers 35-64
    End Cap 35-20
    Seal (tube/end cap) 35-21
