IQ conductivity measuring cell - WTW

  • SKU: 302500
Request a Quote
  • Description
    Digital IQ sensor for wastewater treatment plants, connectable to the IQ SENSOR NET

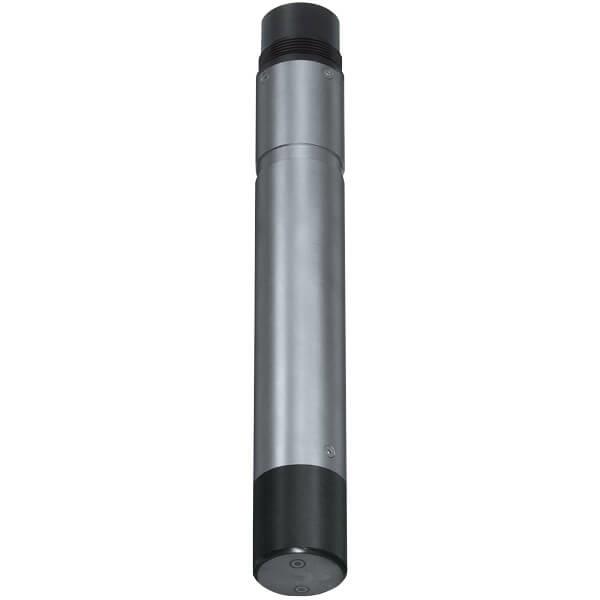

    TetraCon® 700 IQ – digital 4 electrode conductivity measuring cell with flow-free operation, especially with high conductivity:
    •Very large measuring range from 10 µS/cm … 500 mS/cm
    •Highest linearity and very insensitive against contamination by 4-electrode system
    •Rapid temperature compensation by integrated temperature sensor
    This measuring technique has proven itself over the years and offers an interference-free operation, also and foremost at high conductivity values. The 4-electrode measuring cell is very insensitive to contamination. Based on the pressure resistance of up to 10 bars, there is nothing to stop you from mounting into pipes or on lines.

    The sea water model includes the sensor for use in special media: All wetted parts are made of titanium and plastic and are therefore extremely resistant to corrosion.
  • Specifications

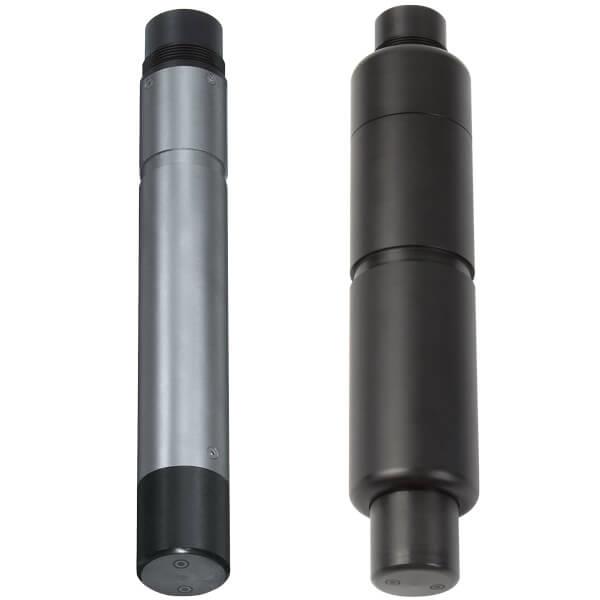

    Model

    TetraCon® 700 IQ

    TetraCon® 700 IQ SW*

    Order No.

    302500

    302501

    * SW: Sensor as sea water model (with plastic arming (POM))

    Measuring method

    4-electrode cell

    Measuring range

    10 µS/cm - 500 mS/cm
    SAL: 0 … 70
    TDS: 0 … 2000 mg/l

    Cell Constants

    K = 0.917 cm-1, ±1.5% (in free solution)
    K = 0.933 cm-1, TetraCon® 700 IQ with EBST 700-DU/N flow-thru adapter

    K = 0.917 cm-1, ±1.5% (in free solution)

    Resolution

    Depending on measuring range

    Temp. measurement

    -5 ... +60 °C (23 ... 140 °F); NTC

    Temp. compensation

    linear: 32 ... 140 °F (0 ... +60 °C)
    nonlinear: +5 °C ... 35 °C (acc. to DIN 38404)
    nonlinear: +35 °C --- +60 °C (acc. to WTW procedure)

    Pressure Resistance

    10 bar

    Ambient Conditions

    -5 ... +60 °C (23 ... 140 °F)

    Electrical connections

    2-wire shield cable with quick fastener to sensor

    Electromagnetic Compatibility

    EN 61326, Class B, FCC Class A;
    Intended for indispensable operation

    Certifications

    CE, cETL, ETL

    Mechanical

    Sensor head: PVC
    Sensor body: V4A stainless steel 1.4571
    Protection rating IP 68

    Weight (without cable)

    Approx. 1.46 lb (660 g)

    Approx. 2.58 lb (1,170 g)

    Warranty

    2 years for defects in quality

Downloads

TetraCon 700 (English)

Conductivity cell
Operating manual

TetraCon 700 (German)

Leitfähigkeitsmesszelle,
Bedienungsanleitung

TetraCon 700 IQ F (English)

IQ Sensor Net conductivity sensor
Operating manual
