IQ sensor to determine the sludge level - WTW

IQ sensor to determine the sludge level - WTW

  • SKU: 481200
Request a Quote
  • Description

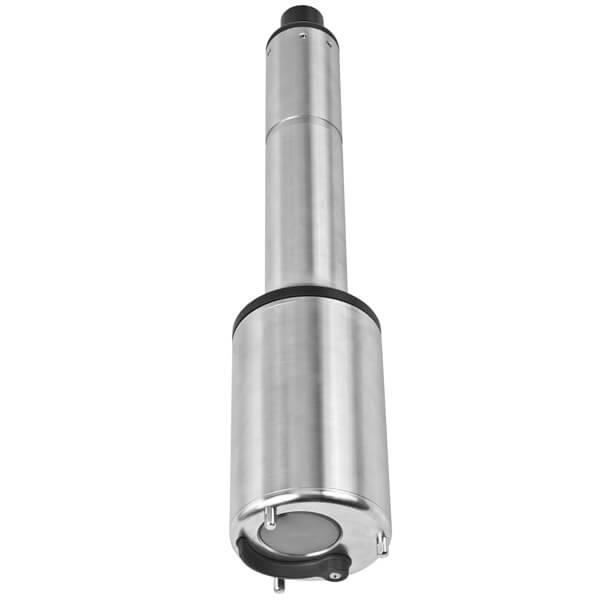

    Digital sludge level sensor, connectable to the IQ Sensro Net
    Unique on the market: Sludge level measurement with maintenance-free cleaning system - the FL 700 IQ with :mart signal processing

    •Ready to use

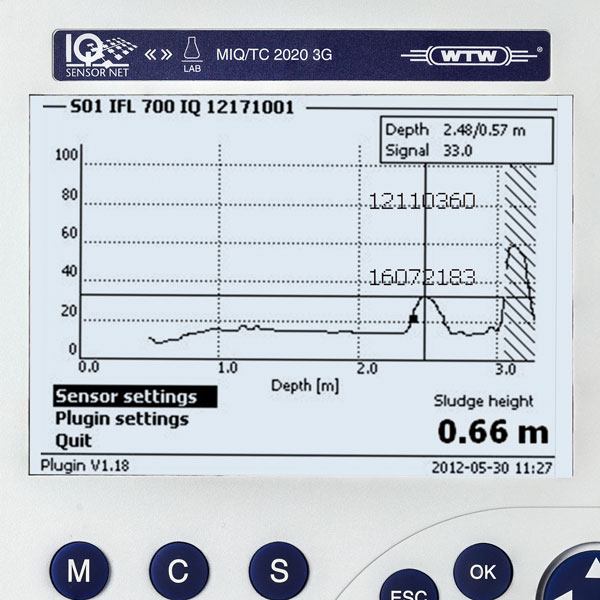

    •Detailed echo profile presentation on the display
    •Maintenance-free cleaning system
    Smart signal processing - the sensor has a special pattern detection feature and can therefore distinguish between the sludge level and undesired signals. This always results in reliable measuring results.

    Reliable ultrasonic measurement principle

    The IFL 700 IQ is based on the ultrasonic measuring principle. Here, the sludge level is determined via the runtime of the echo. Contrary to optical sludge level measuring systems, this continuous measuring principle has important advantages. It offers low investment and operating costs, a lower maintenance effort as well as higher data availability.

    Unique on the market - maintenance-free cleaning system

    The IFL 700 IQ has a contact-free cleaning system made of high quality material, like titanium. Based on its technical design, this system is maintenance-free. The sensor is equipped with an automatic detection feature that determines the cleaning interval autonomously.
  • Specifications

    Model

    IFL 700 IQ

    IFL 701 IQ

    Order No.

    481200

    481201

    Measuring method

    Ultrasound echo measurement

    Measuring range and Resolution

    0.4 m – 15 m 0.01 m

    Accuracy

    0.1 m

    Immersion depth

    Min. 5 cm; max. 3 m

    Pressure Resistance

    0.3 bar
    The sensor with connected SACIQ cable complies with the requirements of article 3(3), 97/23/EU guideline

    Ambient Conditions

    Medium: 0 °... +50 °C, Storage and transport: –5° … +50°C

    Electrical connections

    2-wire shield cable with quick fastener to sensor

    Electromagnetic
    Compatibility

    EN 61326, Class B, FCC Class A;
    Intended for indispensable operation

    Certifications

    CE, cETL, ETL

    Equipment safety, Standards

    EN 61010-1; UL 61010-1; CAN/CSA C22.2#61010-1

    Mechanical

    Shaft and baseplate: V4A stainless steel 1.4571
    Plug head and transition unit: POM
    Ultrasound unit: PVC-C
    Protection rating: IP68
    Cleaning system: Grade 2 Titanium (shaft), Grivory

    Shaft and baseplate: V4A stainless steel 1.4571
    Plug head and transition unit: POM
    Ultrasound unit: PVC-C
    Protection rating: IP68

    Weight (without cable)

    Approx. 3.6 kg (7 lb)

    Warranty

    2 years for defects in quality

Downloads

IFL 700 IQ; IFL 701 IQ (English)

IQ Sensor Net Sludge level sensor
Operating manual

IFL 700 IQ; IFL 701 IQ (German)

IQ Sensor Net Schlammpegelsensor,
Bedienungsanleitung

IQ SENSOR NET

Flyer, German, 999102D
"IQ SENSOR NET - das System"

IQ SENSOR NET

Flyer, English, 999102US
"IQ SENSOR NET - the system"
