Multi-parameter portable meter MultiLine® Multi 3510 IDS

  • SKU: 2FD350
Request a Quote
  • Description

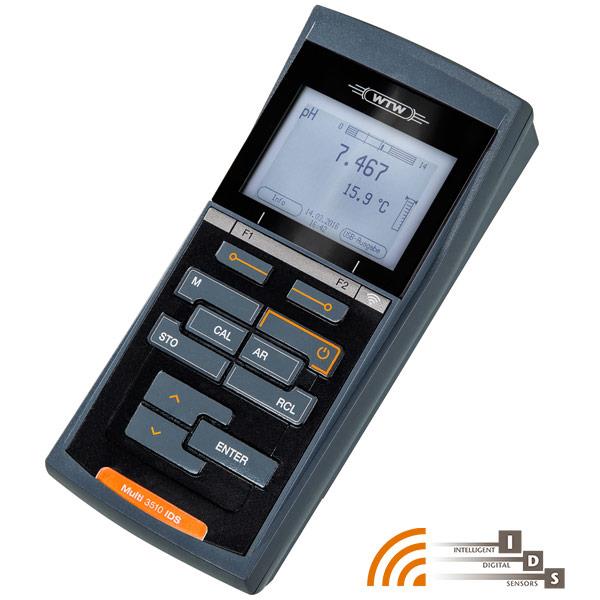

    MultiLine® 3510 IDS - Digital multiparameter portable meter

    MultiLine® 3510 IDS: High-quality portable digital IDS multi-parameter instrument with a universal measurement input for starting with digital measurement technology.

    Variants
    Art.-No. Name Description

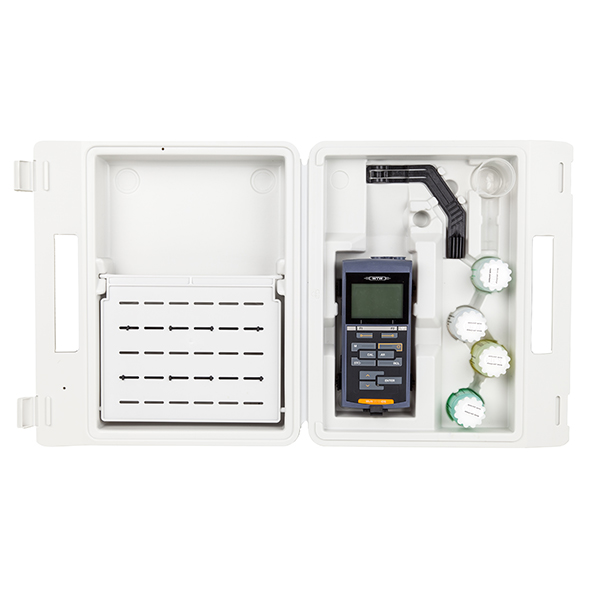

    2FD350 MultiLine® 3510 IDS Single unit in field case with buffers 4 and 7, 0,01 mol/l KCl conductivity standard, short instruction manual, CD-ROM including software, batteries, USB cable
    2FD351 MultiLine® 3510 IDS Set 1 Single unit with SenTix® 940 in field case with buffers 4 and 7, 0,01 mol/l KCl conductivity standard, short instruction manual, CD-ROM including software, batteries, USB cable
    2FD353 MultiLine® 3510 IDS Set 3 Single unit with TetraCon® 925 in field case with short instruction manual, CD-ROM including software, batteries, USB cable
    2FD354 MultiLine® 3510 IDS Set 4 Single unit with FDO® 925 in field case with short instruction manual, CD-ROM including software, batteries, USB cable
    2FD35U MultiLine® 3510 IDS Set KS1 Single unit in field case with buffers 4 and 7, 0,01 mol/l KCl conductivity standard, short instruction manual, stand, beaker, CD-ROM including software, batteries, USB cable, armoring SM Pro


    Highlights:

    • One unit for up to four parameters: pH/ORP, dissolved oxygen, conductivity, turbidity
    • QSC function for optimum tracking of the sensor quality
    • Wireless ready

    The Multi 3510 IDS compact portable multi-parameter instrument for applications with digital IDS pH/ORP electrodes, dissolved oxygen sensors, conductivity cells or turbidity sensors. Calibration records and additional information are stored in the sensor. Well laid-out menus make the operation safe and easy. With a wide range of electrodes almost every application including depth measurement down to 100 m will be covered in the field and in the laboratory. The delivery also contains the MultiLab® Importer software for data acquisition via Excel®.

    The scope of delivery includes the MultiLab® Importer to import data via Excel® as well as the MultiLab® User (user administration).

      Overview-page portable IDS meters

    Learn more about pH sensors:

     Blog: Which pH electrode do I need?

     Blog: What is pH?

     Blog: Calibration and adjustment of a pH electrode

  • Specifications

Downloads

  • Manuals

    Multi 3510 IDS (German)

    Taschengerät,
    Bedienungsanleitung

    Multi 3510 IDS (English)

    Digital meter for digital IDS-Sensors,
    Operating Manual

    Multi 3510 IDS (French)

    Digital meter for digital IDS-Sensors,
    Operating Manual

    Multi 3510 IDS (Spanish)

    Digital meter for digital IDS-Sensors,
    Operating Manual

    OxiTop®-IDS Multi 3630/3620 IDS (German)

    Wireless operation of OxiTop-IDS measuring heads,
    Operating Manual

    OxiTop®-IDS Multi 3630/3620 IDS (English)

    OxiTop-IDS Multi 3630/3620 IDS,
    Operating Manual

  • Handbooks / Whitepaper

    pH Handbook (English)

    A guide with helpful practical tips

    Download pH Handbook

    Contents:

    • Basic concepts of potentiometry and pH measurement
    • Structure of pH electrodes
    • Potentiometry of the pH electrode
    • Buffer solutions and safety in pH measurement
    • Measuring equipment and measuring set-up
    • Practical pH measurement
    • Recommendations for use, maintenance and care of electrode

    Conductivity Handbook (English)

    A guide with helpful practical tips

    Download Conductivity Handbook

    Content:

    • Fundamentals - conductivity
    • Calibration and analytical quality assurance
    • Measurement and analytical quality assurance
    • New measurement technologies and specific applications
    • Optical oxygen measurement and more...
  • Flyers / Brochures / Catalogues

    MultiLine IDS (Flyer, German, 999180D)

    Flyer, 8 Seiten, German, 999180D,
    "Tragbare Multiparametermessung von pH, gelöstem Sauerstoff, Leitfähigkeit und Trübung"

    MultiLine IDS (Flyer, French, 999180FR)

    Flyer, 8 Pages, French, 999180FR,
    "Portable multiparameter measurement of pH, dissolved oxygen, conductivity and turbidity"

  • Software

    Multi 3510 - Windows Software Firmware Update - V2.17

    Because of continuous improvement of internal performance we always recommend using the latest firmware version. Download and installation notes: Please note: The cable for the serial USB interface is part of the delivery. For proper operation of the USB interface a special driver is required. For installation of this driver please read below.

    Version history – innovations

    V2.17: Solving a problem with the user administration
    V2.15: -General optimizations and minor bug fixes
    V2.14: Minor updates and optimizations with the usage of the VisoTurb® 900-P
    V2.13: -Update recommended; solves a problem with oxygen measurement of the last version.
    V2.12: -Solves a problem when switching the meters on or off: If the meter does not turn on, first perform a reset: Please press simultaneously “Menu – Enter” and “On/Off”, this will boot the meter automatically (without losing data).
    V2.11: -General optimizations and minor bug fixes
    V2.10: -General optimizations and minor bug fixes

    MultiLab Importer-Setup32

    Software

    Version history – innovations

    V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

    • Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

    V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data)

    • New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models
    • General improvements

    V1.23: Enhancements for MultiLab Importer

    • New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)
    • Enhancement at transfer of electrochemical measurement results.

    MultiLab Importer-Setup64

    Software

    Version history – innovations

    V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

    • Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

    V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data))

    • New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models
    • General improvements

    V1.23: Enhancements for MultiLab Importer

    • New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)
    • Enhancement at transfer of electrochemical measurement results.

    MultiLine® Multi 3620 IDS/3630 IDS, Multi 36x0- Firmware Update V3.14

    Download and installation notes:

    Before installation please read the instruction manual.
    System Requirements:
    Microsoft Windows 2000, Windows Server 2003, Windows XP, Windows Vista or Windows 7

    Version history – innovations:

    Version V3.14:

    • OxiTop-IDS: Fixed a bug when inserting spaces in the set description
    • OxiTop-IDS : Problem with multiple creation of Cal-Sets fixed
    • Fixed a bug that caused the device to crash after AutoPrt.

    Version V3.13:

    • The authorizations for MultiLab User can also be assigned without a connected sensor

    Version V3.12:

    • Detection of the conductivity measuring cell 4320W (YSI) has been implemented

    Version V3.11:

    • Fixed a bug with manual data saving (missing data).
    • Revision of the AutoRead functionality when saving manually. "Frozen values" (HOLD function) are retained until a new measurement is initiated.
    • AutoSto extension: If desired, the measurement can be resumed automatically if there is a change in the sensor configuration or a temporary sensor failure has been resolved.

    V3.01: Allows the conventional operation of OxiTop®-IDS heads which had been working at an IDS Gate.
    V3.00: Update for connecting OxiTop®-IDS measuring heads

    Software Update Windows 10 VCP Driver

    VCP Driver,
    MultiLine, inoLab, ProfiLine, HandyLab and Lab,
    Software Update for Windows 10

    MultiLine® Multi 3620 IDS/3630 IDS, inoLab® Multi 9620 IDS/9630 IDS - Firmware Update IDS WLM-M V3.01

    Download and installation notes:

    Before installation please read the instruction manual.
    System Requirements:
    Microsoft Windows 2000, Windows Server 2003, Windows XP, Windows Vista or Windows 7

    Version history – innovations:

    V3.01: Allows the conventional operation of OxiTop®-IDS heads which had been working at an IDS Gate.
    V3.00: Update for connecting OxiTop®-IDS measuring heads
